Protective zinc coatings applied through hot dip galvanizing provide long-term corrosion protection for structural steel and fabricated components. During fabrication, shipping, handling, or jobsite installation, however, localized coating damage may occasionally occur. Small uncoated areas or mechanical damage can expose the underlying steel and require repair to restore corrosion protection.
Repairing damaged or uncoated areas of galvanized coatings is governed by recognized industry standards. The American Galvanizers Association provides an overview of these repair practices in the following knowledgebase article:.
Expanding on that guidance, this article explains when repair is appropriate, what ASTM standards require, and how engineers, inspectors, and contractors can ensure that repaired areas maintain the intended corrosion protection.
Why Localized Repair May Be Necessary
Although hot dip galvanizing produces a durable metallurgically bonded coating, certain situations can create small damaged areas after galvanizing is complete.
Common causes include:
- Mechanical impact during transport or installation
- Grinding or field modifications
- Weld repairs performed after galvanizing
- Handling equipment contact points
- Small areas missed due to surface contaminants
In most cases, these areas are limited in size and can be repaired without requiring the entire component to be regalvanized.
ASTM Standards Governing Galvanized Coating Repair
Repair procedures for damaged galvanized coatings are primarily defined by ASTM A780, which outlines acceptable field repair methods.
ASTM A780 establishes three primary repair approaches:
- Zinc rich paints
- Zinc solder (zinc based alloys)
- Zinc metal spray (thermal spray)
Each method restores corrosion protection by applying zinc or zinc rich material to the exposed steel.
Repair areas must meet specified coating thickness requirements to ensure protection comparable to the surrounding galvanized coating.
Maximum Allowable Repair Area
Standards limit how much of a galvanized surface can be repaired rather than requiring reprocessing.
Typical guidelines specify that repair areas:
- Must be relatively small and localized
- Cannot exceed a defined percentage of the total surface area
- Must not compromise the overall integrity of the coating
Large areas of missing coating generally require re galvanizing rather than repair.
These limits ensure that repairs supplement the galvanized coating rather than replacing it.

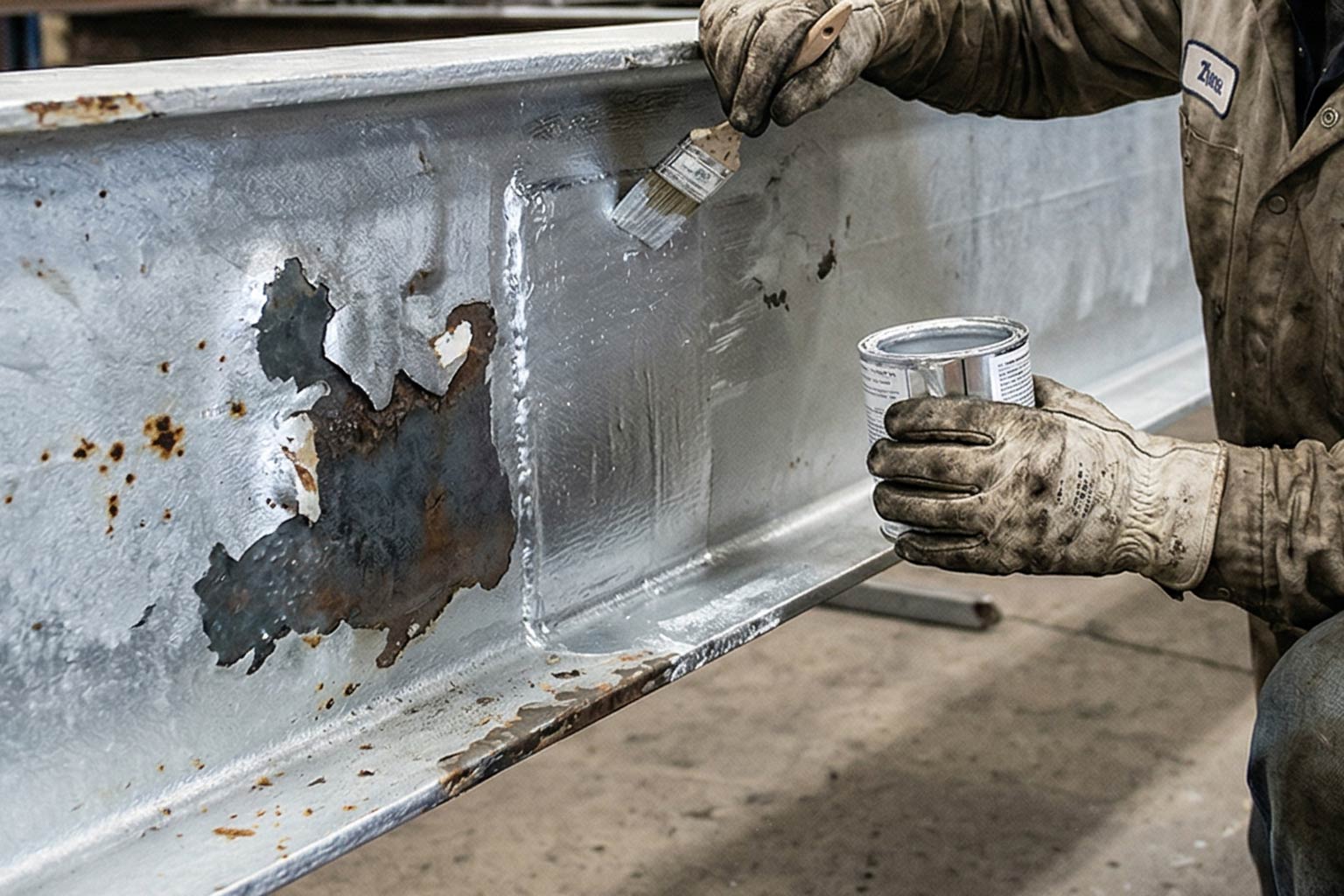

Zinc Rich Paint Repairs
Zinc rich paint is one of the most common repair methods because it is widely available and easy to apply in the field.
These coatings contain a high percentage of metallic zinc dust suspended in a binder.
Key characteristics include:
- Cathodic protection through zinc content
- Brush or spray application
- Fast field installation
However, zinc rich paints must meet specific zinc content requirements to ensure adequate corrosion protection.
Surface preparation is critical before application.
Zinc Metal Spray (Thermal Spray)
Thermal spraying applies molten zinc particles to the prepared steel surface using specialized equipment.
Advantages include:
- High zinc content
- Strong mechanical bonding
- Thick protective coatings
This method is commonly used for larger repair areas or when coating thickness must closely match the surrounding galvanizing.
Proper surface preparation such as abrasive blasting is required before thermal spray application.
Zinc Based Solders
Zinc based solders provide another approved repair technique.
These alloys are applied using heating methods that melt the repair metal onto the steel surface.
Solder repairs create:
- Metallurgical bonding
- Dense zinc rich coatings
- Durable localized protection
However, the process requires controlled heating and skilled application.
Surface Preparation Before Repair
Proper preparation of the damaged area is essential for successful repair.
Preparation typically includes:
- Removing corrosion products
- Cleaning oils or contaminants
- Roughening the exposed steel surface
Surface preparation ensures strong bonding between the repair material and the steel substrate.
Without adequate preparation, repair coatings may fail prematurely.
Inspection of Repaired Areas
After repair, inspectors should verify that repaired areas meet the required standards.
Inspection typically evaluates:
- Coating thickness
- Adhesion of the repair material
- Complete coverage of exposed steel
Thickness of the repair coating must generally meet or exceed the minimum thickness specified for the surrounding galvanized coating.
Proper inspection ensures the repaired area performs as intended.
Engineering Considerations for Repair vs Regalvanizing
In some situations, it may be more appropriate to remove the existing coating and reprocess the component through the galvanizing process.
Factors influencing this decision include:
- Size of the damaged area
- Critical performance requirements
- Structural safety considerations
- Coating uniformity needs
Engineering judgment should determine whether localized repair or full re galvanizing provides the best long term solution.
Coordinating Repairs with Galvanizing Experts
Hot dip galvanizing is designed to provide decades of corrosion protection with minimal maintenance. When coating damage occurs, selecting the correct repair method ensures that long term performance is maintained.
If you have questions about acceptable repair methods, inspection criteria, or coating damage evaluation, our team can help review your project requirements.
For technical guidance or project consultation, please reach out through our contact page.
Proper coordination helps ensure galvanized coatings continue performing as intended throughout the service life of the structure.
Localized damage to hot dip galvanized coatings can be effectively repaired when appropriate methods and standards are followed. ASTM A780 outlines accepted repair techniques including zinc rich paint, thermal spray zinc, and zinc solder. With proper surface preparation and inspection, these repair methods restore corrosion protection and maintain the performance of galvanized steel structures.
Frequently Asked Questions About Repairing Galvanized Coatings
What standard governs repair of damaged galvanized coatings?
ASTM A780 defines acceptable repair methods for damaged or uncoated areas on hot dip galvanized steel. It outlines repair materials, surface preparation requirements, and thickness criteria.
Can small damaged areas of galvanized coating be repaired in the field?
Yes. Small localized areas can typically be repaired using approved methods such as zinc rich paint, zinc solder, or thermal spray zinc.
How large can a repair area be on galvanized steel?
Repair areas must remain relatively small and localized. If damage exceeds allowable limits defined by specifications, the component may require re galvanizing instead of repair.
Does zinc rich paint provide corrosion protection?
Yes. Zinc rich paints contain a high percentage of metallic zinc which provides sacrificial corrosion protection similar to galvanized coatings.
What preparation is required before repairing galvanized steel?
The exposed steel surface must be cleaned of contaminants and corrosion products. In many cases the surface must be roughened to promote adhesion of the repair coating.
Can welding after galvanizing require coating repair?
Yes. Welding performed after galvanizing removes the zinc coating in the weld area. These areas must be repaired using approved zinc rich methods.
How is the thickness of repaired areas verified?
Inspectors typically measure coating thickness using magnetic gauges to confirm that the repaired area meets minimum specification requirements.
When should a component be re galvanized instead of repaired?
If coating damage is extensive or affects large areas of the steel surface, full stripping and re galvanizing may provide better long term protection.
