Peeling or flaking on galvanized steel is one of the more serious appearance conditions that can raise concern during inspection. Unlike typical variations in color or texture, peeling may indicate a breakdown in the bond between the zinc coating and the steel surface.

At V&S Galvanizing, we help customers distinguish between normal surface conditions and issues that require further evaluation. The American Galvanizers Association provides technical background on coating peeling, which we expand on here to explain what causes it, how to assess it, and what steps should be taken if it occurs.

What Is Peeling in Galvanized Coatings?

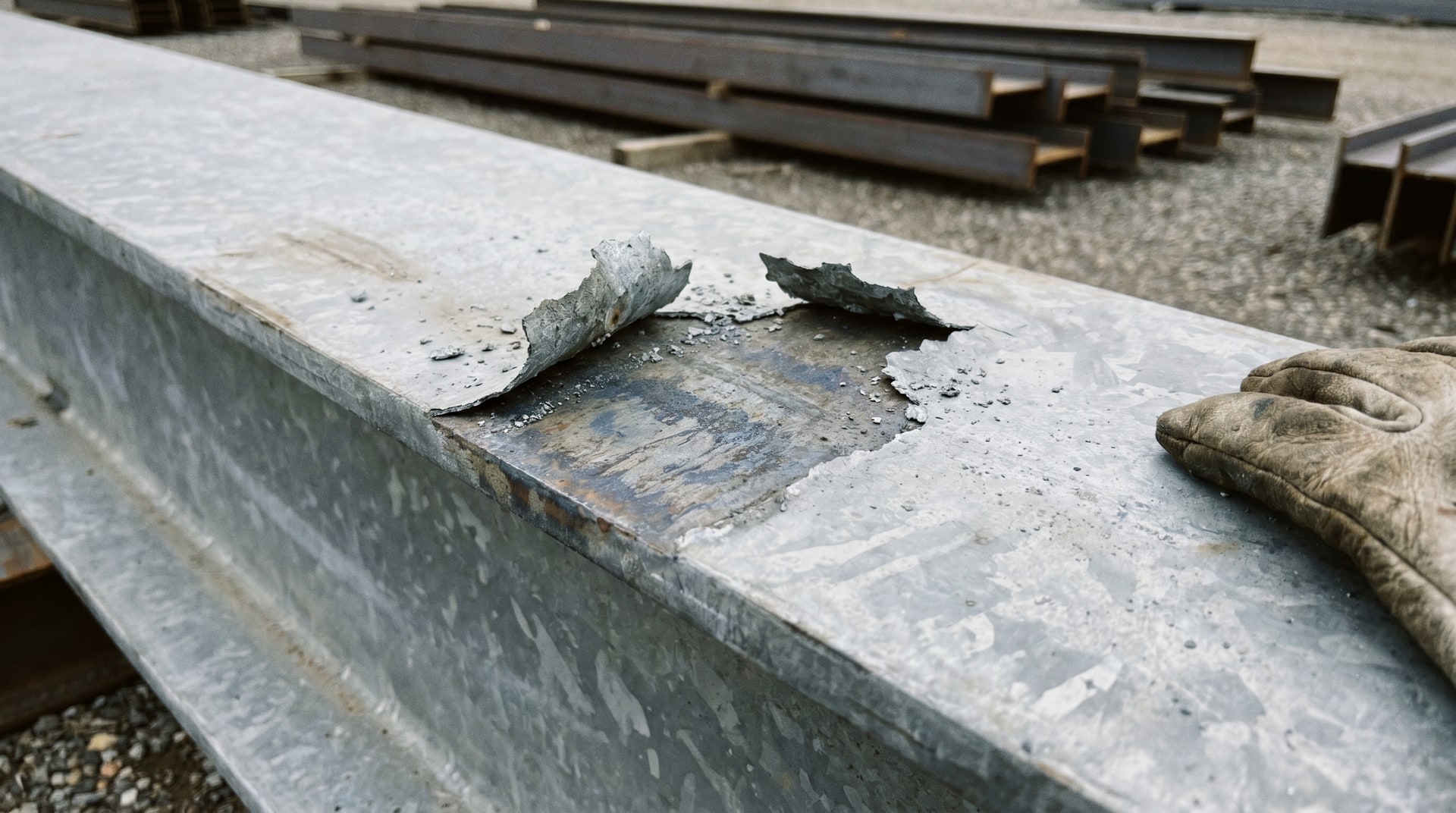

Peeling refers to the separation of the zinc coating from the steel substrate. This is different from minor surface irregularities or cosmetic variation.

Peeling may appear as:

• Flaking layers of zinc lifting from the surface
• Sections where the coating detaches entirely
• Areas exposing bare steel beneath the coating

Because hot dip galvanizing creates a metallurgical bond, peeling is not a normal condition and should be evaluated carefully.

How Galvanized Coatings Normally Bond to Steel

During the galvanizing process, molten zinc reacts with the steel to form a series of zinc-iron alloy layers.

This results in:

• A metallurgical bond between coating and steel
• Strong adhesion compared to paint or plating
• A coating that is integral to the steel surface

When this bond forms correctly, the coating does not peel under normal conditions.

Common Causes of Peeling

Peeling is typically associated with conditions that interfere with proper bonding or introduce stresses into the coating.

Surface Contamination

Contaminants such as:

• Oil
• Grease
• Paint
• Marking compounds

Can prevent the zinc from bonding to the steel surface during galvanizing.

If these materials are not fully removed during preparation, localized adhesion failure may occur.

Improper Surface Preparation

The galvanizing process includes cleaning and pickling steps, but certain conditions may limit their effectiveness.

Examples include:

• Heavy mill scale
• Deep surface contamination
• Residues trapped in fabrication details

If the steel surface is not fully activated, the coating may not bond properly.

Mechanical Damage After Galvanizing

Peeling can also occur after galvanizing due to:

• Impact during handling
• Abrasion during transport
• Improper storage conditions

In these cases, the coating may be physically separated from the steel rather than failing due to process issues.

Excessive Coating Thickness or Brittleness

In some cases, highly reactive steels can produce thicker, more brittle coatings.

These coatings may:

• Be more prone to mechanical damage
• Crack or separate under stress
• Show flaking under impact or deformation

This is typically related to steel chemistry rather than process failure.

Fabrication and Design Factors

Certain fabrication details can increase the likelihood of coating stress or adhesion issues:

• Sharp corners or edges
• Complex geometries
• Residual stresses in the steel

These factors may contribute to localized peeling if combined with other conditions.

How Peeling Is Evaluated

Peeling is not evaluated based on appearance alone. Inspection should focus on:

• Extent of coating separation
• Location and function of the affected area
• Whether bare steel is exposed
• Compliance with applicable ASTM specifications

Adhesion testing or further inspection may be required in some cases.

When Peeling Requires Action

Because peeling indicates a loss of coating adhesion, it often requires corrective action.

This is especially true when:

• Bare steel is exposed
• The affected area is large
• The component is in a corrosive environment
• Structural performance could be impacted

The appropriate response depends on the severity and extent of the issue.

Repair and Remediation Options

If peeling is localized, repair methods may be used to restore protection.

Common approaches include:

• Removing loose coating
• Preparing the surface
• Applying approved zinc-rich repair materials

For more extensive issues, reprocessing or re-galvanizing may be considered.

Preventing Peeling

Preventing peeling starts before galvanizing begins.

Best practices include:

• Ensuring proper surface preparation
• Removing contaminants before fabrication
• Using appropriate steel chemistry where possible
• Handling materials carefully after galvanizing

Attention to these factors reduces the risk of adhesion issues.

Work With a Team That Helps You Evaluate Coating Conditions

Peeling is not a typical condition in galvanized coatings, and when it occurs, it should be taken seriously. Proper evaluation helps determine whether the issue is localized, repairable, or indicative of a larger concern.

At V&S Galvanizing, we work with customers to review coating performance, identify root causes, and recommend the right path forward based on standards and real-world conditions.

If you have questions about coating adhesion, inspection results, or how to address peeling, reach out to our team through our contact page.

Peeling of galvanized coatings indicates a breakdown in the bond between zinc and steel and is not considered a normal variation. It is typically caused by surface contamination, preparation issues, mechanical damage, or steel chemistry effects. Proper evaluation and corrective action ensure that corrosion protection is restored and long-term performance is maintained.

Frequently Asked Questions About Peeling on Galvanized Steel

Is peeling normal in galvanized coatings?

No. Because galvanizing forms a metallurgical bond, peeling is not a normal condition and should be evaluated.

What causes galvanized coatings to peel?

Common causes include surface contamination, improper preparation, mechanical damage, or highly reactive steel producing brittle coatings.

Can peeling be repaired?

Yes, if the affected area is localized. Repairs typically involve removing loose coating and applying zinc-rich materials according to accepted standards.

Does peeling expose the steel to corrosion?

Yes. Once the coating separates, the underlying steel is exposed and can begin to corrode if not repaired.

How is peeling different from flaking or appearance variation?

Peeling involves loss of adhesion, while many surface variations are cosmetic and do not affect performance.

Can steel chemistry contribute to peeling?

Yes. Highly reactive steels may produce thicker coatings that are more brittle and susceptible to mechanical damage.

Should peeling areas be inspected further?

Yes. Inspection should determine the extent of the issue and whether repair or reprocessing is required.

How can peeling be prevented?

Proper surface preparation, clean fabrication practices, and careful handling after galvanizing are key to preventing peeling.

‍
