Galvanizing Oversized Utility Infrastructure
Utility poles, transmission tower components, and large-diameter tubular structures frequently exceed the dimensional capacity of standard hot-dip galvanizing kettles. Progressive dipping—sequential immersion of each article end with an overlapping coating zone—enables galvanizing of structures approaching twice the kettle length. While this technique successfully extends galvanizing capacity, it introduces specific technical challenges requiring careful attention to process methodology and design details. Understanding the historical development of progressive dipping practices, the mechanisms of potential failure modes, and current industry standards ensures successful corrosion protection for oversized utility infrastructure.
Progressive Dipping Process Fundamentals
Progressive dipping leverages the fact that if at least half an article's length can be accommodated within the galvanizing kettle, sequential processing of each end produces complete coating coverage with a small overlapping zone.
Standard Kettle Dimensions
North American galvanizing facilities maintain kettles of varying dimensions to accommodate diverse product sizes. Typical kettle specifications include:
Length: Average 40 feet, with 50-60 foot kettles increasingly common at facilities serving utility and infrastructure markets
Depth: Generally 6-12 feet, varying by facility specialization and regional market demands
Width: Typically 5-8 feet, adequate for most tubular pole diameters and structural configurations
These dimensions establish the fundamental size constraints governing what can be galvanized in a single immersion versus requiring progressive dipping.
Progressive Dip Sequence
The progressive dipping process involves multiple distinct steps for each article end:
First End Processing:
- Surface Preparation: Chemical cleaning (degreasing and pickling) removes mill scale, rust, and contaminants from the first half of the article
- Fluxing: Application of zinc ammonium chloride flux prepares the cleaned steel surface for zinc metallurgical bonding
- Galvanizing Immersion: Partial immersion in molten zinc at approximately 840°F coats the prepared end
- Withdrawal and Drainage: Controlled extraction allows excess zinc drainage and initial coating solidification
- Cooling: The coated end cools while the article is repositioned for second end processing
Second End Processing:
- Re-cleaning: The previously unprocessed end undergoes complete surface preparation
- Re-fluxing: Fresh flux application to the cleaned section
- Overlapping Immersion: The second end is immersed with several feet of overlap into the previously galvanized zone, ensuring no uncoated gap exists between the two dipping zones
- Final Withdrawal: Complete article removal from the galvanizing process
- Final Cooling: Entire article cools to ambient temperature
The overlap zone—typically 2-4 feet depending on article dimensions and galvanizer practice—receives double processing through both dipping sequences.
Overlap Zone Characteristics
The region where progressive dipping sequences overlap exhibits distinctive metallurgical and visual characteristics resulting from dual exposure to the galvanizing process:
Enhanced Coating Thickness
The overlap zone undergoes zinc immersion twice, producing coating thickness substantially greater than single-dipped areas. The first immersion creates a standard coating structure with multiple zinc-iron alloy layers topped by pure zinc. When this previously galvanized surface re-enters the molten zinc bath during the second dipping sequence, additional coating builds on the existing structure.
Coating thickness in overlap zones commonly measures 50-100% greater than adjacent single-dipped areas, easily exceeding ASTM A123 minimum requirements by substantial margins.
Visual Appearance Differences
Several factors contribute to the overlap zone's distinctive appearance:
Color Variation: The overlap area typically appears darker gray compared to surrounding coating due to the modified surface chemistry and texture from double processing.
Surface Texture: A visible line or ridge often marks the transition between single-dipped and double-dipped regions, resulting from the coating edge formed during first-end withdrawal that becomes incorporated into the second dipping sequence.
Weathering Behavior: The thicker coating and modified surface structure in the overlap zone may weather differently than adjacent areas, maintaining visual distinction even after years of service exposure.
Spangled Appearance: Zinc crystallization patterns (spangle) may differ in the overlap zone compared to single-dipped regions due to different thermal histories.
Performance Implications
Despite visual distinctions, properly executed progressive dipping produces functionally equivalent corrosion protection across the entire article length:
Extended Service Life in Overlap Zone: The greater coating thickness provides proportionally longer corrosion protection in the overlap region compared to single-dipped areas. This local service life extension presents no functional disadvantage.
Uniform Structural Integrity: The coating's adhesion and mechanical properties remain adequate throughout, including the transition zones.
No Preferential Corrosion: Under normal atmospheric exposure, the overlap zone does not exhibit accelerated corrosion compared to adjacent areas. The darker appearance does not indicate reduced protection.
Aesthetic Remediation Options
For applications where the visible overlap line proves aesthetically unacceptable:
Grinding or Buffing: Mechanical smoothing of the transition ridge and excessive thickness reduces visual prominence. This remediation maintains adequate coating thickness provided the ground areas retain coating exceeding minimum specifications.
Strategic Positioning: Design articles so overlap zones occur at locations with reduced visibility or where field connections will obscure the transition.
Acceptance Criteria: Project specifications should explicitly address whether visible overlap zones are acceptable or require remediation, preventing post-galvanizing disputes.
Historical Context: The Arizona Transmission Pole Failure
Understanding progressive dipping risks requires examining a significant historical failure that shaped modern industry practices. In 1988, Arizona Public Service (APS) discovered severe premature corrosion in galvanized transmission tower poles that had been in service for only 11 years—dramatically short of the 50+ year service life typical for galvanized utility structures in Arizona's arid environment.
Failure Characteristics
Inspection revealed alarming deterioration patterns:

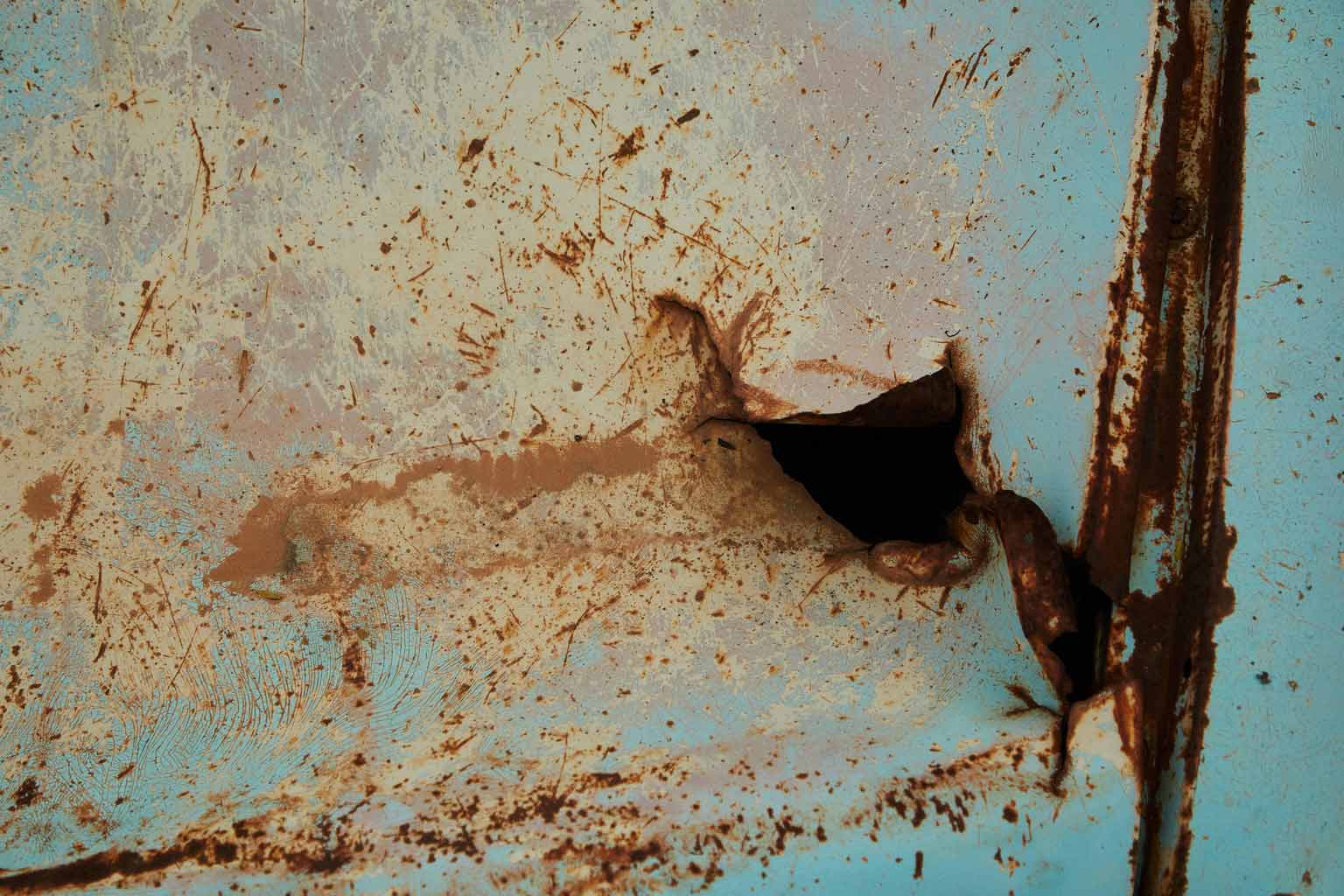

Through-Wall Corrosion: Multiple poles exhibited complete penetration of the steel wall thickness, compromising structural integrity.
Internal Origin: The corrosion initiated from the interior surfaces of the tubular poles rather than the external environment-exposed surfaces.
Variable Severity: Corrosion intensity varied among poles, with the most severe damage occurring on sections where end plates had been welded to tubes.
Widespread Occurrence: The problem affected a significant percentage of the progressively dipped poles rather than isolated failures.
Environmental Inconsistency: The severe corrosion occurred in Arizona's low-corrosivity climate, where properly galvanized structures typically perform exceptionally well for decades.
Root Cause Analysis
Detailed investigation identified flux entrapment as the primary failure mechanism, enabled by the combination of inadequate design and wet galvanizing process methodology:
Flux Entrapment Chemistry and Mechanisms
Flux entrapment represents one of the most serious potential failure modes in hot-dip galvanizing of tubular products. Understanding the chemistry and mechanisms clarifies prevention strategies.
Flux Composition and Function
Galvanizing flux—typically zinc ammonium chloride (ZnCl₂·2NH₄Cl)—serves critical functions in the galvanizing process:
Oxide Reduction: Flux chemically reduces any iron oxides remaining after pickling that form during the interval between pickling and galvanizing immersion.
Surface Wetting: Flux promotes molten zinc wetting and spreading across the steel surface, enabling metallurgical bonding.
Protection from Re-Oxidation: The flux layer prevents atmospheric oxygen from re-oxidizing the cleaned steel surface between pickling and zinc immersion.
Flux melts at relatively low temperatures (approximately 400°F) and remains molten throughout immersion in 840°F zinc baths, floating to the surface or being mechanically removed during article withdrawal.
Flux Entrapment in Tubular Products
Tubular structures present specific challenges for complete flux removal:
Hollow Interior Volumes: Large internal spaces can trap flux solutions during the fluxing and galvanizing stages.
Inadequate Drainage: Without properly sized and positioned drainage holes, flux cannot escape from interior cavities before zinc immersion.
Progressive Dipping Complications: When the first-dipped end solidifies with flux residues inside, the second dipping operation may introduce additional flux to the interior without providing opportunity for the combined flux mass to drain.
End Plate Obstruction: Welded end plates or caps that seal tubular ends eliminate natural drainage pathways, guaranteeing flux entrapment if present inside before sealing.
Corrosive Chemistry of Entrapped Flux
Flux residues entrapped inside tubular structures create aggressively corrosive conditions:
Hygroscopic Nature: Flux salts readily absorb atmospheric moisture, even in arid climates. Condensation within tubular interiors provides additional moisture for flux dissolution.
Acidic Solutions: When dissolved in moisture, flux components form acidic solutions (pH typically 2-4) that aggressively attack steel and zinc coatings.
Continuous Corrosion Cell: The combination of acidic electrolyte, oxygen access through vents, and metal surfaces creates persistent electrochemical corrosion cells.
Corrosion Product Mobility: Dissolved flux solutions mixed with corrosion products can migrate along tube interiors, spreading corrosion far from the initial flux entrapment location.
Accelerated Attack: The aggressive environment produced by flux residues accelerates steel corrosion rates by orders of magnitude compared to normal atmospheric exposure.
The Wet Galvanizing Process and Its Vulnerabilities
The Arizona pole failures involved wet galvanizing—a process methodology largely abandoned in North America but critical to understanding historical failures and remaining international practices.
Wet Galvanizing Methodology
In wet galvanizing, molten flux floats as a layer on the molten zinc bath surface. The galvanizing process involves:
- Surface Cleaning: Degreasing and pickling remove contaminants and scale
- Direct Immersion: The cleaned article passes directly through the floating flux blanket as it enters the zinc bath
- Flux Blanket Displacement: The immersed article displaces the flux layer, which is paddled aside
- Zinc Coating Formation: Standard zinc-iron reactions occur during immersion
- Withdrawal Through Flux: During extraction, the article again passes through the flux blanket
- Flux Removal: Any flux adhering to exterior surfaces must be mechanically removed
Tubular Product Vulnerabilities in Wet Process
Wet galvanizing presents severe challenges for tubular products, particularly when progressively dipped:
Flux Introduction to Interior: As tubular articles pass through the floating flux blanket, flux readily enters through open ends, vent holes, and drainage ports, coating all interior surfaces.
High-Temperature Fluidity: At galvanizing temperatures, the flux is thin and highly fluid, penetrating small openings and complex internal geometries.
Incomplete Drainage: Even with adequate vent holes, draining molten flux from hot tubular interiors proves difficult. Surface tension, viscosity, and complex internal geometries prevent complete evacuation.
Progressive Dip Amplification: The first end dipping operation introduces flux to interior spaces. If substantial flux remains after the first sequence, the second dipping operation adds more flux, compounding the problem.
Solidification During Cooling: As articles cool after galvanizing, entrapped flux solidifies within interior spaces, adhering to internal surfaces and becoming very difficult to remove post-galvanizing.
Dry Galvanizing: The Modern Solution
Recognition of wet galvanizing's limitations for tubular products drove industry transition to dry galvanizing processes, now the predominant methodology in North America.
Dry Galvanizing Methodology
Dry galvanizing separates fluxing from zinc immersion:
- Surface Cleaning: Degreasing and pickling as in wet process
- Separate Flux Application: Articles are immersed in or sprayed with flux solution in a dedicated flux bath or chamber separate from the galvanizing kettle
- Drying: Articles are dried after fluxing, allowing water to evaporate while depositing a thin solid flux layer on all surfaces
- Clean Zinc Bath Entry: Articles enter the zinc bath through a clean zinc surface without any floating flux blanket
- Normal Galvanizing: Standard zinc-iron reactions occur without flux interference
- Clean Withdrawal: Extraction from clean zinc eliminates flux contamination concerns
Advantages for Tubular Products
Dry galvanizing dramatically reduces flux entrapment risks:
Controlled Flux Application: Flux application occurs in a controlled separate step where flux concentration, temperature, and application method optimize surface preparation while minimizing excess flux volume.
Drainage Opportunity: The drying step between fluxing and galvanizing provides opportunity for excess flux solution to drain from tubular interiors through properly positioned vent holes.
No Molten Flux Exposure: Eliminating the floating flux blanket prevents molten flux introduction to tubular interiors during the high-temperature galvanizing immersion.
Simplified Flux Management: The thin, solid flux layer deposited during drying is largely consumed during zinc immersion, leaving minimal residue compared to wet process flux.
Better Quality Control: Separation of process steps enables independent optimization and quality verification of each stage.
Progressive Dipping in Dry Process
When combined with proper venting design, dry galvanizing enables safe progressive dipping of tubular structures:
First End Processing: Flux applied to the first half drains during drying. Any small residue remaining interior after first-end galvanizing has minimal volume.
Second End Processing: Fresh flux applied to the second half similarly drains during drying. The overlap zone receives some additional flux exposure, but proper venting allows drainage before significant accumulation.
Minimal Residue: The total flux residue remaining after dry galvanizing of progressively dipped tubular products is typically negligible and insufficiently concentrated to cause internal corrosion.
Critical Role of Venting and Drainage Design
Regardless of galvanizing process methodology, proper venting and drainage hole design is essential for successful tubular product galvanizing:
ASTM A385 Venting Requirements
ASTM A385 establishes comprehensive guidance for vent and drain hole design. Key provisions for utility poles and large tubular products include:
Minimum Hole Sizing:
- Holes must be sized relative to tube diameter and length
- Larger tubes require proportionally larger vent holes
- Minimum 1/2 inch diameter for most applications, with larger holes for substantial tubes
Strategic Positioning:
- Holes must be positioned to enable complete drainage regardless of immersion angle
- Multiple holes distributed along length for tubes exceeding kettle dimensions
- Consideration of progressive dipping overlap zones requiring drainage access from both dipping sequences
Open Ends Requirement:
- Tubular poles should maintain at least one open end during galvanizing to maximize drainage
- End plates or caps that seal tubes should be welded after galvanizing rather than before
Accessibility:
- Vent holes must be accessible from exterior for inspection verification
- Holes should not be positioned where they will be obscured by field connections before inspection opportunity
Design Failures in Arizona Case
The Arizona transmission pole failures resulted partly from inadequate venting:
Undersized Holes: Vent holes were too small relative to pole dimensions and flux volume, preventing adequate drainage.
Insufficient Number: Too few vent holes distributed along pole length limited drainage effectiveness.
End Plate Obstruction: Some poles had welded end plates installed before galvanizing, eliminating the natural open-end drainage pathway.
No Progressive Dip Accommodation: Vent hole design did not account for the additional drainage requirements of progressive dipping with overlap zones.
Modern Best Practices for Utility Pole Galvanizing
Current industry practices incorporate lessons from historical failures and leverage dry galvanizing process advantages:
Design Phase Requirements
Early Galvanizer Consultation: Engage galvanizing facilities during design development to review pole dimensions, venting requirements, and progressive dipping feasibility.
ASTM A385 Compliance: Incorporate venting and drainage specifications per ASTM A385 directly into fabrication drawings and specifications.
Open End Maintenance: Design poles to maintain at least one open end through the galvanizing process. Specify that end caps or plates requiring sealed ends be welded after galvanizing completion.
Overlap Zone Consideration: Account for visual overlap zone appearance in design documentation and aesthetic expectations.
Fabrication Phase Verification
Vent Hole Inspection: Verify all required vent and drain holes are present, properly sized, and correctly positioned before shipping to galvanizer.
Documentation: Provide galvanizer with detailed drawings showing vent hole locations and any special handling requirements.
Test Drainage: For critical applications, consider water flow testing to verify adequate drainage before galvanizing.
Galvanizing Phase Controls
Dry Process Confirmation: Verify the galvanizer employs dry galvanizing process rather than wet methodology.
Process Documentation: Request documentation of fluxing, drying, and immersion procedures specific to progressive dipping.
Quality Assurance: Conduct post-galvanizing inspection including interior inspection (where accessible) to verify no significant flux residue remains.
Interior Coating Considerations
While exterior coating quality receives primary attention, interior coating condition merits consideration for tubular utility poles:
Interior Coating Formation
During galvanizing, molten zinc enters tubular interiors through open ends and vent holes, coating interior surfaces. However, interior coating characteristics differ from exterior:
Reduced Thickness: Interior coating thickness typically measures less than exterior due to less favorable drainage and zinc flow during withdrawal.
Variable Uniformity: Interior coating distribution shows greater variation, with some areas receiving minimal coating while others have adequate thickness.
Texture Differences: Interior surfaces often exhibit rougher texture from dross particles or coating solidification patterns.
Interior Corrosion Protection Strategy
For utility poles in normal atmospheric exposure, interior corrosion represents minimal concern when flux entrapment is prevented:
Limited Moisture Access: Properly vented poles with downward-facing openings exclude most rainfall while allowing condensation drainage.
Protected Environment: Pole interiors experience less aggressive exposure than exteriors, requiring less robust corrosion protection.
Adequate Thin Coating: Even thin, non-uniform interior coating provides sufficient protection for the relatively benign interior environment.
No Flux, No Problem: Absent flux residues, steel corrosion in pole interiors proceeds at extremely slow rates insufficient to affect pole service life.
Inspection and Acceptance Criteria
Post-galvanizing inspection of progressively dipped utility poles should address both coating quality and flux residue absence:
Exterior Coating Verification
Thickness Measurement: Verify coating thickness meets or exceeds ASTM A123 requirements across entire pole length including overlap zone.
Visual Assessment: Document overlap zone appearance and compare to established acceptance criteria.
Adhesion Verification: Conduct adhesion testing per ASTM A123 to verify coating bonding throughout length.
Interior Inspection (Where Accessible)
Visual Inspection: Examine interior surfaces through open ends or large vent holes for flux residue, coating uniformity, and corrosion indicators.
Flush Testing: For critical applications, water flushing through interior can reveal flux residues (evidenced by turbid, discolored effluent) or coating discontinuities.
Acceptance Criteria: Establish clear criteria for acceptable interior coating condition and maximum allowable flux residue (typically zero visible flux residue for modern dry galvanizing).
Field Performance Monitoring
Utility poles represent long-term infrastructure investments warranting ongoing condition monitoring:
Inspection Frequency
Initial Inspection: Within 1-2 years of installation to establish baseline condition and verify proper performance initiation.
Routine Monitoring: Every 5-10 years depending on environment corrosivity and criticality.
Condition-Triggered: Additional inspection if visible coating deterioration, corrosion staining, or structural concerns emerge.
Inspection Focus Areas
Overlap Zones: Monitor for differential weathering or any signs of coating failure at progressive dipping transitions.
Interior Access Points: Where inspection is possible, periodically verify interior condition and absence of unexpected corrosion.
Ground Line: For poles with below-grade sections, the ground line interface often experiences highest corrosivity.
Attachment Points: Connections, through-bolts, and mounted equipment may create localized corrosion concerns.
Economic Considerations
Progressive dipping enables galvanizing of utility poles that would otherwise require alternative corrosion protection methods:
Cost Comparison
Progressive Dip Galvanizing: Moderate initial cost premium over standard-size galvanized poles but delivers 50+ year protection life in most environments.
Paint Systems: Lower initial application cost but requires maintenance repainting every 10-20 years, with life-cycle cost exceeding galvanizing.
Stainless Steel: Excellent corrosion resistance but prohibitively expensive material cost for utility-scale deployment.
Weathering Steel: Viable for some applications but requires careful design and provides inconsistent performance in certain environments.
Value Proposition
Progressive dip galvanizing delivers optimal value when proper design and process controls ensure flux-free interiors and complete coating coverage:
Extended Service Life: Properly galvanized utility poles regularly achieve 75+ years service life with minimal maintenance.
Maintenance Elimination: No repainting or coating renewal required throughout pole life.
Reliability: Galvanized poles maintain structural integrity without coating-related deterioration concerns.
Life-Cycle Economics: Despite potentially higher initial cost than paint systems, galvanizing provides superior life-cycle value through maintenance elimination and extended service life.
International Considerations
While North American galvanizing industry has largely transitioned to dry galvanizing, some international facilities continue wet galvanizing practices:
Due Diligence Required: Projects involving galvanizing at international facilities should explicitly verify dry galvanizing process use for tubular products.
Specification Clarity: International project specifications should explicitly require dry galvanizing process and detailed venting per ASTM A385 or equivalent standards.
Quality Verification: Enhanced post-galvanizing inspection may be warranted for tubular products galvanized internationally, including interior inspection for flux residues.
Conclusion
Progressive dipping enables hot-dip galvanizing of utility poles, transmission tower components, and large tubular structures exceeding standard galvanizing kettle dimensions, extending protection availability to critical infrastructure elements. While this technique produces visually distinctive overlap zones with enhanced coating thickness, properly executed progressive dipping delivers equivalent corrosion protection across entire article length. Historical failures from flux entrapment—most notably the 1988 Arizona transmission pole incident—demonstrated the critical importance of adequate venting design and appropriate process methodology. Modern industry practices combining dry galvanizing processes with comprehensive venting per ASTM A385 effectively eliminate flux entrapment risks, enabling routine successful progressive dipping of large tubular structures. Success requires collaborative engagement among engineers, fabricators, and galvanizers during design development to ensure adequate venting, appropriate process methodology, and realistic acceptance criteria addressing overlap zone appearance. When properly designed and processed, progressively dipped galvanized utility poles deliver decades of maintenance-free service with superior reliability and life-cycle value compared to alternative corrosion protection systems. See the original AGA resource on Progressive Dipping of Large Poles here.
