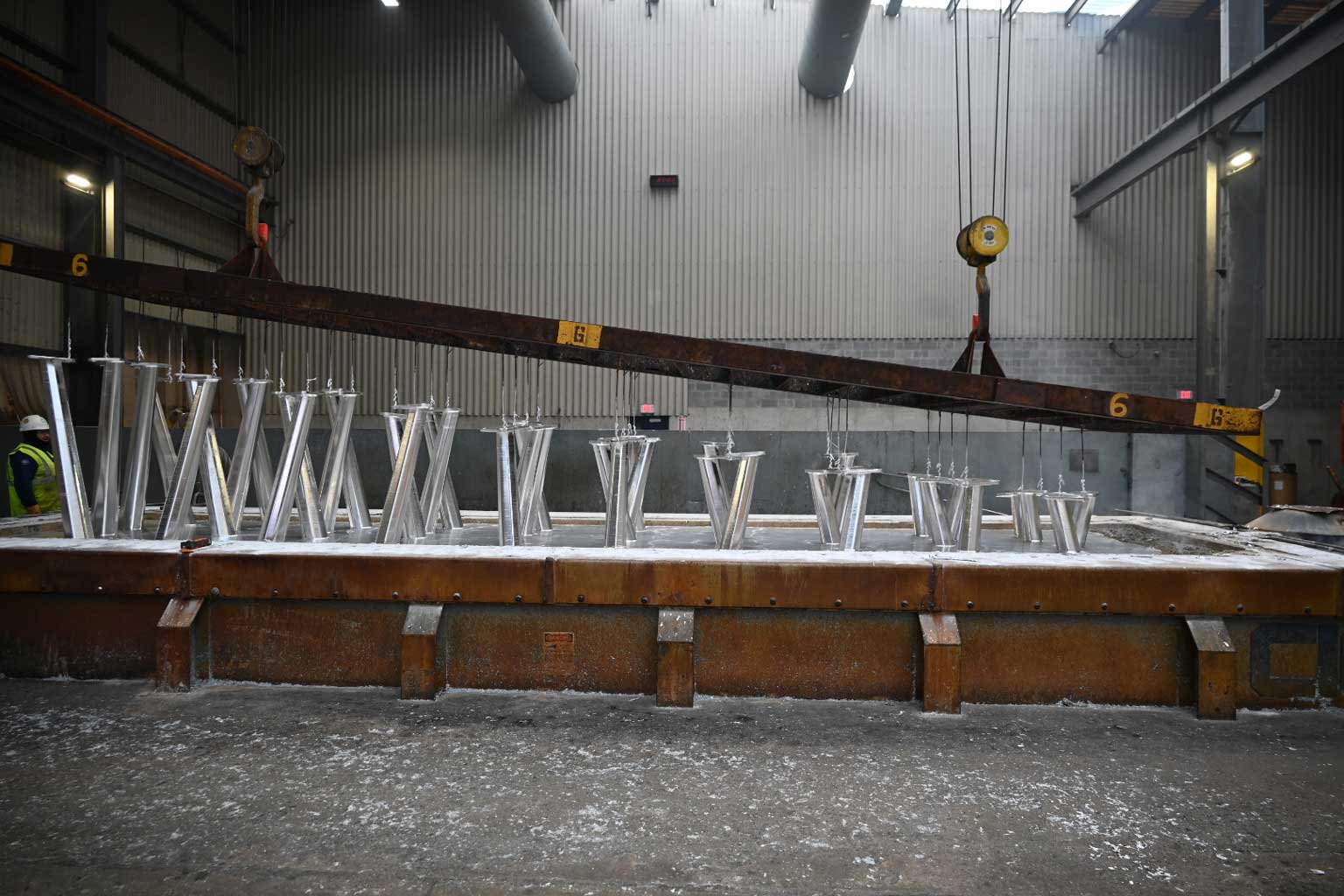

Progressive Dipping: Extending Hot-Dip Galvanizing Capabilities Beyond Kettle Dimensions
When steel fabrications exceed the physical dimensions of available galvanizing kettles, the progressive dip method provides a practical solution for achieving complete zinc coating coverage. This sequential immersion technique effectively doubles the maximum size of articles that can be hot-dip galvanized while maintaining compliance with industry standards.
What is Progressive Dipping?
Progressive dipping is a specialized hot-dip galvanizing technique employed when steel components are too large for complete submersion in a single immersion. The process involves galvanizing the article in two separate sequential dips, with each end passing through the complete surface preparation and coating cycle to ensure uniform protection across the entire surface.
The fundamental requirement for progressive dipping is straightforward: at least half of the article's length, width, or depth must fit within the kettle dimensions. If this criterion is met, the component can be partially galvanized, repositioned, and then processed again to coat the remaining surface with a controlled overlap zone.
The Progressive Dip Process: A Step-by-Step Overview
Initial Preparation and First Immersion
The progressive dip sequence begins with standard hot-dip galvanizing surface preparation. The steel component undergoes the complete pretreatment regimen according to the galvanizing facility's established procedures: alkaline cleaning, rinsing, acid pickling, and fluxing. The article is then positioned and lowered into the molten zinc bath at approximately 840°F (449°C) until at least half of the component is submerged.
During this first immersion, the iron-zinc metallurgical reaction occurs on the submerged portion, forming the characteristic layered zinc coating structure. The duration of immersion varies based on steel chemistry, section thickness, and bath composition, but typically ranges from 3 to 6 minutes for most structural steel applications.
Interim Surface Preparation
Following the first galvanizing immersion, the partially coated article presents a unique challenge: the galvanized surface terminates at a rough edge where it emerged from the zinc bath, while the ungalvanized portion requires fresh surface preparation before the second immersion.
The component is transported back to the pretreatment area where the ungalvanized section undergoes one of two preparation protocols, depending on the galvanizing facility's standard operating procedures:
- Complete re-preparation: The ungalvanized portion is cleaned and fluxed through the full pretreatment sequence
- Flux-only treatment: Only fresh flux is applied to the clean, ungalvanized steel surface
This interim preparation step is critical to progressive dipping success. Fresh flux must be present on all steel surfaces entering the zinc bath to ensure proper wetting and metallurgical bonding. Without adequate flux coverage, the zinc will not properly alloy with the steel substrate, resulting in coating defects or incomplete coverage.
Second Immersion and Overlap Zone Formation
After re-fluxing, the article returns to the galvanizing kettle for the second immersion. The previously ungalvanized portion is now lowered into the molten zinc, with deliberate overlap into the area coated during the first dip. This overlap—typically several inches in width—ensures no uncoated steel remains at the transition zone despite the irregular edge created during the first immersion withdrawal.
The overlap region experiences zinc immersion twice, resulting in a visibly thicker, darker coating section compared to the surrounding galvanized surface. This overlap line is an expected characteristic of progressive dipping and does not indicate a quality deficiency, provided the coating meets thickness requirements specified in ASTM A123.
Quality Considerations and Standards Compliance
Progressive dipping must produce coatings that meet all requirements of ASTM A123, "Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products." This includes minimum thickness requirements based on material thickness and composition, coating adherence, and surface finish criteria.
The overlap zone created by progressive dipping warrants specific attention during inspection. While this area will be thicker and darker than single-dipped surfaces, it must remain free from excessive dross accumulation, flux inclusions, or other defects that could compromise coating performance. The overlap appearance is purely cosmetic and will gradually weather to match the surrounding coating color over time through natural zinc patina formation.
Process Variations Among Galvanizing Facilities
No two galvanizing plants are identical in configuration, and the progressive dip process reflects this diversity. Variables that influence the specific steps include:
- Material handling systems (monorail cranes, overhead bridge cranes, jib cranes)
- Tank arrangement and spacing in the pretreatment line
- Kettle accessibility and available rigging clearances
- Standard operating procedures for flux application
- Temperature management protocols
Despite these variations, the fundamental principle remains constant: both ends of the component entering the zinc bath must have fresh, active flux on all steel surfaces. As long as this requirement is met and the finished coating complies with ASTM A123, various approaches to progressive dipping are acceptable.
Design Implications for Progressive Dipping
Engineers and fabricators should consult with their chosen galvanizing facility early in the design phase when progressive dipping may be required. Key considerations include:
Dimensional Analysis: Verify that at least half the article dimensions fall within kettle capacity. Standard North American kettles average 40 feet in length, with 50-60 foot kettles increasingly common. Kettle depths typically range from 6 to 12 feet, with widths between 5 and 8 feet.
Lifting and Rigging: The article must be designed with adequate lifting points that allow proper positioning during both immersions. Rigging arrangements must provide controlled angular positioning to maximize immersion depth.
Thermal Stress Management: Progressive dipping subjects fabrications to the thermal expansion/contraction cycle twice. Asymmetrical assemblies or components with constrained sections should include temporary bracing or be designed to accommodate thermal stresses.
Venting and Drainage: Adequate vent and drain holes remain essential, particularly for hollow sections that will be progressively dipped. Proper hole sizing enables rapid bath entry and exit, minimizing processing time and thermal stress.
Progressive dipping extends hot-dip galvanizing capabilities to oversized steel fabrications that would otherwise require alternative coating methods or design modifications. While the process introduces additional steps compared to single-immersion galvanizing, it produces fully compliant, protective zinc coatings when properly executed. Understanding the sequential nature of progressive dipping enables engineers, architects, and contractors to specify hot-dip galvanizing confidently for large structural components, maximizing the proven durability and cost-effectiveness of zinc coatings for corrosion protection.
For specific questions regarding progressive dipping capabilities at individual galvanizing facilities, designers should contact galvanizers directly to discuss kettle dimensions, material handling capacity, and processing procedures before finalizing fabrication drawings. To learn more, visit the original AGA resource on the hot-dip galvanizing process.
