Surface Preparation Fundamentals for Duplex Systems
Duplex systems—the combination of hot-dip galvanizing with subsequent organic topcoats—deliver corrosion protection performance exceeding the sum of individual system capabilities. However, achieving optimal paint or powder coating adhesion to galvanized surfaces requires appropriate surface preparation that roughens the zinc coating without compromising its protective capacity. Abrasive blast cleaning represents the predominant preparation method, but media selection involves balancing competing requirements: generating adequate surface profile for mechanical paint adhesion while minimizing damage to the underlying galvanized coating.
Understanding abrasive media characteristics, standardized surface preparation specifications, and the relationship between blast parameters and resulting surface conditions enables informed specification decisions that optimize duplex system performance.
The Role of Surface Profile in Coating Adhesion
Organic coatings—both liquid paints and powder coatings—bond to substrate surfaces through multiple mechanisms including chemical adhesion, mechanical interlocking, and molecular forces. For galvanized steel applications, mechanical interlocking provides the primary adhesion mechanism once proper surface preparation is achieved.
Surface Profile Definition
Surface profile refers to the three-dimensional topography of a prepared surface, characterized primarily by the vertical distance between profile peaks and valleys. This roughness creates microscopic anchor points where coating material flows into depressions during application and subsequently hardens, creating mechanical "keys" that resist coating delamination forces.
Profile Height Requirements
Industrial paint system manufacturers typically specify minimum surface profile heights based on coating film thickness and formulation characteristics:
Light Industrial Coatings: 1.0-1.5 mils (25-38 micrometers) profile height
Standard Industrial Coatings: 1.5-2.0 mils (38-51 micrometers) profile height
Heavy-Duty Industrial Coatings: 2.0-2.5 mils (51-64 micrometers) profile height
High-Build Systems: 2.5-3.0+ mils (64-76+ micrometers) profile height
These profile requirements reflect the need for adequate anchor pattern depth relative to total coating film thickness. Insufficient profile produces weak mechanical adhesion, increasing risk of coating failure through delamination or adhesion loss.
Profile Height Measurement
Surface profile is measured using replica tape systems or electronic profilometers. Replica tape—a compressible foam backed by plastic film—is pressed into the prepared surface, capturing a reverse impression of the profile. Measuring the compressed foam thickness with a specialized micrometer yields average peak-to-valley height measurements.
Electronic stylus profilometers provide alternative measurement capability, traversing the surface mechanically while recording vertical displacement to generate detailed topography data.
SSPC-SP 16: Industry Standard for Galvanized Steel Preparation
The Society for Protective Coatings (now SSPC: The Society for Protective Coatings) developed SSPC-SP 16, "Brush-Off Blast Cleaning of Coated and Uncoated Galvanized Steel, Stainless Steels, and Non-Ferrous Metals," specifically addressing surface preparation for metals requiring gentle blast treatment to avoid substrate damage.
Sweep Blasting Methodology
SP 16 defines sweep blasting as a controlled abrasive blast cleaning technique employing:
Shallow Impact Angle: Blast nozzle directed at 30-60 degrees from the work surface plane rather than the 70-90 degree angles typical of carbon steel blast cleaning. The shallow angle reduces impact energy per particle, limiting subsurface damage.
Rapid Nozzle Movement: Continuous sweeping motion across the work surface prevents concentrated abrasive bombardment at any location, distributing impact energy uniformly.
Controlled Blast Parameters: Appropriate selection of blast pressure, nozzle distance, and abrasive flow rate to achieve surface roughening without zinc coating removal.
The sweep blasting approach prioritizes surface texture modification over contaminant removal, producing the roughened anchor pattern necessary for paint adhesion while preserving the zinc coating's protective capacity.
Traditional Soft Media Recommendations
SSPC-SP 16 originally emphasized soft, low-hardness abrasive materials to minimize coating damage risk:
Aluminum/Magnesium Silicate: Mohs hardness approximately 2.5-3.0, provides gentle abrasive action with minimal coating removal
Soft Mineral Sands: Selected sand varieties with hardness below Mohs 5.0, offers controlled roughening
Soft Crushed Glass: Recycled glass products processed to control particle hardness and angularity
Glass Bead Media: Spherical glass particles providing smooth, rounded profile with minimal surface penetration
Organic Media: Agricultural byproducts including walnut shells, corncobs, and other plant-based materials offering very gentle abrasive action
These soft media options successfully prevent coating damage and produce surfaces suitable for many paint systems. However, they exhibit limitations when confronted with coating formulations requiring substantial surface profile heights.
The Surface Profile Challenge
Industrial paint and powder coating system evolution has progressively demanded higher surface profiles to accommodate thicker film builds and enhanced performance formulations. Many modern high-performance coatings specify minimum profile heights of 2.0 to 2.5 mils or greater—substantially exceeding the profile capability of traditional soft media when used within damage-prevention parameters.
Soft Media Limitations
Low-hardness abrasives (Mohs hardness less than 5) demonstrate limited ability to generate deep anchor patterns on zinc surfaces:
Insufficient Cutting Action: Soft particles deform on impact rather than penetrating the zinc surface deeply, creating shallow profile peaks inadequate for heavy coating systems.
Rapid Media Degradation: Soft media break down quickly during blasting, losing angular edges that contribute to cutting action and progressively reducing effectiveness.
Extended Blast Time: Achieving even moderate profile with soft media requires prolonged surface exposure, increasing labor costs and project duration.
Inconsistent Results: Soft media produce variable results depending on media condition, operator technique, and substrate variations.
These limitations prompted investigation of harder abrasive materials capable of generating required profile heights while maintaining acceptable zinc coating preservation.
Research Investigation: Harder Abrasive Media Performance
Recognizing the disconnect between soft media capabilities and coating system requirements, industry research systematically evaluated harder abrasive materials for galvanized surface preparation. The investigation assessed multiple media types spanning a range of hardness values, blast parameters, and resulting surface characteristics.
Media Types Evaluated
Crushed Glass: Recycled glass processed to angular particles, Mohs hardness approximately 5.5-6.0
Garnet: Naturally occurring mineral abrasive, Mohs hardness approximately 7.0-7.5
Proprietary Low-Silica Sand Mixtures: Engineered sand blends formulated to balance hardness (Mohs 6.0-7.0) with reduced silica content for respiratory safety
Coal Slag: Industrial byproduct abrasive, Mohs hardness approximately 6.0-7.0
Steel Grit: Angular metallic media, Mohs hardness approximately 5.5-6.5 (though metallic rather than mineral hardness scale)
These materials all exceed the Mohs 5.0 threshold traditionally considered maximum for galvanized surface preparation, requiring careful parameter optimization to prevent excessive coating damage.
Research Methodology
The investigation employed standardized test protocols:
- Controlled Blast Application: Each media type applied to galvanized test panels using sweep blasting technique at various parameter combinations (pressure, distance, angle, nozzle speed)
- Surface Profile Measurement: Replica tape or profilometer measurement of average peak-to-valley height across multiple locations
- Coating Thickness Assessment: Magnetic thickness gauge measurement before and after blasting to quantify zinc coating loss
- Surface Characterization: Visual and microscopic examination for coating damage indicators including zinc removal exposing steel substrate, excessive coating thinning, or surface defects
- Peak Density Evaluation: Analysis of peak frequency per unit area, affecting coating wetting and adhesion characteristics
Key Research Findings
Profile Height Capability
The investigation confirmed that abrasive media with Mohs hardness of 5.0 or greater can successfully generate surface profiles exceeding 2.0 mils peak-to-valley height on galvanized surfaces. Specific performance varies by media type:
Crushed Glass: Capable of producing 1.5-2.5 mils profile with appropriate blast parameters. The glass' angular particle shape provides good cutting action while controlled hardness limits excessive zinc removal.
Garnet: Generates 2.0-3.0+ mils profile readily due to high hardness and sharp angular particles. Requires careful parameter control to prevent coating damage, but offers excellent capability for high-profile requirements.
Low-Silica Sand Mixtures: Performance varies by specific formulation but generally achieves 1.5-2.5 mils profile. Particle size distribution and angularity significantly affect results.
Coal Slag: Produces 2.0-2.5 mils profile with moderate blast parameters. Angular particle geometry and intermediate hardness provide balanced performance.
Steel Grit: Capable of 2.0-3.0 mils profile but presents highest coating damage risk due to metallic particle density and hardness. Requires most conservative parameter selection.
Coating Damage Mitigation
While harder media increase coating damage risk, several parameter adjustments substantially reduce this concern:
Increased Standoff Distance: Positioning the blast nozzle farther from the work surface (12-24 inches rather than 6-12 inches) reduces particle impact velocity and energy, decreasing coating penetration while maintaining adequate profile generation.
Reduced Blast Pressure: Operating at lower air pressures (40-60 psi rather than 80-100 psi) moderates particle velocity and impact force. Pressure reduction provides the most direct control over abrasive aggressiveness.
Faster Nozzle Movement: Accelerating the sweep speed across the surface reduces cumulative energy delivery to any location, spreading abrasive action more uniformly and preventing localized over-blasting.
Finer Media Gradation: Selecting smaller particle sizes within a media type's available range reduces individual particle impact energy while increasing particle count per unit blast time, distributing total energy across more discrete impacts.
The optimal combination of these parameters varies by media type, desired profile, and acceptable coating thickness loss. Establishing appropriate parameters typically requires test panel evaluation before production blasting.
Coating Thickness Reduction
An inevitable consequence of abrasive surface preparation involves some zinc coating removal. Even with optimized parameters, harder media sweep blasting reduces galvanized coating thickness by approximately 0.4 to 0.6 mils (10-15 micrometers).
This thickness loss represents 8-15% of typical hot-dip galvanized coating thickness (which averages 3.5-4.0 mils for steel meeting ASTM A123 requirements). While measurable, this reduction rarely compromises the duplex system's fundamental protective strategy.
Peak Density Considerations
Beyond simple profile height, the spatial distribution of surface peaks affects coating performance. Peak density—measured as peaks per square millimeter—influences how completely liquid coatings wet the prepared surface and eliminate voids.
High Peak Density: Closely spaced peaks create a finely textured surface that promotes complete coating wetting and minimizes entrapped air or voids. Most desirable for liquid paint systems.
Low Peak Density: Widely spaced peaks with large intervening valleys may trap air during coating application or create voids where coating incompletely fills depressions. Can compromise adhesion performance.
The research found harder angular media generally produce favorable peak density characteristics, with garnet and crushed glass showing particularly well-distributed peak patterns.
Media Selection Decision Matrix
Selecting appropriate abrasive media for galvanized surface preparation requires balancing multiple factors:
When Soft Media Suffice
Traditional soft media (Mohs hardness less than 5) remain appropriate when:
- Coating system specifications require profile heights below 1.5 mils
- Maximum zinc coating preservation is prioritized
- Very thin galvanized coatings (below 2.0 mils) cannot tolerate any thickness loss
- Project involves architecturally sensitive applications where any coating damage is unacceptable
- Local regulations or facility constraints limit available media options
When Harder Media Are Necessary
Harder abrasive materials (Mohs hardness 5.0 or greater) become necessary when:
- Coating manufacturers specify profile requirements exceeding 2.0 mils
- Achieving adequate profile with soft media proves impractical due to time or cost constraints
- Heavy-duty industrial paint systems require aggressive anchor patterns
- High-build coating thickness (10+ mils) demands proportionally deeper profile
- Coating formulations with large particulate fillers need substantial valleys to accommodate particle size
Specific Media Recommendations
For 2.0-2.5 Mils Profile:
- Primary recommendation: Crushed glass or coal slag with optimized parameters
- Alternative: Garnet at reduced pressure or increased distance
- Backup: Low-silica sand mixtures (check specific product performance data)
For 2.5-3.0+ Mils Profile:
- Primary recommendation: Garnet with careful parameter control
- Alternative: Steel grit with conservative parameters and close monitoring
- Consider: Multiple-pass blasting with medium-hardness media rather than single-pass with very hard media
For Sensitive Applications:
- Primary recommendation: Glass bead or soft crushed glass
- Alternative: Organic media (walnut shells, corncobs) for extremely gentle preparation
- Consider: Chemical surface treatment alternatives if blasting proves too aggressive
Parameter Optimization Workflow
Establishing appropriate blast parameters for harder media requires systematic testing:
Initial Parameter Selection
Start with conservative baseline settings:
- Blast pressure: 50-60 psi
- Standoff distance: 18-24 inches
- Impact angle: 30-45 degrees
- Nozzle diameter: 1/4 to 3/8 inch
- Nozzle traverse speed: Moderate pace maintaining continuous motion
Test Panel Evaluation
Apply selected media to galvanized test panels at baseline parameters, then evaluate:
Profile Height Measurement: Determine if baseline parameters achieve target profile depth. If inadequate, adjust parameters more aggressively (higher pressure, closer distance, slower traverse). If excessive, adjust conservatively (lower pressure, greater distance, faster traverse).
Coating Thickness Loss: Measure coating thickness before and after blasting at multiple locations. Calculate average thickness loss. If loss exceeds 0.6 mils, adjust parameters more conservatively.
Visual Inspection: Examine blasted surface for zinc coating breakthrough exposing steel substrate, excessive thinning, or other damage indicators. Any visible steel exposure indicates overly aggressive parameters requiring significant adjustment.
Adhesion Testing: Apply coating system to test panels and conduct adhesion testing per ASTM D4541 (pull-off adhesion) or cross-cut adhesion testing. Verify adhesion meets or exceeds coating system manufacturer's specifications.
Production Parameter Documentation
Once satisfactory parameters are established through test panels, document:
- Media type and gradation
- Blast pressure
- Standoff distance
- Impact angle range
- Nozzle traverse speed guidance
- Expected profile height range
- Anticipated coating thickness loss
Provide this documentation to blast operators and incorporate into quality control procedures.
Quality Control and Inspection
Maintaining consistent surface preparation quality throughout production requires systematic inspection:
Process Control Measures
Media Condition Monitoring: Abrasive media degrades during use, losing angular edges and fracturing into finer particles. Monitor media condition and replace when degradation affects performance.
Equipment Calibration: Verify blast equipment pressure gauges remain accurate. Check nozzle condition for wear that affects blast pattern and velocity.
Operator Technique: Observe blast operators to ensure consistent adherence to established techniques including standoff distance, angle, and traverse speed.
Surface Verification Testing
Profile Measurement Frequency: Measure surface profile at intervals throughout production. Typical frequencies range from every 50-100 square feet for critical applications to periodic spot-checking for less demanding projects.
Coating Thickness Verification: Monitor zinc coating thickness loss to verify parameters remain within acceptable ranges. Excessive thickness loss indicates parameter drift requiring correction.
Visual Inspection: Examine blasted surfaces for uniformity, absence of coating damage, and appropriate texture. Document any anomalies and adjust processes accordingly.
Cleanliness Assessment: Verify complete removal of any surface contaminants, though this is rarely an issue with new galvanized surfaces. Check for embedded blast media or other debris requiring removal before coating application.
Practical Implications for Duplex Systems
The measurable zinc coating thickness loss from harder media blasting raises questions about long-term duplex system performance and durability:
Protection Strategy Perspective
Duplex systems fundamentally rely on the organic topcoat as the primary barrier protection, with the galvanized substrate serving as:
Substrate Protection During Coating Life: The topcoat shields the zinc coating from atmospheric exposure, dramatically slowing zinc corrosion rates. The zinc essentially remains dormant during topcoat service life.
Sacrificial Protection at Coating Defects: At inevitable topcoat defects—scratches, impact damage, or holidays—the zinc provides localized cathodic protection preventing steel substrate corrosion.
Long-Term Backup Protection: If the topcoat is not maintained and eventually fails completely, the underlying zinc coating provides extended protection until major rehabilitation becomes necessary.
Aesthetic Maintenance Approach
Most duplex systems are specified primarily for aesthetic reasons—providing color, gloss, or specific appearance requirements—rather than absolute corrosion protection necessity. These systems are typically maintained through topcoat renewal long before complete coating failure occurs.
Under maintained duplex system scenarios:
- The zinc coating rarely experiences direct atmospheric exposure
- Coating thickness loss of 0.4-0.6 mils has negligible impact on system service life
- The organic topcoat receives maintenance or renewal every 10-25 years depending on coating type and exposure
- The galvanized substrate remains essentially intact indefinitely under maintained topcoat protection
When Coating Loss Matters
Zinc coating thickness reduction from surface preparation becomes more significant when:
Extended Unmaintained Exposure Expected: If project maintenance plans anticipate 20-30+ years without topcoat renewal, maximizing initial zinc thickness becomes more important.
Thin Initial Coatings: Articles with galvanized coating thickness near minimum specification values tolerate less thickness loss than heavily coated pieces.
Aggressive Exposure Environments: Coastal, industrial, or other high-corrosivity environments increase the importance of maximum zinc thickness at coating defects.
Budget-Constrained Maintenance: Projects with uncertain long-term maintenance funding may experience extended periods of topcoat degradation where zinc thickness directly affects performance.
For these scenarios, specifiers should consider:
- Using softer media despite profile limitations and accepting lower-build coating systems
- Specifying thicker initial galvanized coatings to provide buffer against preparation losses
- Implementing stricter blast parameter controls minimizing thickness loss
- Evaluating alternative surface preparation methods such as chemical treatments
Alternative Surface Preparation Methods
While abrasive blasting represents the predominant preparation method, alternatives exist for specific circumstances:
Chemical Surface Treatment
Proprietary chemical formulations etch or modify galvanized surfaces to enhance paint adhesion:
Advantages: No coating thickness loss, no profile generation concerns, can treat complex geometries easily
Limitations: Requires chemical handling and disposal infrastructure, may not achieve high profile depths needed for some coatings, variable performance among products
Applications: Best suited for thin coatings on complex shapes where blasting is difficult
Power Tool Cleaning
Mechanical surface roughening using wire brushes, abrasive pads, or similar tools:
Advantages: Low equipment investment, suitable for small areas or field work
Limitations: Labor-intensive, inconsistent results, difficult to achieve uniform profile, limited to accessible surfaces
Applications: Touch-up or repair of small areas, field preparation where blasting is impractical
Water Jetting
High-pressure water blast cleaning with or without abrasive addition:
Advantages: Dust-free operation, environmentally friendly, no embedded media
Limitations: Limited profile generation capability, requires water management, slower than dry abrasive blasting for many applications
Applications: Facilities with environmental constraints on dust generation, indoor operations requiring clean processes
Environmental and Safety Considerations
Abrasive blasting operations present environmental and occupational health concerns requiring attention:
Silica Exposure
Traditional sand blasting generates crystalline silica dust—a severe respiratory hazard linked to silicosis. Modern regulations strictly control silica exposure:
Exposure Limits: OSHA permissible exposure limit for crystalline silica reduced to 50 micrograms per cubic meter time-weighted average
Engineering Controls: Ventilation, containment, and dust collection systems required to meet exposure limits
Respiratory Protection: When engineering controls cannot achieve exposure limits, respiratory protection is mandatory
Low-Silica Alternatives: Many specifiers now prohibit silica sand entirely, requiring alternative media such as garnet, coal slag, or engineered low-silica products
Blast Media Disposal
Spent abrasive media containing zinc particles requires proper disposal:
Characterization: Testing may be necessary to determine if spent media qualifies as hazardous waste based on zinc content
Recycling Options: Some media types (steel grit, glass bead) can be reclaimed and reused, reducing disposal burden
Regulatory Compliance: Follow federal, state, and local regulations governing industrial waste disposal

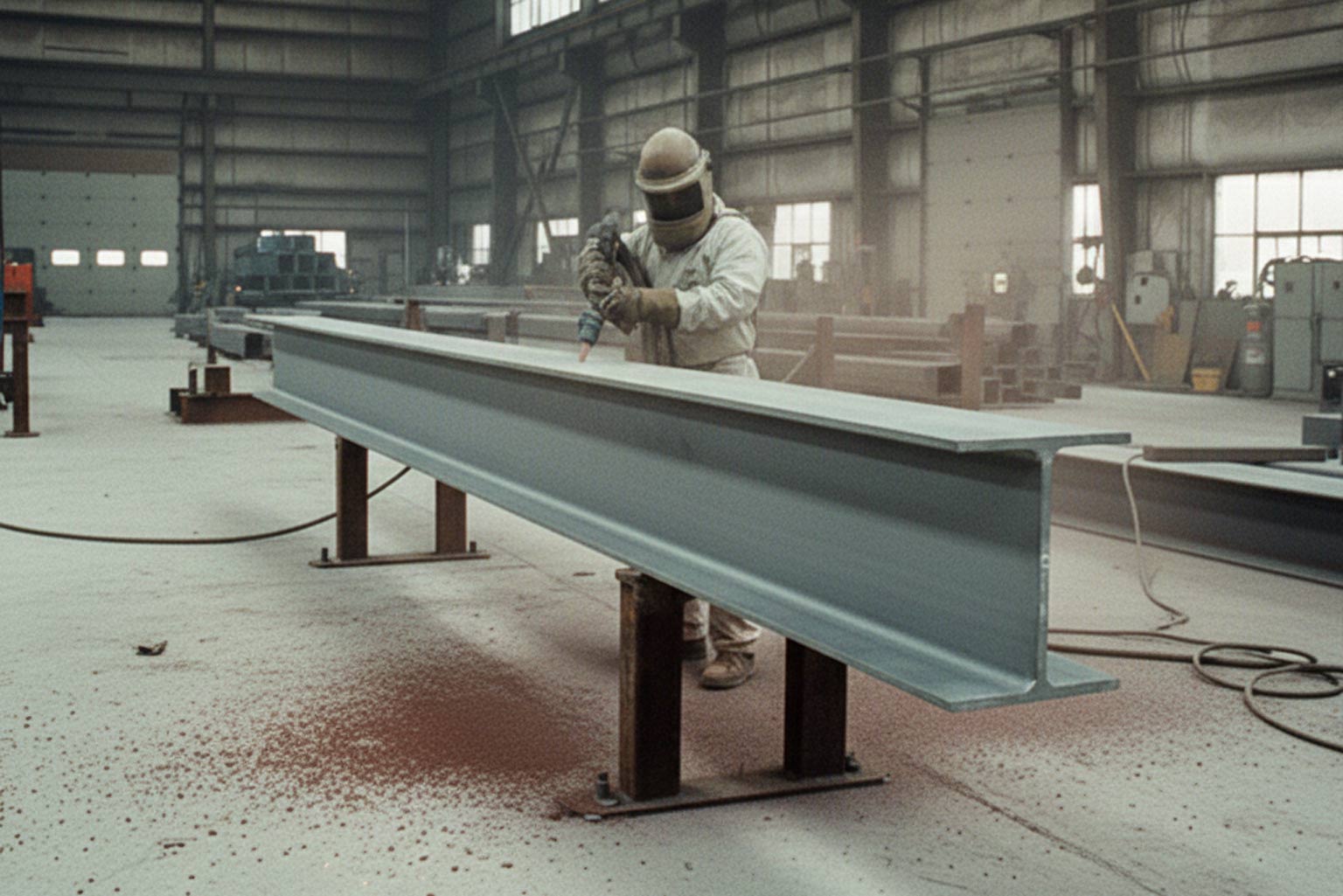

Operator Protection
Blast operators require comprehensive personal protective equipment:
- Blast hood or respirator with supplied air
- Protective clothing resistant to abrasive impact
- Hearing protection against high-noise-level exposure
- Impact-resistant footwear and gloves
Specification Language Recommendations
Project specifications should clearly communicate surface preparation requirements:
Profile Requirements: "Galvanized surfaces shall be sweep blast cleaned per SSPC-SP 16 to achieve a minimum surface profile of 2.0 mils (51 micrometers) as measured by replica tape or calibrated profilometer. Profile measurements shall be conducted at a frequency of one location per 100 square feet with a minimum of three measurements per article."
Media Restrictions: "Abrasive media shall be crushed glass, garnet, or coal slag with hardness not exceeding Mohs 7.5. Silica sand blasting is prohibited. Media shall be clean, dry, and free of contaminants that could affect coating adhesion."
Coating Preservation: "Blast parameters shall be optimized to minimize zinc coating thickness loss. Average thickness loss shall not exceed 0.6 mils (15 micrometers). No blasting shall expose steel substrate. Test panels shall be prepared and approved before production blasting begins."
Quality Verification: "Surface preparation shall be inspected and approved before coating application. Inspection shall verify profile height meets specifications, zinc coating remains intact without visible steel exposure, and surface is clean and free of contaminants or embedded media."
Preparing hot-dip galvanized surfaces for paint or powder coating application requires careful abrasive media selection balancing the competing demands of generating adequate surface profile for coating adhesion while preserving zinc coating integrity. Traditional soft media (Mohs hardness below 5.0) recommended by SSPC-SP 16 prevent coating damage effectively but often cannot achieve the 2.0-2.5+ mils surface profile heights specified by modern high-performance industrial coating systems. Research demonstrates that harder abrasive media including crushed glass, garnet, coal slag, and proprietary low-silica sand mixtures (Mohs hardness 5.0-7.5) can successfully generate required profile depths when applied using sweep blasting technique with optimized parameters. Mitigation strategies including increased standoff distance, reduced blast pressure, faster nozzle traverse speeds, and finer media gradations significantly reduce coating damage risk while maintaining profile generation capability. The inevitable zinc coating thickness reduction of approximately 0.4-0.6 mils from harder media blasting rarely compromises duplex system performance since maintained topcoats protect the galvanized substrate from direct atmospheric exposure, and most duplex systems receive aesthetic maintenance long before coating failure occurs. Successful surface preparation requires systematic test panel evaluation to establish appropriate blast parameters, rigorous quality control throughout production, and clear specification language communicating profile requirements, media restrictions, and acceptable coating thickness loss. By understanding the relationship between abrasive media characteristics, blast parameters, and resulting surface conditions, engineers and coating applicators can confidently specify and execute surface preparation protocols that optimize duplex system adhesion and long-term performance.
See the original AGA resource for additional information.
