When fabricated steel is hot dip galvanized, the resulting coating may exhibit a range of surface appearances. Differences in brightness, texture, or pattern are common and often lead to questions during project inspection. However, in batch galvanizing, coating appearance is not the primary acceptance criterion. Instead, standards focus on measurable performance characteristics such as coating thickness, adhesion, and coverage.
The American Galvanizers Association provides an overview of appearance expectations for batch galvanized steel in its technical knowledgebased article. This article expands on those principles by explaining how ASTM standards address appearance, why surface variations occur, and how inspectors should evaluate galvanized coatings during quality review.
Why Appearance Can Vary in Batch Galvanizing
Hot dip galvanizing is a metallurgical process rather than a paint like surface treatment. When steel is immersed in molten zinc, iron and zinc react to form multiple intermetallic alloy layers that create the protective coating.
Several factors influence the final appearance of the galvanized surface:
- Steel chemistry, particularly silicon and phosphorus content
- Steel thickness and thermal mass
- Cooling rate after withdrawal from the zinc bath
- Fabrication geometry and drainage characteristics
- Surface condition prior to galvanizing
Because these variables differ between components, surface finish can vary across a project even when the coating meets all performance requirements.
ASTM Appearance Acceptance Criteria
ASTM standards governing hot dip galvanizing, including ASTM A123, focus primarily on:
- Minimum coating thickness
- Adhesion of the zinc coating
- Complete coverage of the steel surface
Appearance alone is not a rejection criterion unless it indicates a coating defect that compromises protection.
Examples of acceptable visual variations include:
- Differences in brightness or luster
- Matte gray coatings
- Surface patterns caused by zinc crystallization
- Minor surface roughness associated with steel chemistry
Inspection should always prioritize measurable compliance rather than aesthetic uniformity.

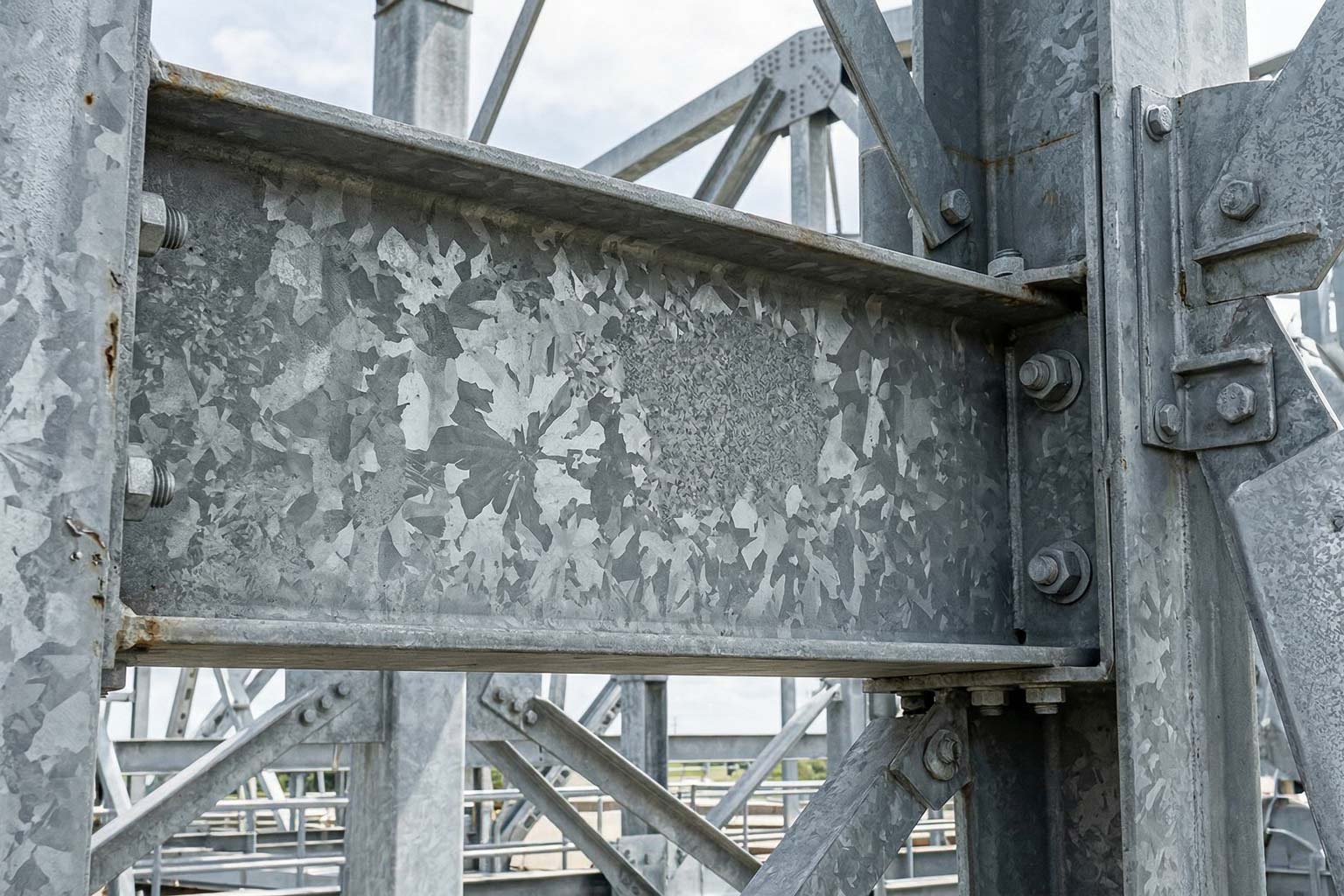

Common Surface Conditions in Galvanized Steel
Several surface characteristics frequently raise questions but are generally acceptable.
Matte Gray Finish
A dull gray appearance often occurs when reactive steel chemistry accelerates zinc iron alloy layer growth. These coatings typically remain fully protective and may even exceed minimum thickness requirements.
Spangle Variation
Traditional zinc crystallization patterns may vary in size or visibility depending on cooling rate and bath chemistry.
Minor Surface Roughness
Localized roughness may occur when steel chemistry promotes thicker alloy layer formation. This does not typically affect coating durability.
Color Variation
Differences in cooling conditions or alloy structure may create subtle color differences between components.
These variations are inherent to the galvanizing process and do not indicate poor quality.
What Constitutes a True Coating Defect
While cosmetic variation is acceptable, certain conditions may require evaluation or corrective action.
Potential defects include:
- Bare areas lacking zinc coverage
- Poor coating adhesion
- Excessive lumps or runs that interfere with assembly
- Large uncoated areas beyond repair limits
Inspection should determine whether these conditions affect coating continuity or structural functionality.
Importance of Surface Preparation
Proper surface preparation prior to galvanizing plays a major role in coating consistency.
Preparation steps typically include:
- Removal of oils and organic contaminants
- Acid pickling to eliminate mill scale and rust
- Flux application to promote uniform wetting
Surface contaminants that remain before immersion can interfere with coating formation and create localized coating irregularities.
Setting Realistic Expectations
Because galvanizing is a diffusion driven metallurgical reaction, identical appearance across all components is rarely achievable.
Project stakeholders should understand that:
- Appearance variation does not necessarily affect corrosion protection
- ASTM standards prioritize performance metrics
- Coating durability depends on thickness and adhesion, not surface brightness
Proper education of inspectors and owners helps prevent unnecessary rejection of compliant coatings.
V&S Batch Galvanizing Quality Control
At V&S, our hot dip galvanizing services emphasize consistent surface preparation, controlled process parameters, and rigorous inspection to ensure coatings meet ASTM performance standards.
While natural variations in appearance may occur due to steel chemistry and fabrication variables, our inspection procedures verify coating thickness, adhesion, and complete coverage for every project.
If you would like to discuss appearance expectations or review inspection criteria for your galvanized steel project, please reach out through our contact page.
Early coordination helps align performance expectations with project requirements.
Surface appearance in batch hot dip galvanizing can vary due to metallurgical reactions, steel chemistry, and fabrication conditions. ASTM standards evaluate galvanized coatings based on thickness, adhesion, and coverage rather than uniform visual finish. Understanding these principles helps engineers and inspectors distinguish between cosmetic variations and true coating defects.
Frequently Asked Questions About Galvanized Steel Appearance
Why does galvanized steel sometimes look dull instead of shiny?
A dull gray appearance usually results from reactive steel chemistry that promotes thicker zinc iron alloy layer growth. These coatings remain fully protective.
Is color variation in galvanized coatings a defect?
No. Differences in color or brightness are common and do not indicate reduced corrosion protection.
What inspection criteria determine whether galvanized steel is acceptable?
ASTM standards evaluate coating thickness, adhesion, and complete coverage rather than visual appearance.
Can different pieces in the same project look different?
Yes. Variations in steel chemistry, thickness, and cooling conditions can produce different surface finishes across components.
What appearance issues might require correction?
Large uncoated areas, poor adhesion, or coating buildup that interferes with assembly may require repair or evaluation.
Does a rough surface reduce corrosion protection?
Not necessarily. Rougher coatings may actually indicate thicker alloy layer growth, which can increase corrosion resistance.
Can appearance be controlled during galvanizing?
Some variables can be managed through process control and steel selection, but metallurgical reactions make complete visual uniformity difficult to guarantee.
Should project specifications include appearance requirements?
If uniform appearance is critical for architectural applications, specifications should clearly define acceptable surface conditions.
