Large steel fabrications often contain long members, asymmetrical sections, or thin plate components that may be susceptible to movement when exposed to the temperatures involved in hot dip galvanizing. Because galvanizing requires full immersion of the fabrication into molten zinc at elevated temperatures, structural stability during handling and immersion becomes an important design and fabrication consideration.
Temporary or permanent bracing is sometimes required to ensure that assemblies maintain their intended geometry throughout the galvanizing process. The American Galvanizers Association discusses bracing considerations for galvanizing in its knowledgebased article.
Expanding on that guidance, this article examines when bracing may be necessary, how temperature exposure affects steel assemblies, and how fabricators can design structures that remain stable during galvanizing.
Why Bracing May Be Necessary
During the galvanizing process, fabricated steel components are heated to the temperature of molten zinc, typically around 840 to 850 degrees Fahrenheit. At this temperature, steel expands as it reaches thermal equilibrium.
While this expansion is temporary, assemblies with uneven mass distribution or insufficient rigidity may experience movement during heating and handling.
Bracing may be required to address conditions such as:
- Long slender members
- Thin plate assemblies
- Large open frame structures
- Asymmetrical fabrications
- Complex welded assemblies
Proper bracing helps maintain dimensional integrity during immersion and cooling.

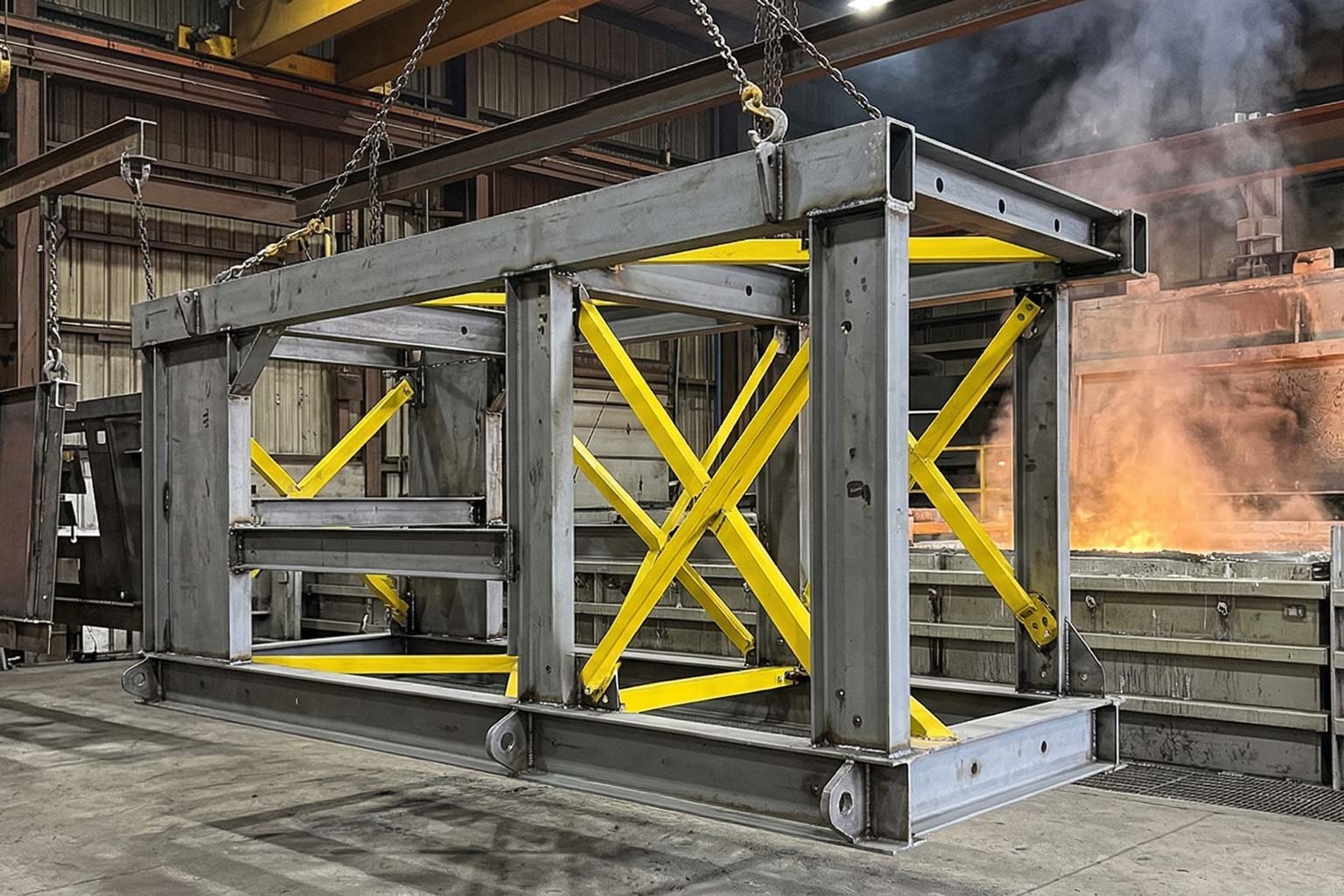

Temporary Bracing
Temporary bracing is commonly installed by the fabricator prior to galvanizing and removed after processing.
Temporary bracing may include:
- Welded cross members
- Tie bars
- Structural straps
- Reinforcement plates
These braces stabilize the fabrication during lifting, immersion, and withdrawal from the galvanizing kettle.
Once the part is galvanized and cooled, temporary braces can be removed if they are not part of the final structural design.
Permanent Bracing
In some cases, permanent bracing becomes part of the final structure.
Permanent bracing may be specified when:
- The assembly requires long term rigidity
- Structural design includes braced members
- Handling requirements align with final design
When permanent bracing is included, designers should ensure that venting and drainage provisions remain adequate to allow proper zinc flow.
Permanent members should be positioned so they do not trap molten zinc or prevent complete drainage.
Thermal Expansion Considerations
Steel expands when heated and contracts as it cools.
Assemblies containing:
- Unequal thickness sections
- Asymmetrical weld layouts
- Thin plate welded to heavy members
May expand unevenly during galvanizing.
This differential expansion can cause distortion if the fabrication lacks sufficient rigidity.
Bracing helps maintain alignment while the steel reaches equilibrium temperature.
Handling and Lifting Stability
Galvanizing involves lifting and rotating fabrications using cranes or mechanical handling systems.
Bracing may also serve to:
- Improve lifting stability
- Prevent twisting during transport
- Maintain geometry during immersion
Large fabrications must be rigid enough to be safely handled throughout the process.
Proper lifting points and structural reinforcement should be incorporated during fabrication.
Fabrication Design Best Practices
To reduce the need for excessive bracing, designers should consider:
- Symmetrical fabrication geometry
- Balanced member thickness
- Adequate stiffening of thin plate components
- Proper venting and drainage hole placement
These design practices allow the fabrication to move uniformly during heating and cooling cycles.
Early design coordination with the galvanizer can identify potential distortion risks before fabrication begins.
Inspection After Galvanizing
After processing, assemblies should be inspected for:
- Dimensional accuracy
- Structural alignment
- Coating thickness and coverage
Temporary braces can be removed if required once the coating has cooled and the structure has stabilized.
Minor distortion is uncommon when proper fabrication practices are followed.
V&S Galvanizing Design Coordination
At V&S, our hot dip galvanizing services include coordination with fabricators and engineers to review assemblies prior to processing. When large or complex fabrications are involved, we work with project teams to evaluate lifting configuration, bracing needs, and handling stability to ensure safe and successful galvanizing.
If you would like to review fabrication design or bracing considerations for a project, please reach out through our contact page.
Early coordination helps prevent distortion and ensures efficient galvanizing operations.
Bracing of steel fabrications may be required to maintain structural stability during the hot dip galvanizing process. Temporary or permanent bracing can help prevent movement caused by thermal expansion, lifting forces, or asymmetrical fabrication geometry. Proper design coordination, balanced fabrication practices, and appropriate bracing strategies allow steel assemblies to maintain dimensional integrity throughout galvanizing.
Frequently Asked Questions About Bracing Steel Fabrications for Galvanizing
Why might steel fabrications need bracing during galvanizing?
Bracing may be necessary to prevent movement or distortion caused by thermal expansion, handling forces, or uneven structural geometry during immersion in molten zinc.
Is temporary bracing removed after galvanizing?
Yes. Temporary braces installed to stabilize the fabrication during galvanizing can be removed once the structure has cooled and the coating has been applied.
When should permanent bracing be used?
Permanent bracing may be incorporated when it aligns with the final structural design or when additional rigidity is required for both galvanizing and long term structural performance.
Does thermal expansion affect steel during galvanizing?
Yes. Steel expands when heated to galvanizing temperatures and contracts as it cools. Proper fabrication design allows this movement to occur without distortion.
Can bracing interfere with galvanizing?
Bracing must be designed so it does not trap molten zinc or block proper drainage. Venting and drainage considerations must still be maintained.
Are large fabrications more likely to need bracing?
Yes. Long spans, thin plates, and asymmetrical assemblies are more likely to benefit from temporary bracing during processing.
How can distortion risks be minimized?
Balanced fabrication geometry, adequate stiffening, and early design coordination with the galvanizer help minimize distortion risk.
Should galvanizers review fabrication design before processing?
Yes. Early consultation allows potential bracing or handling concerns to be identified and addressed before galvanizing begins.
