Embrittlement Concerns in Galvanized Reinforcing Steel
Hydrogen embrittlement represents a potential degradation mechanism in high-strength or cold-worked steel subjected to hot-dip galvanizing. While relatively uncommon in properly specified reinforcing bar applications, certain conditions—particularly severe cold working from tight bending operations—can increase embrittlement susceptibility. Understanding when embrittlement testing is appropriate, how standard test procedures apply to pre-bent reinforcement, and the modified testing methodology for evaluating already-bent bars enables informed quality assurance decisions that ensure structural steel integrity.
Hydrogen Embrittlement Mechanism
Hydrogen embrittlement occurs when atomic hydrogen diffuses into steel's microstructure during chemical processing, accumulating at grain boundaries and internal defects where it reduces the metal's resistance to crack propagation under tensile stress.
Hydrogen Introduction During Galvanizing
The hot-dip galvanizing process involves several stages where hydrogen generation occurs:
Acid Pickling: Steel surfaces are cleaned in hydrochloric or sulfuric acid solutions to remove mill scale and rust. The acid-iron reaction generates hydrogen gas at the steel surface:
Fe + 2HCl → FeCl₂ + H₂↑
While most hydrogen evolves as gas bubbles, a fraction enters the steel in atomic form, diffusing into the microstructure.
Flux Contact: After pickling, steel is coated with zinc ammonium chloride flux solution. Flux chemistry can contribute additional hydrogen if residual acidity exists or if flux decomposes during drying.
Zinc Bath Immersion: At galvanizing temperatures (approximately 840°F/450°C), any remaining flux or contaminants may thermally decompose, potentially generating additional hydrogen.
Critical Material Conditions
Not all steel is susceptible to hydrogen embrittlement. Vulnerability increases with:
High Tensile Strength: Steel with tensile strength exceeding approximately 150 ksi (1030 MPa) shows elevated embrittlement risk. Conventional reinforcing bar typically has yield strength of 40-75 ksi (275-520 MPa), well below this threshold.
Residual Tensile Stress: Cold working operations including bending induce residual tensile stresses in steel, particularly at the bend's outer fiber where maximum tensile strain occurs.
Hardened Microstructures: Quenched and tempered steels or steel with hardened zones from welding exhibit greater susceptibility than annealed or normalized microstructures.
Constrained Geometries: Tight bend radii create severe stress concentrations that can initiate crack propagation if embrittlement occurs.
When Embrittlement Testing Is Unnecessary
ASTM A123, "Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products," does not mandate embrittlement testing for reinforcing bar applications under normal circumstances. Several conditions eliminate or substantially reduce embrittlement risk:
Appropriate Steel Grades
Standard reinforcing bar produced to ASTM A615, A706, or similar specifications uses carbon steel grades with moderate strength levels and ductile microstructures exhibiting low embrittlement susceptibility. These materials routinely undergo galvanizing without embrittlement incidents.
Recommended Bend Radii
ASTM A767, "Standard Specification for Zinc-Coated (Galvanized) Steel Bars for Concrete Reinforcement," establishes minimum finished bend diameter requirements based on bar size:
Table 2 Minimum Bend Diameter Requirements:
- Bar sizes #3 through #8: 6 × bar diameter minimum bend diameter
- Bar sizes #9 through #11: 8 × bar diameter minimum bend diameter
- Bar sizes #14 and #18: 10 × bar diameter minimum bend diameter
These specifications ensure bend radii remain large enough that cold working strains stay below levels inducing embrittlement susceptibility even after galvanizing. Reinforcing bars bent to or exceeding these minimum diameters before galvanizing typically require no embrittlement verification.
Absence of Risk Indicators
When steel material certifications confirm appropriate chemistry and strength levels, fabrication records document compliance with minimum bend radii, and no visible cracking or damage exists after galvanizing, embrittlement testing serves no practical purpose.
Conditions Warranting Embrittlement Testing
Several scenarios justify embrittlement evaluation despite general low risk:
Tight Bend Radii Below Minimum Standards
Project constraints occasionally necessitate bend radii tighter than ASTM A767 minimum recommendations. These tight bends impose severe cold working, generating high residual tensile stresses and potentially creating embrittlement vulnerability. Such situations warrant testing to verify adequate ductility retention after galvanizing.
Uncertain Material Properties
When reinforcing bar material certifications are unavailable or incomplete, or when bars originate from unfamiliar suppliers without established performance history, embrittlement testing provides objective verification of galvanizing suitability.
High-Strength or Specialty Steels
Applications specifying high-strength reinforcing grades, specialty alloys, or bars subjected to heat treatment require embrittlement assessment since these materials may exceed typical reinforcement embrittlement resistance.
Evidence of Galvanizing Process Issues
If galvanized bars exhibit surface cracking, unusual brittleness during handling, or fracture during normal construction operations, immediate embrittlement testing helps determine whether the failures result from embrittlement versus other causes such as material defects or mechanical damage.
Critical Structural Applications
High-consequence structures where reinforcement failure would produce catastrophic results may justify embrittlement testing even when standard risk factors are absent, providing additional quality assurance documentation.
ASTM A143: Standard Embrittlement Testing Guidance
ASTM A143, "Standard Practice for Safeguarding Against Embrittlement of Hot-Dip Galvanized Structural Steel Products and Procedure for Detecting Embrittlement," establishes industry-consensus guidance for embrittlement prevention and detection.
Purpose and Scope
A143 serves as a practice document rather than a detailed test specification. It provides:
- Identification of steel conditions increasing embrittlement risk
- Recommendations for material selection and fabrication practices minimizing embrittlement probability
- General guidance for conducting comparison tests detecting embrittlement when it occurs
- Interpretation criteria for test results
The practice applies broadly to structural steel products including reinforcing bar, though specific test procedures require adaptation for different product forms.
Standard Comparison Bend Test Principle
ASTM A143 recommends comparing galvanized steel behavior against equivalent non-galvanized control specimens through bend testing. The fundamental approach:
- Specimen Selection: Obtain two identical steel specimens from the same material heat, ideally adjacent pieces from the same bar or section.
- Selective Galvanizing: Subject one specimen to the complete galvanizing process while retaining the second specimen in as-received (black) condition.
- Identical Bend Testing: Bend both specimens—galvanized and black—using identical parameters: same bend radius, same bend angle, same loading rate.
- Comparative Assessment: Compare the specimens' bending behavior. The galvanized specimen should not exhibit reduced ductility, premature cracking, or brittle fracture compared to the black control specimen.
- Interpretation: If the galvanized specimen performs equivalently to or better than the black specimen, no embrittlement has occurred. If the galvanized specimen shows reduced ductility or cracks while the black specimen remains intact, embrittlement is indicated.
This comparison approach isolates the galvanizing process effect by holding all other variables (material properties, specimen geometry, bend severity) constant.
Standard Test Limitations for Pre-Bent Bars
The ASTM A143 standard comparison bend test assumes testing straight, as-received steel specimens. However, reinforcing bar for concrete construction frequently requires bending to complex configurations before galvanizing to achieve specified placement geometry. These pre-bent bars present a testing challenge: they have already undergone the cold working that creates embrittlement risk, and arrive at the galvanizing facility in bent rather than straight condition.
Standard bend testing of straight specimens does not replicate the stress state and cold working history of actual fabricated bars, limiting test relevance. A modified testing approach becomes necessary to evaluate embrittlement susceptibility in pre-bent reinforcement.

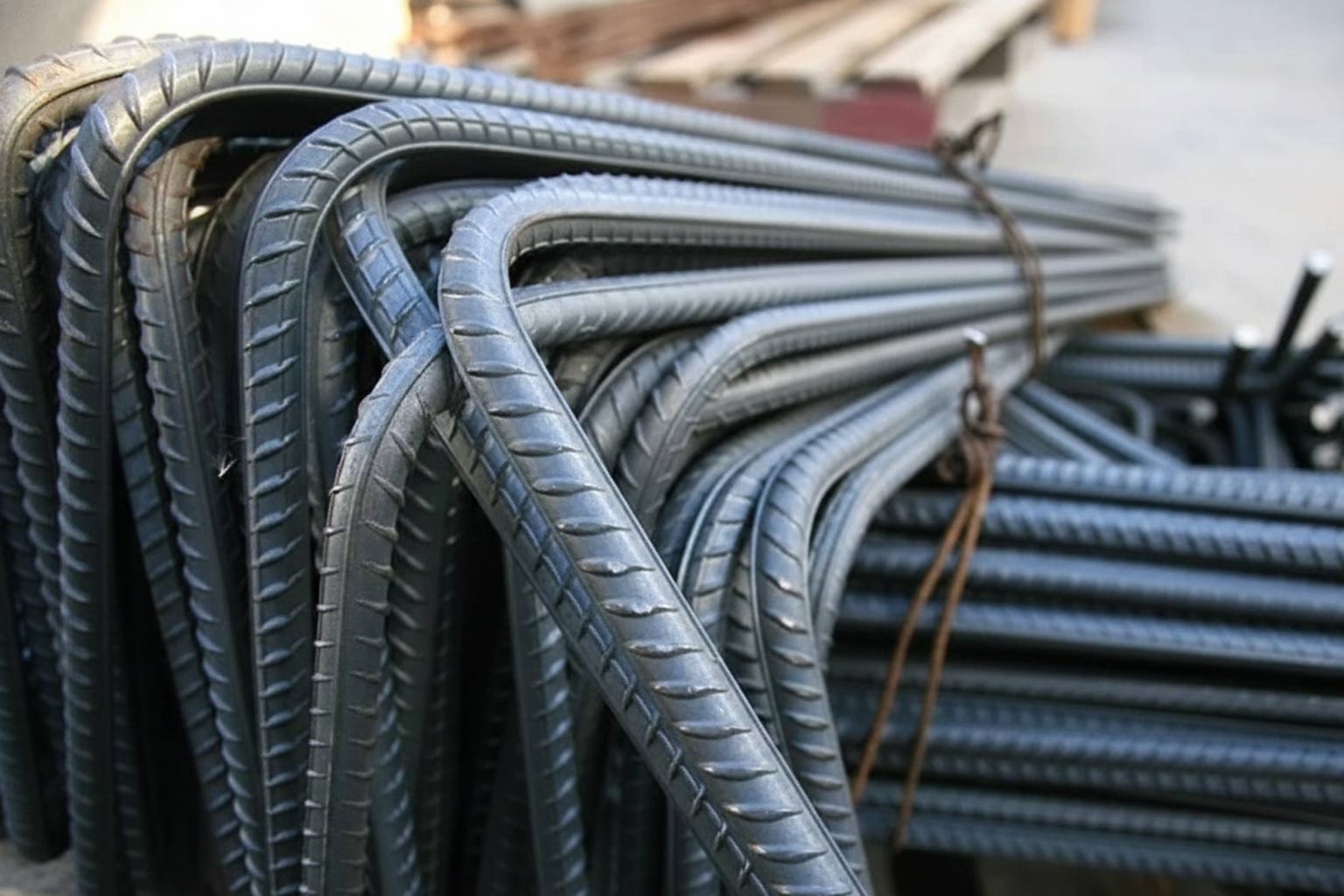

Modified Embrittlement Test for Pre-Bent Bars
The modified test procedure maintains the fundamental ASTM A143 comparison principle while adapting methodology for already-bent reinforcing bar:
Test Specimen Preparation
Parallel Fabrication:
- Select two reinforcing bars from the same material heat (verify through mill certifications or bar identification markings)
- Bend both bars identically to the same configuration required for final project installation
- Use identical bend radii, bend angles, and fabrication equipment for both bars
- Document the fabrication parameters including bend diameter, angle, and number of bends per bar
This parallel fabrication ensures both test specimens—one destined for galvanizing, one remaining black—begin with identical geometry and cold working history.
Selective Processing:
- Subject one bent specimen to complete hot-dip galvanizing per normal production procedures
- Retain the second bent specimen in black (ungalvanized) condition as a control
- Handle both specimens similarly to prevent differential mechanical damage
Comparison Bend Testing Procedure
After galvanizing, both specimens undergo additional bending to evaluate retained ductility:
Further Bending Application:
- Continued Bending Direction: Bend each specimen further in the same direction as the initial fabrication bends (do not reverse-bend or unbend). This additional cold working increases tensile strain on the bend's outer surface where embrittlement effects would manifest most severely.
- Identical Bend Parameters: Apply identical additional bending to both specimens:
- Same bend radius (can use the original fabrication bend radius or larger radius—precision matching is less critical than applying similar severity)
- Same angular increment (suggested 30-45 degrees additional bend angle)
- Same loading rate and method
- Continue until reaching 180-degree total bend angle or specimen failure, whichever occurs first
- Observation During Testing: Carefully observe both specimens during bending, watching for:
- Surface crack initiation location and progression
- Fracture or complete separation
- Coating behavior (does galvanized coating crack, peel, or remain adherent?)
- Any audible cracking or popping sounds indicating internal fracture
Pass/Fail Criteria
Acceptable Performance (No Embrittlement):
The galvanized specimen must demonstrate ductility equal to or greater than the black control specimen. Specifically:
- If the black specimen reaches 180-degree bend without cracking, the galvanized specimen must similarly reach 180 degrees without cracking
- If the black specimen cracks at a specific bend angle, the galvanized specimen may crack at the same angle or later but must not crack at a lesser angle
- The galvanized specimen shall not exhibit brittle fracture while the black specimen remains intact
Minor zinc coating cracking at bend locations is acceptable and expected—the test evaluates steel substrate ductility, not coating flexibility.
Unacceptable Performance (Embrittlement Indicated):
Embrittlement is indicated if:
- The galvanized specimen cracks before the black specimen during identical additional bending
- The galvanized specimen exhibits brittle, sudden fracture while the black specimen shows ductile behavior with gradual crack propagation
- The galvanized specimen fails to reach bend angles that the black specimen achieves
Any indication of reduced ductility in the galvanized specimen suggests embrittlement has occurred during processing.
Test Implementation Considerations
Sample Size and Replication
While a single comparison test (one galvanized specimen, one black control) provides meaningful information, testing multiple specimen pairs improves confidence:
Minimum Testing: One pair (galvanized and control) for initial assessment Recommended Testing: Three pairs to account for material variability Extensive Testing: Five or more pairs for critical applications or when initial results show borderline performance
Bend Application Methods
Several methods can apply the additional test bending:
Hydraulic or Mechanical Bending Machines: Provides controlled, repeatable bending with adjustable radius and angle. Optimal for standardized testing.
Manual Bending: Acceptable for field testing or when automated equipment is unavailable. Requires care to ensure comparable bend application to both specimens.
Bend Angle Measurement: Use protractors, angle gauges, or digital inclinometers to verify equivalent bending applied to both specimens.
Temperature Considerations
Conduct comparison testing at similar temperatures for both specimens (room temperature is standard). Temperature significantly affects steel ductility; testing one specimen hot and another cold produces invalid comparison.
Documentation
Comprehensive test documentation should include:
- Material certifications or mill test reports for test specimens
- Initial fabrication bend parameters (radius, angle, location)
- Photographs of specimens before and after galvanizing
- Additional test bend parameters applied
- Bend angles at which cracking or failure occurred (if any)
- Photographs documenting final condition of both specimens
- Test date, personnel, and witnessing parties
- Pass/fail determination with technical justification
Interpreting Test Results
Clear Pass Results
When galvanized and black specimens both reach 180-degree bending without cracking or show equivalent crack initiation points, interpretation is straightforward: no embrittlement has occurred, and the galvanizing process is suitable for the tested material and fabrication configuration.
Production can proceed with confidence that similar bars will perform adequately.
Clear Fail Results
If the galvanized specimen cracks significantly earlier than the black control or exhibits obviously brittle behavior, embrittlement is confirmed. Several response options exist:
Alternative Processing: Investigate whether modified pickling procedures, different flux chemistry, or other process adjustments can reduce hydrogen introduction.
Material Substitution: Specify alternative reinforcing bar grades with greater embrittlement resistance or lower strength levels.
Fabrication Modification: Increase bend radii to reduce cold working severity, potentially eliminating embrittlement susceptibility.
Alternative Corrosion Protection: Consider epoxy-coated rebar, stainless steel reinforcement, or other protection methods not involving galvanizing process.
Borderline Results
Occasionally test results show subtle differences—perhaps the galvanized specimen cracks at 170 degrees while the black specimen reaches 175 degrees. Such marginal differences warrant careful interpretation:
Statistical Variability: Some performance variation exists even among nominally identical specimens due to material variability.
Engineering Judgment: Assess whether observed differences are sufficiently significant to indicate problematic embrittlement versus normal material scatter.
Additional Testing: Conduct additional specimen pairs to better characterize performance and reduce uncertainty.
Risk Assessment: Consider the structural consequences of potential ductility reduction. Critical applications may reject marginal results as a precaution; less critical applications may accept marginal differences.
Preventive Measures Minimizing Embrittlement Risk
Rather than relying on post-galvanizing testing to detect embrittlement, proactive measures during material selection and processing minimize risk:
Material Specification
Grade Selection: Specify conventional carbon steel reinforcing grades (ASTM A615 Grade 60, ASTM A706) with documented successful galvanizing history rather than high-strength specialty grades.
Strength Limits: For projects requiring galvanized reinforcement, consider specifying maximum tensile strength limits (e.g., not to exceed 90 ksi) to ensure adequate embrittlement resistance.
Mill Certification Review: Review steel mill test reports before galvanizing to verify chemistry and strength properties fall within acceptable ranges.
Fabrication Guidelines
Minimum Bend Radii: Strictly adhere to ASTM A767 minimum bend diameter requirements. Avoid requests for tighter bends unless absolutely necessary for structural configuration.
Bend Sequence: Complete all bending operations before galvanizing. Post-galvanizing bending is not recommended for reinforcing bar due to coating damage risk and cumulative cold working effects.
Quality Control: Inspect bent bars before galvanizing for pre-existing cracks or damage that could be misattributed to embrittlement after processing.
Galvanizing Process Controls
Pickling Optimization: Use pickling parameters achieving adequate surface cleaning with minimum hydrogen generation:
- Avoid excessively strong acid concentrations
- Minimize pickling duration to time necessary for scale removal
- Maintain acid bath temperature within recommended ranges
- Consider inhibited acid formulations reducing hydrogen evolution
Hydrogen Bakeout: For high-risk applications, consider thermal stress relief at 375-400°F for several hours after galvanizing to enable hydrogen diffusion from the steel before it causes embrittlement damage.
Process Documentation: Maintain records of pickling parameters, flux chemistry, and galvanizing temperatures enabling process investigation if embrittlement issues arise.
Relationship to Other Testing
The modified embrittlement test for bent bars serves a distinct purpose from other quality verification testing:
Versus Standard Bend Tests
Standard bend tests (ASTM A370) evaluate material ductility through prescribed bending to specific angles and radii. These tests characterize inherent material properties but do not specifically target embrittlement detection through galvanized versus non-galvanized comparison.
Versus Coating Adhesion Tests
Coating adhesion testing per ASTM A123 evaluates coating-to-substrate bonding but does not assess substrate ductility or embrittlement. Coatings may adhere adequately to embrittled steel that subsequently exhibits brittle fracture under service loads.
Versus Coating Thickness Measurement
Thickness testing verifies corrosion protection adequacy but provides no information regarding mechanical properties or embrittlement.
The modified embrittlement test uniquely evaluates whether galvanizing has compromised steel ductility—a failure mode not detected by other standard quality tests.
Field Application Considerations
Test results obtained from sample specimens must be applied judiciously to production bar populations:
Material Consistency
Test results apply confidently only to reinforcing bar from the same material heat as test specimens. Bars from different heats—even from the same supplier—may exhibit different galvanizing response due to chemistry variations.
For large projects consuming multiple steel heats, consider testing specimens from each heat or at minimum from a representative sampling of heats.
Fabrication Consistency
Test results presume production bars receive bending identical to test specimens. If production includes tighter bend radii, different bend locations, or more complex configurations than test specimens, additional testing addressing the most severe production conditions may be warranted.
Process Consistency
Test specimens should undergo the same galvanizing process parameters as production bars. If process conditions change—different pickling baths, alternative flux chemistry, modified immersion procedures—the test results may not remain valid, necessitating retesting under new conditions.
Standards and Specification References
Several industry standards provide relevant guidance:
ASTM A143: Primary reference for embrittlement detection methodology and safeguarding practices
ASTM A767: Specification for galvanized reinforcing bar including minimum bend diameter requirements
ASTM A123: General galvanizing specification establishing coating requirements and quality criteria
ASTM A615: Specification for deformed and plain carbon steel bars for concrete reinforcement
ASTM A706: Specification for low-alloy steel deformed and plain bars for concrete reinforcement (often specified when welding is required)
ASTM A370: Standard test methods and definitions for mechanical testing of steel products (includes standard bend test procedures)
Hydrogen embrittlement in galvanized reinforcing bar is relatively uncommon when appropriate steel grades are specified and fabrication follows ASTM A767 minimum bend diameter recommendations. However, tight bend radii below standard minimums, uncertain material properties, or high-strength specialty steels may warrant embrittlement evaluation to ensure adequate ductility retention after processing. ASTM A143 provides general guidance for embrittlement detection through comparison bend testing, though the standard does not explicitly address pre-bent reinforcement. A modified test procedure—involving parallel fabrication of two identical bent bars, galvanizing one while retaining the other as a black control, then bending both further and comparing crack initiation or failure points—enables valid embrittlement assessment for already-bent reinforcement. The galvanized specimen must demonstrate ductility equivalent to or greater than the black control specimen, with acceptable performance meaning the galvanized bar does not crack before the control bar during identical additional bending. Test interpretation requires engineering judgment to distinguish true embrittlement from normal material variability, while comprehensive documentation ensures test validity and traceability. Proactive measures including appropriate material specification, adherence to minimum bend radii, and optimized galvanizing process controls minimize embrittlement risk, though testing provides valuable verification when risk factors are present or critical structural applications demand additional quality assurance. The original AGA knowledge base article on Embrittlement Tests for Bent Rebars provides more context.
