Overcoming Kettle Size Limitations
Hot-dip galvanizing requires complete immersion of steel fabrications in molten zinc to achieve comprehensive corrosion protection. This fundamental requirement creates an apparent size constraint: parts must physically fit within the galvanizing kettle dimensions. However, progressive dipping techniques effectively extend galvanizing capability to articles significantly longer than the kettle itself, providing designers with greater flexibility when specifying corrosion protection for large structural components.
Standard Kettle Dimensions in North America
Understanding typical galvanizing kettle sizes provides context for design decisions. The average hot-dip galvanizing kettle in North America measures approximately 40 feet in length, though 50 to 60-foot kettles are increasingly common at facilities equipped to handle larger structural work. Kettle width and depth vary by facility, with depth typically ranging from 7 to 12 feet depending on the galvanizer's market focus and equipment investment.
These dimensional constraints historically limited galvanizing to articles that could be fully submerged in a single immersion. Progressive dipping technology removes this limitation for many applications.
Progressive Dipping Methodology

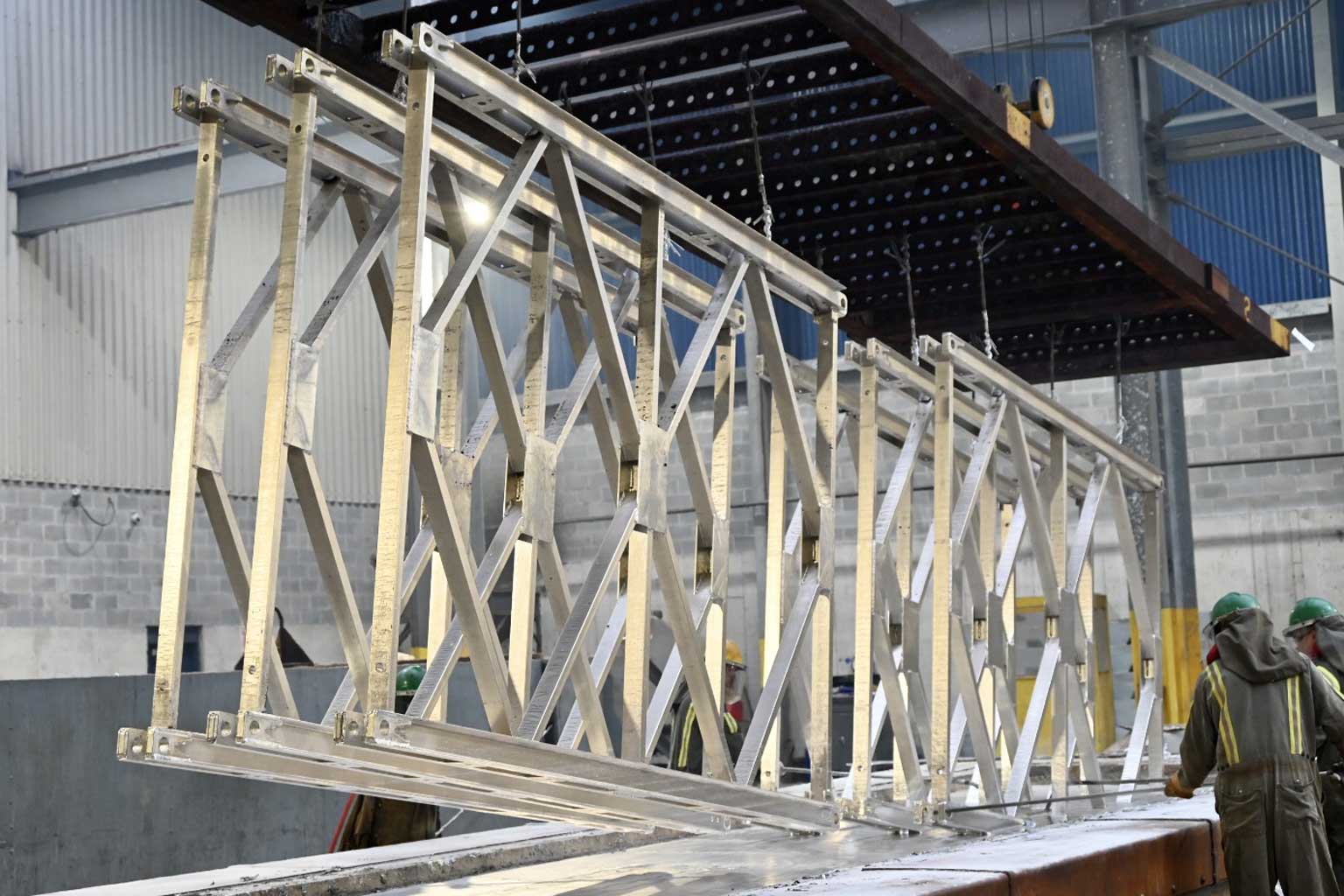

Progressive dipping employs sequential immersion to coat articles longer than the kettle. The process involves partially submerging one end of the fabrication at an angle, allowing the molten zinc to coat all exposed surfaces. After the initial coating solidifies, workers rehang the article and immerse the opposite end, creating a small overlapping zone where both dipping sequences meet.
The critical requirement for progressive dipping success: at least half the article length must fit within the available kettle length when positioned at the optimal angle. This geometric relationship theoretically allows galvanizing of articles approaching twice the kettle length under ideal conditions.
The Geometric Model
Calculating progressive dipping feasibility requires understanding the spatial relationships between the article, molten zinc bath, and kettle structure. Engineers simplify these calculations by modeling the article as a rectangular box defined by three dimensions: length, width, and height.
The kettle's usable volume differs from its total dimensions due to operational constraints. Bottom dross—the accumulated iron-zinc alloy particles that settle on the kettle floor—consumes approximately one foot of depth. Similarly, the zinc surface sits below the kettle rim to prevent overflow, creating a freeboard zone. These factors reduce the effective working volume available for immersing articles.
Critical Parameters for Progressive Dip Calculations
Accurate progressive dipping assessment requires specific dimensional data:
Article Parameters:
- Overall length (longest dimension)
- Width (perpendicular to length)
- Height (vertical dimension when oriented for dipping)
Kettle Parameters:
- Internal length
- Internal width
- Total depth
- Dross layer thickness (typically 1 foot)
- Freeboard height (zinc surface to kettle rim)
The relationship between these parameters determines the maximum rigging angle, which directly affects whether the article can be successfully immersed while avoiding interference with the kettle walls, floor, or surface.
Engineering Tools for Progressive Dip Analysis
Two complementary resources assist engineers and fabricators in evaluating progressive dipping feasibility:
Progressive Dip Charts
These reference charts provide quick estimates of maximum article length based on article height and known kettle dimensions. The charts assume article width remains less than kettle width and incorporate standard allowances: one foot of unusable depth for bottom dross and minimal freeboard spacing.
Four distinct charts address common design scenarios:
- 1-foot article height
- 2-foot article height
- 3-foot article height
- 4-foot article height
Each chart presents maximum achievable article lengths across a range of typical kettle lengths and depths, enabling rapid feasibility assessments during preliminary design phases.
Progressive Dip Calculator
The progressive dip calculator offers detailed analysis for specific fabrication geometries and kettle configurations. Engineers input precise article dimensions and kettle specifications to receive comprehensive output data:
Feasibility Determination: Binary confirmation whether progressive dipping can successfully coat the specified article in the available kettle
Rigging Angle Range: Minimum and maximum angles at which the article must be positioned for successful immersion without interference
Orientation Analysis: Evaluation of whether rotating the article 90 degrees (exchanging width and height dimensions) improves progressive dipping success
Visual Modeling: Two-dimensional graphical representation showing the article positioned within the kettle at optimal angles, with dimensional annotations clarifying the geometric relationships
This calculator transforms complex trigonometric calculations into accessible design guidance, reducing the engineering time required to evaluate progressive dipping options.
Beyond Geometric Feasibility
While geometric calculations confirm whether an article physically fits within a kettle using progressive dipping methods, additional practical considerations affect real-world implementation:
Overhead Clearance: The article extends significantly above the kettle during angled immersion. Available headroom in the galvanizing facility limits the maximum height of articles that can be manipulated safely.
Rigging Infrastructure: Crane capacity and rigging point locations must accommodate the article's weight and required positioning angles. Facilities vary widely in their overhead handling capabilities.
Part Weight Distribution: Articles with uneven weight distribution may require specialized rigging to maintain proper orientation during immersion.
Drain and Vent Requirements: Progressive dipping complicates drainage as different sections immerse at different times. Proper venting and drainage hole placement becomes more critical to prevent zinc entrapment.
These operational factors require direct consultation with the galvanizing facility before finalizing designs that depend on progressive dipping.
Design Phase Collaboration
Engineers should engage galvanizing facilities early in the design process when considering progressive dipping for large fabrications. This collaboration addresses:
- Confirmation of kettle dimensions (length, width, depth)
- Available overhead clearance in the facility
- Crane capacity and rigging limitations
- Facility experience with progressive dipping similar articles
- Any geometric features that may complicate angled immersion
- Alternative modular design approaches if progressive dipping proves infeasible
Early engagement prevents costly redesigns after fabrication begins and ensures realistic expectations regarding galvanizing capability.
Modular Design Alternatives
When progressive dipping proves impractical or unavailable, modular design offers an alternative approach. Breaking large assemblies into smaller components that can be individually galvanized and then field-assembled maintains corrosion protection while accommodating kettle limitations.
Modular approaches require careful attention to connection details, ensuring field joints receive adequate protection through proper design of splice plates, bolt assemblies, and touch-up procedures for field welds.
Future Technology Development
The progressive dip calculator represents current technology for geometric feasibility analysis. Development of mobile applications could enhance usability through:
- Three-dimensional modeling showing actual article geometry within the kettle
- Real-time manipulation of article orientation
- Direct integration with galvanizer kettle dimension databases
- Augmented reality visualization for fabrication shop layout planning
Engineers interested in these enhanced capabilities should communicate their needs to support continued tool development.
Progressive dipping significantly extends the size range of fabrications that can receive hot-dip galvanized corrosion protection. By understanding the geometric relationships between article dimensions and kettle capacity, engineers can effectively utilize available calculation tools to assess feasibility during the design phase. The combination of progressive dip charts for quick estimates and detailed calculators for precise analysis enables informed decisions about galvanizing large structural elements. However, geometric feasibility represents only the first step—successful implementation requires close collaboration with galvanizing facilities to address practical considerations including rigging capacity, overhead clearance, and operational experience with progressive dipping techniques.
