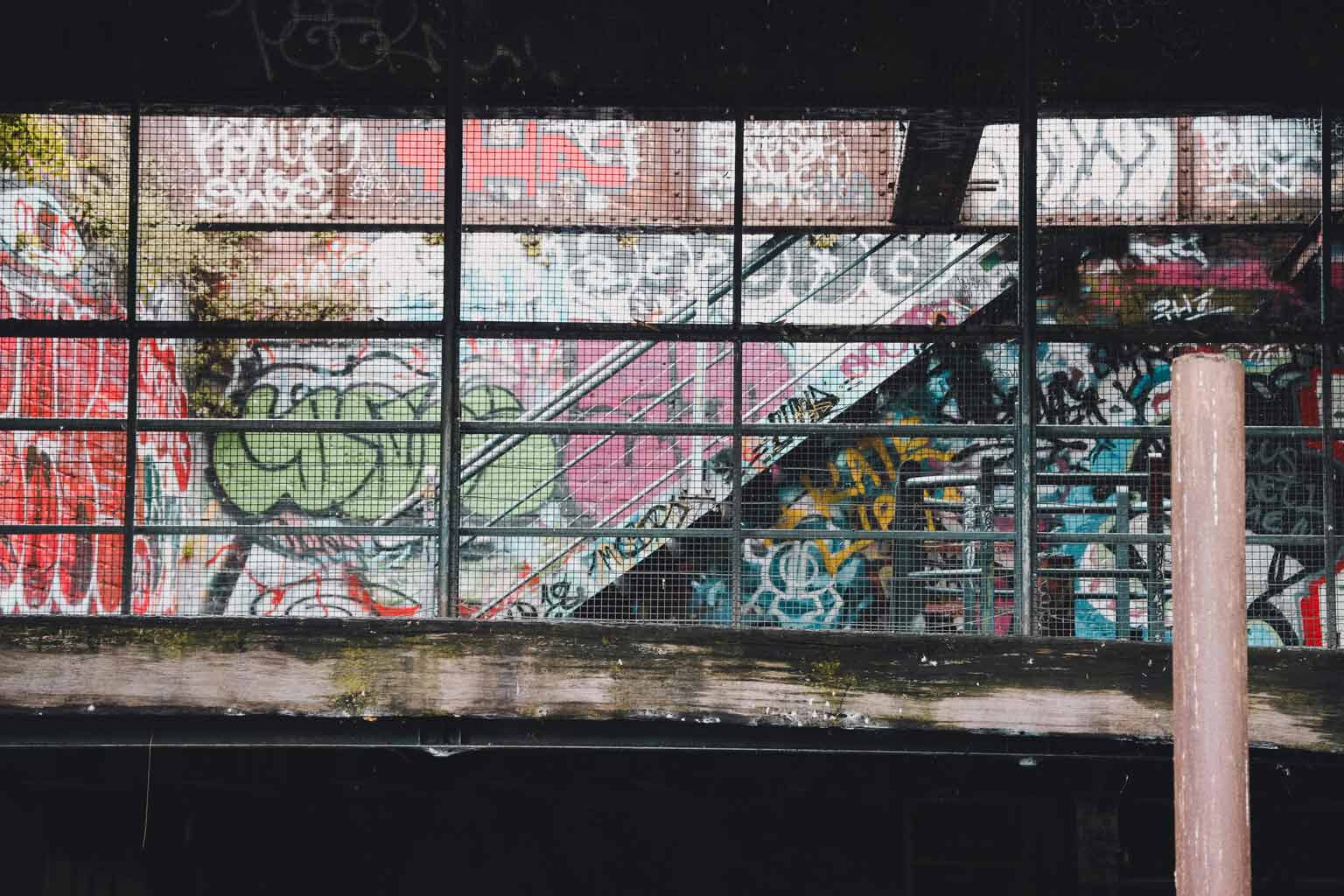

The Graffiti Challenge for Public Infrastructure
Urban and suburban public infrastructure—pedestrian bridges, sound barriers, transit facilities, park structures, highway overpasses, light rail stations, and utility enclosures—faces persistent vandalism through unauthorized graffiti application creating aesthetic degradation, community perception impacts, and maintenance cost burdens for property owners. Traditional organic coating systems (alkyd enamals, epoxies, polyurethanes) specified for steel corrosion protection demonstrate particular vulnerability to graffiti damage because aggressive solvents and mechanical scrubbing required for paint removal inevitably attack underlying protective coatings, creating thin spots, discoloration, and compromised corrosion resistance necessitating expensive touch-up or complete recoating.
Hot-dip galvanized steel provides unique advantages for graffiti-prone applications through the zinc coating's metallurgically-bonded inorganic nature, enabling aggressive cleaning methods that remove spray paint, markers, and other graffiti media without compromising the zinc-iron alloy layers providing corrosion protection. The zinc coating's inherent surface characteristics—including relatively low paint adhesion on unprepared galvanized surfaces—often result in poor graffiti adhesion enabling simple removal through power washing or mild cleaning, while the coating's tolerance for solvents, alkaline cleaners, and mechanical action allows successful removal of tenacious graffiti without protective coating degradation.
Why Painted Steel Fails the Graffiti Test
Organic Coating Vulnerability
Paint System Composition:
Protective paint coatings comprise:
- Resin binders: Epoxy, polyurethane, alkyd, acrylic polymers
- Pigments: Color and corrosion inhibition
- Solvents: Carrier liquids enabling application
- Additives: Flow agents, UV stabilizers, anti-settling compounds
Chemical Similarity Problem:
Graffiti paints use similar chemistry:
- Alkyd and acrylic spray paints
- Solvent-based formulations
- Pigment suspensions in resin binders
Result: Solvents removing graffiti also attack protective coating
Removal Dilemma
Aggressive Solvents:
Effective graffiti removers (acetone, MEK, xylene, paint strippers) soften and dissolve graffiti but simultaneously:
- Swell protective coating
- Dissolve binder resins
- Create surface roughness
- Reduce gloss and color uniformity
- Thin coating thickness
Mechanical Abrasion:
Scrubbing with abrasive pads removes graffiti but:
- Scratches protective coating surface
- Removes top coat layers
- Exposes primer or substrate
- Creates corrosion initiation sites
Typical Outcome:
Graffiti removed but protective coating damaged:
- Visible discoloration and texture change
- Compromised corrosion barrier
- Requires touch-up painting or complete recoating
- Cycle repeats with each graffiti incident
Anti-Graffiti Clear Coats
Sacrificial Approach:
Clear anti-graffiti coatings over paint:
- Provide sacrificial layer tolerating solvents
- Graffiti removed by dissolving clear coat
- Reapply clear coat after each cleaning
Limitations:
- Additional cost for initial application
- Repeated reapplication labor and materials
- Limited service life (2-5 cleaning cycles typical)
- May yellow or degrade with UV exposure
- Not permanent solution
Hot-Dip Galvanizing Advantages for Graffiti Resistance
Metallurgical Bond Durability
Inorganic Coating System:
Unlike organic paints, zinc coating comprises:
- Zinc-iron intermetallic alloy layers (gamma, delta, zeta)
- Pure zinc eta layer at surface
- Metallurgically fused to steel substrate
Chemical Resistance:
Zinc coating unaffected by most organic solvents:
- Acetone, MEK, toluene, xylene have no effect on metallic zinc
- Cleaning solvents remove graffiti without coating damage
- Unlimited cleaning cycles without degradation
Mechanical Durability:
Zinc-iron alloy layers harder than mild steel:
- Moderate scrubbing does not damage coating
- Resistant to abrasion from cleaning
- Maintains corrosion protection after cleaning
Poor Graffiti Adhesion
Surface Chemistry:
As-galvanized zinc surfaces exhibit:
- Low surface energy (zinc oxide layer)
- Smooth texture in many cases
- Minimal mechanical anchor profile
Result:
Spray paint and markers demonstrate poor adhesion:
- Paint may not wet surface uniformly
- Weak interfacial bonding
- Often peels or chips easily
- May wash off with water pressure alone
Advantage:
Graffiti removal easier on galvanized versus properly prepared painted surfaces where good adhesion intended.
Graffiti Removal Methods
Method 1: Power Washing (First Attempt)
Rationale:
Capitalize on poor graffiti adhesion to galvanized surfaces—often simplest, least invasive approach.
Equipment:
Pressure Washer:
- Pressure: 1,500-3,000 PSI typical
- Flow rate: 2-4 GPM
- Hot water preferred (enhances cleaning)
- 25° spray tip (concentrated but not cutting)
Procedure:
- Test Area:
- Select inconspicuous location
- Verify graffiti removal without coating damage
- Systematic Cleaning:
- Maintain 12-18 inch distance from surface
- Use sweeping motion overlapping passes
- Work from top to bottom
- Avoid prolonged concentration on single spot
- Inspection:
- Evaluate graffiti removal effectiveness
- Check for any coating damage (should be none)
- Repeat if necessary
Effectiveness:
- Fresh graffiti: Often 80-100% removal
- Aged graffiti: Variable (may require chemical assistance)
- Porous markers: Less effective than spray paint
Advantages:
- No chemicals required
- Environmentally friendly
- Fast for large areas
- No residue disposal
Limitations:
- May not remove all graffiti types
- Requires water source and power
- Runoff considerations for urban areas
Method 2: Solvent Cleaning
When Required:
Power washing insufficient—graffiti adhesion too strong or surface too irregular for water pressure effectiveness.
Solvent Options:
Acetone:
- Effectiveness: Excellent for most spray paints and markers
- Flash point: 0°F (highly flammable)
- Evaporation: Very rapid
- Safety: Requires ventilation, no ignition sources
- Environmental: VOC emissions
Methyl Ethyl Ketone (MEK):
- Effectiveness: Excellent, slightly stronger than acetone
- Flash point: 16°F (flammable)
- Evaporation: Rapid
- Safety: Similar to acetone, additional health hazards
- Availability: May have purchasing restrictions
Commercial Paint Removers/Thinners:
- Effectiveness: Varies by formulation
- Common ingredients: Acetone, toluene, xylene, methanol blends
- Flash point: Typically 40-105°F
- Safety: Follow manufacturer MSDS guidance
- Convenience: Ready-to-use formulations
Biodegradable Graffiti Removers:
- Effectiveness: Good for many graffiti types
- Ingredients: Soy esters, citrus terpenes, surfactants
- Flash point: >200°F (lower fire hazard)
- Environmental: Lower VOC, safer disposal
- Application time: May require longer dwell time
Application Procedure:
- Personal Protective Equipment:
- Chemical-resistant gloves (nitrile or neoprene)
- Safety glasses or face shield
- Respirator with organic vapor cartridge (if poor ventilation)
- Protective clothing
- Surface Preparation:
- Remove loose debris with brush or water
- Dry surface if wet
- Solvent Application:
For Small Areas:
- Saturate clean cloth with solvent
- Wipe graffiti using moderate pressure
- Rotate to clean cloth area frequently
- Repeat until graffiti removed
- For Large Areas:
- Apply solvent with low-pressure sprayer or roller
- Allow 2-5 minute dwell time
- Scrub with non-metallic brush or pad
- Wipe with clean cloths
- Rinsing:
- Rinse thoroughly with clean water
- Remove all solvent residue
- Critical for preventing future corrosion issues
- Inspection:
- Verify complete graffiti removal
- Check zinc coating condition (should be unchanged)
- Repeat if necessary
Important Precautions:
Do NOT Use Abrasive Pads:
Steel wool, metallic scrubbers, or aggressive abrasive pads can:
- Remove zinc from coating surface
- Create bright metallic appearance (zinc removal)
- Reduce coating thickness
- Compromise corrosion protection
Safe Alternatives:
- Non-metallic scrub brushes
- Nylon scrub pads (medium grade)
- Plastic bristle brushes
- Soft cloths with solvent
Method 3: Alkaline Cleaners
Chemistry:
Strong alkaline solutions (pH 11-14) attack graffiti through:
- Saponification of paint resins
- Emulsification of binders
- Surfactant action lifting paint from surface
Common Products:
Sodium Hydroxide (Caustic Soda) Solutions:
- Concentration: 2-10% typical
- Very effective paint remover
- Requires careful handling
Commercial Alkaline Graffiti Removers:
- Formulated with surfactants and emulsifiers
- Ready-to-use or concentrate
- Often safer than pure caustic
Caution with Galvanized Steel:
Zinc Reactivity:
Zinc metal reacts with strong alkalis:
Zn + 2NaOH + 2H₂O → Na₂Zn(OH)₄ + H₂
Result: Zinc corrosion and coating loss
Safe Application Protocol:
- Use Recommended Concentrations:
- Follow product instructions explicitly
- Do not exceed manufacturer-specified strength
- Limit Contact Time:
- Apply alkaline cleaner
- Dwell time: Maximum 5-10 minutes
- Do NOT allow prolonged exposure
- Immediate Thorough Rinsing:
- Flush with copious clean water
- Ensure complete alkali removal
- Critical: Incomplete rinsing causes continued zinc attack
- Inspection:
- Check for any coating dulling or discoloration
- If observed, avoid alkaline cleaners—use solvents instead
When to Avoid:
- Aged weathered galvanizing (more reactive)
- Thin coatings (<2 mils)
- Extended dwell times unavoidable
- Inadequate rinsing water supply
Cleaning Product Selection Guidance
AGA Research: Approved Cleaners
The American Galvanizers Association technical note "Cleaning of Contaminated Galvanized Surfaces" identifies products tested for galvanized steel compatibility:
Suitable Products Include:
- Simple Green (diluted per directions)
- Formula 409
- Fantastik
- Various commercial citrus-based cleaners
- Biodegradable degreasers
Testing Methodology:
Products applied to galvanized surfaces:
- Various dwell times evaluated
- Rinsing performed
- Surface appearance and zinc loss measured
- Staining and discoloration assessed
Results:
Properly applied mild alkaline and citrus-based cleaners demonstrated minimal zinc coating impact when:
- Used at recommended dilutions
- Rinsed thoroughly after cleaning
- Contact time kept reasonable (<30 minutes)
Step-by-Step Comprehensive Removal Procedure
Recommended Approach (Progressive Methods):
Phase 1: Water Cleaning
- Power wash at moderate pressure (1,500-2,000 PSI)
- Evaluate effectiveness
- If successful → Complete
- If unsuccessful → Proceed to Phase 2
Phase 2: Mild Solvent or Biodegradable Remover
- Apply biodegradable graffiti remover or acetone
- Allow appropriate dwell time (2-5 minutes)
- Scrub with non-metallic brush
- Rinse thoroughly with water
- Evaluate effectiveness
- If successful → Complete
- If unsuccessful → Proceed to Phase 3
Phase 3: Aggressive Solvents
- Apply MEK or commercial paint remover
- Shorter dwell time (1-2 minutes)
- Scrub with nylon pad
- Wipe clean
- Rinse thoroughly with water
- Should remove virtually all remaining graffiti
Phase 4: Touch-Up (If Needed)
Rare scenarios where graffiti impossible to remove:
- Consider zinc-rich paint touch-up matching galvanized appearance
- Or accept minor residual staining (does not affect corrosion protection)
What NOT To Do
Prohibited Methods Damaging Zinc Coating:
Sandblasting:
- Removes significant zinc thickness
- Compromises corrosion protection
- Never appropriate for graffiti removal
Grinding or Wire Brushing:
- Abrades zinc coating
- Creates shiny metallic appearance (zinc removal)
- Reduces coating life
Hydrofluoric or Strong Mineral Acids:
- Rapidly dissolve zinc coating
- Extremely hazardous
- No legitimate application for graffiti removal
Prolonged Strong Alkali Exposure:
- Causes zinc corrosion
- Dulls coating appearance
- Reduces thickness
Anti-Graffiti Coatings Over Galvanizing
When to Consider
High-Risk Locations:
- Known repeated vandalism targets
- Difficult access for cleaning
- Highly visible public locations
- Owner preference for additional protection
System Options:
Sacrificial Coatings: Clear coatings designed to be removed with graffiti:
- Wax-based systems
- Acrylic clear coats
- Reapplied after each graffiti removal
Permanent Coatings: Durable systems resisting graffiti adhesion:
- Two-part polyurethane clear coats
- Fluoropolymer coatings
- Graffiti wipes off without coating removal
Application Requirements
Surface Preparation per ASTM D6386:
- Solvent Cleaning: Remove all oils and contaminants
- Light Sweep Blasting: Create 0.5-1.5 mil anchor profile Ensures anti-graffiti coating adhesion
- Application: Follow anti-graffiti coating manufacturer specifications:
- Primer if required
- Clear coat(s) to specified DFT
- Cure per manufacturer requirements
Considerations:
Appearance Change:
- Clear coats alter galvanized appearance
- May enhance or dull natural zinc look
- UV exposure can cause yellowing over time
Maintenance:
- Sacrificial systems require reapplication
- Permanent systems may need cleaning with specific products
- Monitor coating condition over time
Cost:
Initial application: $2-5 per square foot typical
- Preparation labor
- Material costs
- Application labor
Reapplication (sacrificial): $1-3 per square foot per cycle
Long-Term Maintenance Strategy
Rapid Response Importance
Fresh Graffiti:
- Remove within 24-48 hours when possible
- Easier removal when fresh
- Discourages repeat vandalism
Delayed Removal:
- Paint cures fully over days/weeks
- More tenacious adhesion
- Requires stronger solvents or more effort
Preventive Measures
Design Considerations:
Reduce Accessibility:
- Elevated structures beyond easy reach
- Vertical smooth surfaces (harder to paint)
- Landscaping creating natural barriers
Lighting:
- Well-lit areas discourage vandalism
- Motion-activated lighting
Surveillance:
- Camera visibility (actual or dummy)
- Regular patrol presence
Community Engagement:
- Sanctioned mural programs
- Neighborhood watch involvement
- Rapid graffiti removal demonstrating care
Cost Comparison: Galvanized vs. Painted
Galvanized Structure:
Per graffiti incident removal:
- Labor: 1-3 hours (depending on size)
- Materials: $10-50 (solvents, cleaning supplies)
- Total: $100-400 typical
- Coating remains intact—no touch-up required
Painted Structure:
Per graffiti incident:
- Removal attempt: Similar labor and materials
- But coating damaged requiring touch-up:
- Surface preparation: 1-2 hours
- Touch-up painting: 1-3 hours
- Materials: $50-200 (paint, primer, supplies)
- Total: $300-1,000 typical
- Repeated cycles degrade overall coating
- Complete repainting needed eventually: $5-15/ft²
Life-Cycle Advantage:
10 graffiti incidents over 20 years:
Galvanized: $1,000-4,000 total removal costs Painted: $3,000-10,000 removal costs + $X,XXX eventual repainting
Galvanized steel maintenance cost advantage: 50-75% lower
Hot-dip galvanized steel provides superior performance for graffiti-prone public infrastructure applications through the zinc coating's inherent resistance to organic solvents, mechanical cleaning, and moderate alkaline solutions, enabling aggressive graffiti removal using acetone, MEK, commercial paint removers, or biodegradable citrus-based solvents without compromising the metallurgically-bonded zinc-iron alloy layers providing corrosion protection. The galvanized surface's characteristically low paint adhesion—typically problematic for intentional coating application—becomes advantageous for graffiti resistance because spray paint, markers, and other vandalism media demonstrate poor bonding enabling simple removal through power washing alone in many cases, particularly with fresh graffiti applied within days of appearance. Recommended removal procedures follow progressive approach beginning with moderate-pressure power washing (1,500-3,000 PSI), advancing to biodegradable or mild solvent application with non-metallic scrubbing if necessary, and culminating in aggressive solvents (acetone, MEK) for tenacious graffiti, always followed by thorough water rinsing removing chemical residues that could initiate corrosion if left on zinc surfaces. Critical restrictions include avoiding abrasive metallic scrubbing pads, sandblasting, strong mineral acids, and prolonged strong alkali exposure—all of which remove zinc coating thickness compromising corrosion protection—while properly applied cleaning solvents and moderate mechanical action preserve coating integrity through unlimited cleaning cycles. Anti-graffiti clear coatings over galvanized steel provide additional protection option for high-risk locations requiring ASTM D6386 surface preparation including sweep blasting before application, though such coatings prove unnecessary for most applications given galvanizing's inherent cleanability advantages. Life-cycle cost analysis demonstrates galvanized infrastructure maintenance advantages over painted alternatives, with graffiti removal costs 50-75% lower because zinc coating remains intact after cleaning while painted systems require touch-up or repainting after each removal incident, ultimately necessitating complete recoating every 10-20 years versus galvanizing's 75+ year maintenance-free corrosion protection surviving unlimited graffiti removal cycles without protective coating degradation. Learn more about graffiti removal from HDG steel in the original AGA resource article.
