The Role of Passivation in Galvanized Coating Management

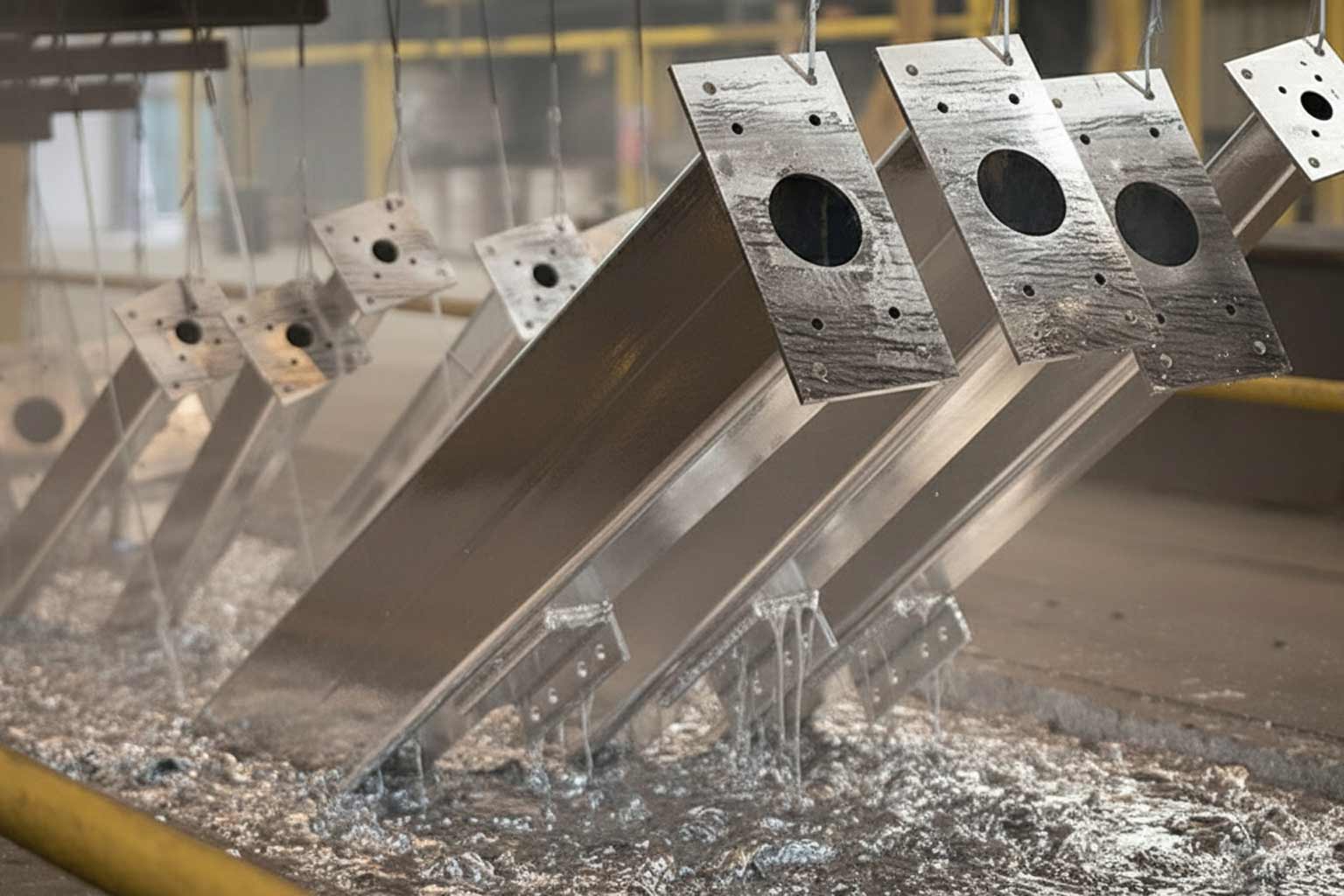

Hot-dip galvanized coatings emerge from the molten zinc bath with a highly reactive surface that undergoes immediate interaction with atmospheric oxygen and moisture. While this reactivity initiates the formation of protective zinc patina under normal service conditions, premature exposure to moisture during storage or transit can produce undesirable aesthetic effects. Passivation treatments—chemical conversion coatings applied immediately after galvanizing—modify surface reactivity to control appearance and corrosion behavior during the critical period between galvanizing and final installation.
Understanding when passivation treatments are beneficial, when they prove detrimental, and how to verify their presence or absence enables appropriate specification decisions and quality control procedures for galvanized steel projects.
Passivation Chemistry and Function
Passivation treatments applied to freshly galvanized steel involve chemical conversion reactions that produce a thin, adherent layer on the zinc surface. This layer alters the surface's electrochemical properties, reducing reactivity with environmental moisture and oxygen while maintaining long-term corrosion protection characteristics.
Mechanism of Protection
The passivation layer functions through several complementary mechanisms:
Barrier Effect: The conversion coating creates a physical barrier reducing direct contact between the zinc surface and corrosive elements during storage and handling.
Surface Stabilization: Chemical modification of the zinc surface reduces its electrochemical potential, decreasing the driving force for corrosion reactions.
Controlled Patination: Passivation treatments allow controlled, uniform surface weathering rather than the irregular staining that can occur with premature moisture exposure.
Sacrificial Consumption: Minor passivation layer degradation during storage protects the underlying zinc coating from more significant reactive consumption.
Types of Passivation Treatments
Several distinct passivation chemistries are employed in the galvanizing industry, each with specific performance characteristics, regulatory considerations, and application contexts:
Hexavalent Chromium Passivation
Traditional chromate passivation treatments utilize hexavalent chromium compounds (chromium VI) to form conversion coatings on zinc surfaces. These treatments provide excellent wet storage stain resistance and have been the industry standard for decades.
Performance Advantages:
- Superior wet storage stain prevention
- Excellent corrosion resistance during extended storage
- Well-established application procedures
- Predictable coating behavior
Regulatory Concerns: Hexavalent chromium faces increasing regulatory restrictions due to environmental and health concerns. Various jurisdictions have implemented or proposed limitations on chromium VI use, prompting transition to alternative chemistries.
Trivalent Chromium Passivation
Trivalent chromium compounds (chromium III) offer reduced toxicity and improved environmental profiles compared to hexavalent chromium while maintaining effective passivation performance. Many galvanizers have transitioned to trivalent chromium formulations in response to regulatory pressures.
Key Characteristics:
- Lower environmental impact than hexavalent chromium
- Effective wet storage stain prevention
- Different application parameters compared to hexavalent treatments
- Generally acceptable corrosion resistance during storage
The performance gap between trivalent and hexavalent chromium passivation has narrowed substantially as formulation chemistry has improved, making trivalent chromium a viable replacement for many applications.
Chromium-Free Passivation
The most recent passivation technology eliminates chromium entirely, utilizing alternative metal compounds to achieve surface conversion and stabilization. These treatments address both hexavalent and trivalent chromium concerns while providing adequate protection for most applications.
Development Drivers:
- Complete elimination of chromium-related regulatory compliance issues
- Simplified waste treatment and disposal
- Reduced environmental impact
- Improved worker safety during application
Performance Considerations: Chromium-free passivation effectiveness varies by formulation, with some products approaching traditional chromate performance while others provide adequate but reduced protection. Selection requires matching product capabilities with specific project requirements.
Application Contexts: When Passivation Is Beneficial
Several scenarios warrant specification or acceptance of passivation treatments on galvanized steel:
Extended Storage Periods
Galvanized steel destined for storage before installation benefits significantly from passivation. The treatment prevents wet storage stain formation during warehouse storage, outdoor staging, or extended transit periods.
Storage Conditions Requiring Passivation:
- Outdoor storage without protective covering
- Humid warehouse environments
- Coastal regions with salt-laden atmosphere
- Extended storage duration (multiple weeks or months)
- Conditions where condensation regularly occurs
Bundle or Stack Storage
Galvanized articles stored in tight bundles or stacks with limited air circulation face elevated wet storage stain risk. Moisture trapped between surfaces cannot readily evaporate, creating persistent wet conditions ideal for staining development. Passivation mitigates this risk.
Marine Transit
Shipment of galvanized steel via ocean freight exposes articles to humid, salt-laden air for extended periods. Passivation provides essential protection against the aggressive marine atmosphere encountered during transit.
Appearance-Critical Applications
Projects emphasizing initial appearance—particularly architectural applications with prominent visibility—may specify passivation to ensure uniform, aesthetically pleasing surfaces at the time of installation. Passivation prevents the mottled gray and white staining that can develop during storage, maintaining the bright, uniform metallic appearance of freshly galvanized steel.
Application Contexts: When Passivation Is Detrimental
Certain applications require avoiding or removing passivation treatments due to their adverse effects on subsequent processing:
Duplex System Preparation
The most common scenario requiring passivation-free galvanized surfaces involves duplex systems—galvanized steel that will receive supplemental paint or powder coating after galvanizing. Passivation layers interfere with organic coating adhesion through several mechanisms:
Chemical Incompatibility: Passivation conversion coatings present chemically different surfaces compared to bare zinc, affecting paint adhesion chemistry.
Barrier to Mechanical Adhesion: The thin passivation layer prevents direct paint contact with the zinc surface texture that contributes to mechanical interlocking.
Cohesive Failure Risk: Paint may bond well to the passivation layer, but the passivation layer itself may exhibit poor adhesion to the underlying zinc, causing cohesive failure at the passivation-zinc interface.
Surface Preparation Complications: Removing passivation requires additional chemical treatment or abrasive processes that add cost and complexity to duplex system preparation.
Standard practice for duplex systems specifies that galvanized steel must be free of passivation treatments, or if passivated, must undergo surface preparation procedures (such as sweep blasting or chemical treatment) to remove or modify the passivation layer before paint application.
Welding or Soldering Applications
Field welding or soldering operations on galvanized steel can be complicated by passivation layer presence. The additional surface layer affects weld pool chemistry and may contribute to weld defects. Projects anticipating substantial field welding should consider specifying no passivation treatment.
Chemical Compatibility Applications
Some industrial environments or chemical exposures may interact adversely with specific passivation chemistries. Understanding the service environment and potential chemical interactions helps determine whether passivation is appropriate.
The Challenge of Visual Detection
Passivation layers on galvanized steel present minimal visual distinction from untreated surfaces, creating verification challenges. The conversion coatings measure only a few micrometers thick and typically appear transparent or create only subtle color shifts. Several factors complicate visual assessment:
Minimal Color Change: Most passivation treatments produce colorless or faintly iridescent films indistinguishable from unpassivated zinc under normal viewing conditions.
Coating Uniformity: Even when passivation produces slight color changes, distinguishing these from normal galvanizing appearance variation proves difficult.
Lighting Dependence: Any subtle color effects from passivation vary dramatically with lighting angle and intensity, making consistent visual assessment nearly impossible.
Observer Subjectivity: Different inspectors interpret subtle appearance variations inconsistently, preventing reliable visual verification.
These limitations necessitate chemical testing methods for reliable passivation presence or absence verification.
ASTM B201: Standard Testing Methodology
ASTM B201, "Standard Practice for Testing Chromate Coatings on Zinc and Cadmium Surfaces," establishes a simple field test for detecting passivation treatments. Despite the standard's title referencing chromate coatings specifically, the test methodology effectively detects all passivation types including trivalent chromium and chromium-free formulations.
Test Principle
The ASTM B201 test exploits the chemical reactivity difference between unpassivated zinc and passivated zinc surfaces. The test reagent—lead acetate solution—reacts with bare zinc metal to form lead sulfide, a compound displaying characteristic black coloration. When passivation coating covers the zinc surface, the test reagent cannot access the underlying zinc metal, preventing the reaction and maintaining clear solution appearance.
Chemical Reaction with Unpassivated Zinc:
The lead acetate solution contains dissolved lead ions. When applied to bare zinc, a displacement reaction occurs where more reactive zinc displaces lead from the acetate salt. The liberated lead then reacts with trace sulfur compounds present in the solution or on the zinc surface, forming black lead sulfide precipitate:
Pb(CH₃COO)₂ + Zn → Zn(CH₃COO)₂ + Pb (lead displacement) Pb + S → PbS (black precipitate formation)
No Reaction with Passivated Zinc:
When passivation coating covers the zinc, the barrier layer prevents lead acetate solution from contacting the underlying zinc metal. Without zinc access, no displacement reaction occurs, no metallic lead forms, and consequently no black lead sulfide develops. The solution remains clear.
Test Procedure Details
The ASTM B201 test requires minimal equipment and executes rapidly, making it ideal for field verification:
Materials Required:
- Lead acetate test solution (typically 10% concentration)
- Clean dropper or applicator
- Absorbent paper towels or blotting material
- Timer or watch
Test Execution:
- Surface Preparation: Select a representative test area free from obvious contamination, oil, or handling marks. The test surface should represent typical article conditions rather than exceptional areas. No surface cleaning is required before testing.
- Solution Application: Apply several drops of lead acetate solution to the test surface, creating a puddle approximately 1/2 to 3/4 inch diameter. Ensure the solution contacts the surface uniformly without running off immediately.
- Reaction Time: Allow the solution to remain in contact with the surface for exactly 5 seconds. Timing precision affects result interpretation—insufficient time may prevent full reaction development while excessive time can produce false results.
- Solution Removal: After 5 seconds elapsed, gently blot the solution with absorbent material. Use light pressure to absorb the liquid without aggressive rubbing that might abrade the surface.
- Result Observation: Immediately examine the tested area for color development. Look for dark gray to black staining at the test location.
Result Interpretation
Test outcome interpretation follows straightforward criteria:
Dark Stain Appearance (Black or Dark Gray): Formation of dark staining indicates lead sulfide precipitate formed from reaction with bare zinc metal. This result confirms passivation treatment is NOT present on the tested surface.
Clear Result (No Dark Stain): Absence of dark staining indicates the lead acetate solution did not react with zinc metal, confirming a barrier layer prevents zinc access. This result confirms passivation treatment IS present on the tested surface.
Intermediate Results: Occasionally, tests produce intermediate results such as faint gray coloration or localized dark spots within otherwise clear areas. These suggest:
- Non-uniform passivation coverage
- Partially degraded passivation from weathering or handling
- Contamination affecting test chemistry
- Insufficient reaction time
Intermediate results warrant additional testing at multiple locations to characterize passivation uniformity.
Testing All Passivation Types
While ASTM B201 was originally developed for hexavalent chromium chromate detection, the test mechanism applies equally to all passivation chemistries. The key insight: the test detects zinc metal accessibility rather than specific passivation chemistry.
Universal Applicability:
- Hexavalent Chromium Passivation: Chromate conversion coating blocks lead acetate access to zinc → clear result
- Trivalent Chromium Passivation: Trivalent chromium conversion coating blocks lead acetate access to zinc → clear result
- Chromium-Free Passivation: Alternative metal conversion coating blocks lead acetate access to zinc → clear result
- No Passivation: Bare zinc reacts with lead acetate → dark stain
This universal applicability makes ASTM B201 the preferred field test regardless of which passivation technology the galvanizer employs.
Practical Testing Considerations
Successful field testing requires attention to several practical factors:
Sample Location Selection
Representative Areas: Test locations should represent typical article surfaces rather than exceptional conditions. Avoid testing only the most accessible areas if those locations receive different handling or exposure than the article overall.
Multiple Locations: For large articles or production lots, test multiple locations to verify passivation uniformity. Three to five test locations per article or sample piece provide reasonable confidence.
Edge and Corner Attention: Edges, corners, and complex geometries may receive different passivation coverage than flat surfaces. Include these challenging locations in the testing protocol.
Test Solution Management
Freshness Matters: Lead acetate solutions can degrade over time, particularly with light exposure or contamination. Use fresh solutions and follow manufacturer storage recommendations.
Concentration Verification: Test solution concentration affects reaction vigor. Verify solutions meet the specified concentration (typically 10% lead acetate) and have not been diluted.
Safety Handling: Lead acetate presents toxicity hazards. Use appropriate personal protective equipment including gloves and eye protection. Avoid skin contact and follow proper disposal procedures for contaminated materials.
Environmental Factors
Temperature Effects: Extremely cold surfaces may slow reaction kinetics, potentially producing weak or delayed staining. Similarly, very hot surfaces might accelerate solution evaporation before full reaction occurs. Conduct tests at moderate temperatures when possible.
Surface Moisture: Wet or damp surfaces dilute the test solution, potentially affecting results. Allow surfaces to dry before testing, or account for potential dilution in result interpretation.
Contamination: Oil, grease, or other contaminants can block test solution contact with the surface, producing false positive results suggesting passivation presence. Clean obviously contaminated areas before testing.
Quality Control Applications
ASTM B201 testing serves several quality control functions throughout galvanized steel production and utilization:
Incoming Material Verification
Fabricators preparing to apply duplex systems should test incoming galvanized steel to verify passivation absence before commencing surface preparation and painting operations. This verification:
- Confirms material received matches specifications
- Identifies misshipments or processing errors before substantial investment in surface preparation
- Documents compliance with passivation-free requirements
- Supports claims against suppliers if non-conforming material is received
Production Process Control
Galvanizing facilities use ASTM B201 testing to verify passivation treatment effectiveness and uniformity:
- Confirms passivation bath chemistry produces adequate conversion coating
- Identifies areas with inadequate passivation coverage requiring process adjustment
- Supports troubleshooting when wet storage stain occurs despite intended passivation
- Documents treatment presence for customer quality records
Specification Compliance Documentation
For projects with explicit passivation requirements (either mandating or prohibiting treatment), ASTM B201 test results provide objective documentation of specification compliance. Photographic documentation of test execution and results strengthens quality records.
Specification Language Recommendations
Project specifications should clearly address passivation requirements to prevent misunderstandings:
When Passivation Is Required: "Galvanized steel shall receive post-galvanizing passivation treatment to prevent wet storage stain. Passivation shall be verified by ASTM B201 testing showing clear results (no dark staining) at all tested locations."
When Passivation Is Prohibited: "Galvanized steel shall NOT receive post-galvanizing passivation treatment. Material shall be suitable for subsequent painting without passivation removal. Absence of passivation shall be verified by ASTM B201 testing showing dark staining at all tested locations."
When Passivation Is Optional: "Post-galvanizing passivation treatment is at the galvanizer's discretion. If specified duplex system preparation is required, passivation presence shall be disclosed to enable appropriate surface preparation planning."
Clear specification language eliminates ambiguity about passivation requirements and establishes verification procedures.
Relationship to Wet Storage Stain
Understanding wet storage stain—the primary condition passivation prevents—clarifies when passivation specification is appropriate:
Wet Storage Stain Formation
Wet storage stain develops when moisture remains in contact with freshly galvanized zinc surfaces for extended periods without adequate drying. The stain consists of white or gray zinc corrosion products (zinc hydroxide and zinc oxide) that form from accelerated zinc consumption under continuously wet conditions.
Contributing Factors:
- Condensation in enclosed storage
- Rain exposure without drainage
- Tight stacking preventing air circulation
- Extended storage duration
- Coastal or industrial atmospheres with corrosive contaminants
Passivation Protection Mechanism
Passivation treatments prevent wet storage stain by slowing the zinc corrosion reactions that produce staining compounds. The conversion coating acts as a temporary barrier and stabilizing layer, allowing the galvanized surface to survive storage conditions that would otherwise produce staining.
Duration of Protection: Passivation provides temporary protection—typically measured in weeks or months depending on storage conditions—rather than permanent surface modification. Once installed in service, the passivation layer gradually weathers away as the zinc develops its natural patina. The passivation's role is protecting the galvanized surface during the vulnerable period between galvanizing and installation, not providing long-term corrosion protection enhancement.
Limitations and Supplemental Testing
While ASTM B201 provides reliable passivation presence/absence verification, engineers should recognize its limitations:
Passivation Type Identification: The test confirms a barrier layer exists but does not identify the specific passivation chemistry (hexavalent chromium, trivalent chromium, or chromium-free). Distinguishing among these chemistries requires more sophisticated analytical methods such as X-ray fluorescence spectroscopy or chemical analysis.
Coverage Uniformity Assessment: Individual tests provide localized information. Comprehensive uniformity assessment requires extensive testing or alternative methods such as fluorescence spectroscopy that can survey larger areas rapidly.
Coating Thickness: The test indicates passivation presence but provides no quantitative measurement of passivation layer thickness or density.
For applications requiring detailed passivation characterization beyond simple presence/absence determination, consult with testing laboratories offering advanced surface analysis capabilities.
Safety and Environmental Considerations
Lead acetate test solution handling requires appropriate safety measures:
Personal Protection:
- Chemical-resistant gloves during solution handling
- Safety glasses or face shield for eye protection
- Avoid skin contact with test solution
- Wash hands thoroughly after testing
Environmental Responsibility:
- Collect and dispose of used test materials according to local regulations governing lead-containing waste
- Do not discharge waste solutions to storm drains or natural water bodies
- Minimize excess solution use to reduce waste generation
Alternative Testing: Organizations concerned about lead-based test reagents can consult testing equipment suppliers about alternative passivation detection methods, though ASTM B201 remains the industry standard field test.
Passivation treatments on hot-dip galvanized steel serve important functions for preventing wet storage stain during extended storage or transit, but can interfere with subsequent paint application in duplex systems. The challenge of visually distinguishing passivated from unpassivated surfaces necessitates reliable chemical testing methods. ASTM B201 provides a simple, rapid field test using lead acetate solution to verify passivation presence or absence. The test exploits reactivity differences between bare zinc (which produces dark lead sulfide staining) and passivated zinc (which shows no reaction, remaining clear). This testing methodology applies universally to hexavalent chromium, trivalent chromium, and chromium-free passivation formulations, making it the preferred verification method regardless of specific passivation chemistry. Proper implementation includes testing multiple representative locations, using fresh reagents, following specified timing procedures, and documenting results for quality records. Clear specification language regarding passivation requirements, combined with ASTM B201 verification testing, ensures galvanized steel receives appropriate treatment for its intended application and storage conditions. To see the source document, see the original AGA article on Testing for Non-Hexavalent Chromium Passivation.
