Understanding Galvanizing Kettle Limitations
Hot-dip galvanizing requires complete immersion of steel articles in molten zinc, which means fabrication dimensions must accommodate the physical constraints of the galvanizing kettle. While this immersion requirement creates size considerations for designers and fabricators, numerous proven strategies enable successful galvanizing of even very large structural components.
The question \Will it fit in the kettle?\" represents a common concern when specifying galvanizing for large-scale projects. However, the answer involves more than simple dimensional comparison. Through progressive dipping techniques, modular design strategies, and hybrid coating approaches, many apparently oversized fabrications can be successfully galvanized or protected with complementary zinc coating systems.
Typical Kettle Dimensions and Variability
Galvanizing kettle sizes vary significantly across North American facilities. The average kettle measures approximately 40 feet long, 8 feet deep, and 6 feet wide (12 meters by 2.4 meters by 1.8 meters). However, many facilities operate larger kettles ranging from 50 to 60 feet in length with corresponding increases in depth and width capacity.
This variability creates both challenges and opportunities for project planners. When galvanizing facility selection occurs early in the design process, kettle dimensions can inform fabrication sizing decisions. For projects where the galvanizer is not yet determined during design phases, conservative planning using average dimensions helps avoid costly redesign later.
Kettle Dimension Resources
The American Galvanizers Association maintains a comprehensive galvanizer locator tool that lists kettle dimensions for facilities throughout North America. This resource allows designers and specifiers to identify available capacity in their project region, facilitating early coordination between design requirements and galvanizing capabilities. Typical kettle dimension ranges span 30 to 60 feet in length, 6 to 12 feet in depth, and 5 to 8 feet in width.
Design Strategies for Large Fabrications
When kettle size constraints are identified early in the design process, several strategies can accommodate galvanizing requirements while maintaining structural performance and project economics.
Modular Design Approach
Virtually any large structure can be designed and fabricated in modules or sub-units sized to fit available galvanizing facilities. This approach offers multiple advantages beyond enabling galvanizing. Modular fabrication often simplifies manufacturing processes, reduces handling complexity, and facilitates transportation logistics. The sub-units can be assembled on-site through bolting or field welding after galvanizing.

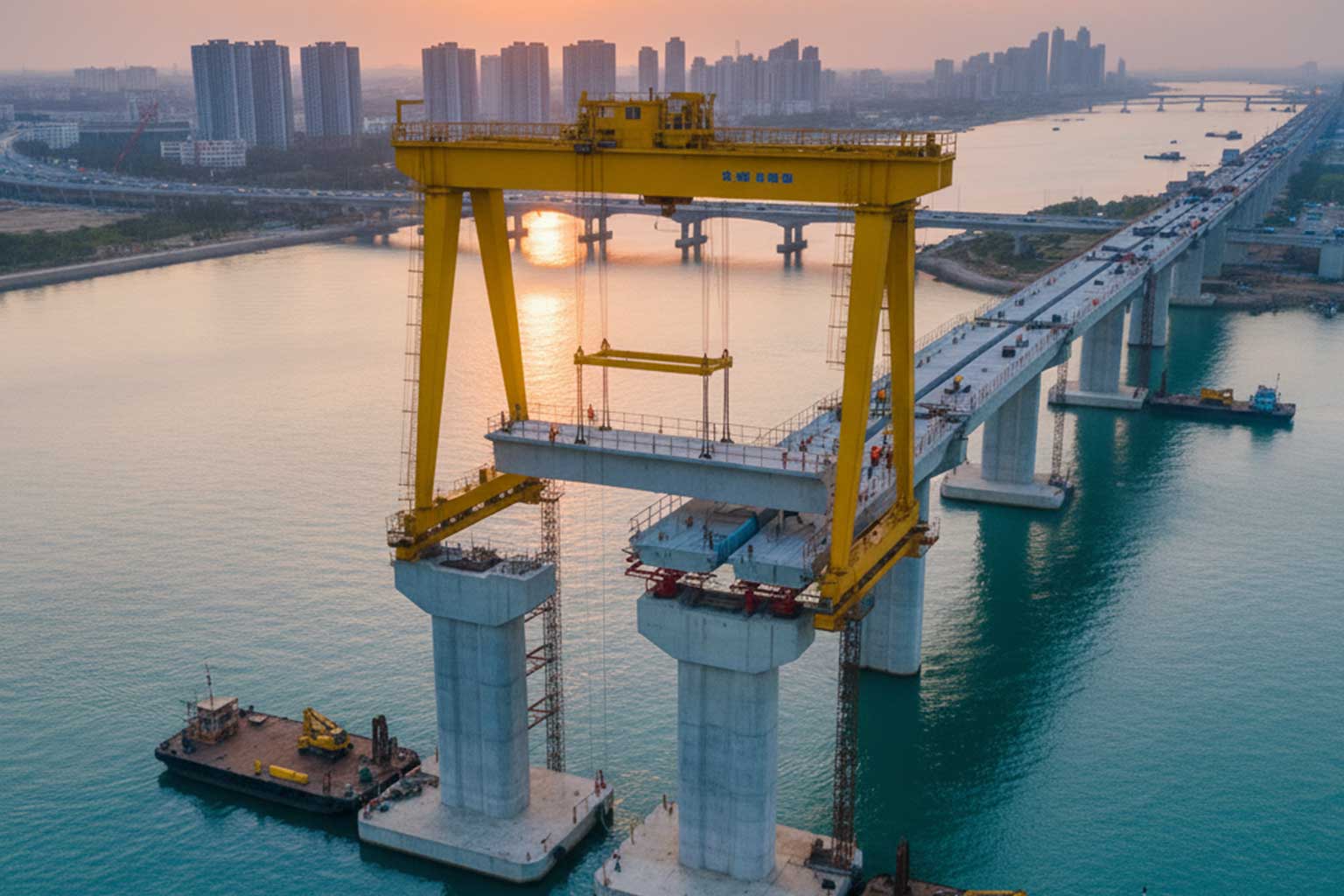

Bridge projects frequently employ modular design strategies, with individual spans or sections galvanized separately and assembled in the field. This approach has proven successful for pedestrian bridges, highway structures, and complex architectural installations. The connections between galvanized modules can be designed to maintain structural continuity while allowing efficient coating application.
Progressive Dipping Techniques
Progressive dipping enables galvanizing of articles longer than the kettle by sequentially immersing each end in the molten zinc. When at least half the article length can be submerged, the fabrication can be dipped at an angle, removed, inverted, and re-dipped to achieve complete coverage with a small overlapping area in the center.
The effectiveness of progressive dipping varies with fabrication geometry. For slender articles or assemblies with minimal cross-sectional height, progressive dipping can nearly double the maximum length that can be galvanized. A 40-foot kettle might accommodate articles up to 60 feet long when height remains minimal. However, for larger cross-sections such as rolled beams or plate girders, progressive dipping typically provides only 15 to 30 percent length increase capability.
The American Galvanizers Association provides both progressive dip charts for quick estimation and detailed calculators for precise analysis using specific part and kettle dimensions. These tools help designers determine feasibility early in the planning process. However, progressive dipping decisions must also consider galvanizer handling capabilities, overhead crane capacity, warpage and distortion risk, and acceptability of the finish appearance near the overlap line.
Progressive Dip Overlap Characteristics
Articles processed through progressive dipping exhibit a visible overlap area where the two immersions meet. This overlap typically appears darker and may have slightly rougher texture than surrounding coating areas. The appearance difference is purely cosmetic and diminishes over time as the coating weathers naturally. The overlap area generally develops thicker coating due to double immersion, which may require consideration for connection points or faying surfaces where excess coating thickness could affect fit-up. When necessary, excess coating can be ground or buffed to match surrounding thickness.
Long-term field exposure demonstrates that progressive dip lines become far less pronounced as zinc patina develops. Documented examples show dramatic improvement in appearance uniformity after just a few years of natural weathering, with overlap areas blending into the overall coating appearance.
Hybrid Coating Solutions
Projects containing a mixture of components—some suitable for hot-dip galvanizing and others exceeding kettle capacity—can benefit from hybrid coating strategies that combine hot-dip galvanizing with thermal spray zinc (TSZ, also known as zinc metallizing). This tandem approach maximizes cost efficiency while leveraging the benefits of both zinc coating systems.
Practical application might involve hot-dip galvanizing smaller or more complex components that fit within kettle dimensions while applying zinc metallizing to oversized members with accessible surfaces. Alternatively, both ends of an oversized article might be hot-dip galvanized with the center portion receiving metallized coating. This strategy provides complete zinc coating protection while accommodating size constraints.
Hybrid solutions prove particularly valuable when galvanizing feasibility is not considered until after fabrication. At that stage, design changes such as adding field splices become difficult to implement. Rather than compromising the entire project, hybrid approaches allow protective zinc coating for all components using the most appropriate application method for each.
Application Examples
Wind energy projects frequently employ hybrid strategies, with tower sections and blades receiving metallized coatings while platforms, ladders, stairs, and ancillary components are hot-dip galvanized. Bridge projects may specify zinc metallizing for main girders while hot-dip galvanizing cross-frames, lateral bracing, handrails, and connection hardware. This approach optimizes both performance and project economics.
Direct Galvanizer Consultation
Some fabrications genuinely exceed available galvanizing capacity regardless of technique employed. However, direct consultation with the galvanizer before making final determinations proves essential. Galvanizers possess intimate knowledge of their equipment capabilities and often identify creative solutions for accommodating awkward or seemingly oversized pieces.
Kettle depth, diagonal positioning, and strategic use of kettle corners can sometimes accommodate items that appear too large based on simple dimensional comparison. Crane capacity, facility layout, and galvanizer experience all factor into what can be successfully processed. Early dialogue between designers, fabricators, and galvanizers often reveals possibilities not apparent from specification review alone.
Planning Recommendations
Successful galvanizing of large fabrications begins with early consideration of kettle constraints during the design phase. Key planning steps include identifying local galvanizing capacity through available resources, incorporating modular design concepts when appropriate, evaluating progressive dipping feasibility for elongated members, and considering hybrid coating strategies for mixed-size component projects.
Communication between all project stakeholders—designers, fabricators, galvanizers, and owners—ensures that protective coating requirements align with structural design and project logistics. This coordination prevents costly late-stage changes while maximizing the proven performance benefits of zinc coating systems.
Frequently Asked Questions
What is the largest item that can be galvanized?
Size capability varies by galvanizing facility, with the largest North American kettles accommodating articles up to 60 feet long. Progressive dipping techniques can extend this for certain geometries, while modular approaches enable galvanizing of virtually any size structure.
Will progressive dipping affect coating performance?
No. Progressive dipping affects only cosmetic appearance in the overlap area. Corrosion protection remains equivalent to single-immersion galvanizing, and appearance differences diminish with natural weathering.
Can different coating types be used on the same structure?
Yes. Hybrid approaches combining hot-dip galvanizing and zinc metallizing are technically sound and widely employed. Both systems provide sacrificial zinc protection without compatibility concerns.
When should I contact a galvanizer about size limitations?
As early as possible in the design process. Early consultation enables design optimization and prevents costly modifications later in project development.
Expert Support for Large-Scale Projects
V&S Galvanizing operates multiple facilities with varying kettle capacities and extensive experience in progressive dipping techniques. Our technical team works collaboratively with designers and fabricators from early design phases through final coating application, identifying optimal solutions for projects of any scale. Whether through innovative dipping techniques, modular design consultation, or hybrid coating strategies, we help clients achieve comprehensive zinc protection regardless of fabrication size.
For additional guidance on accommodating size limitations, refer to the original AGA resource on galvanizing size considerations.
