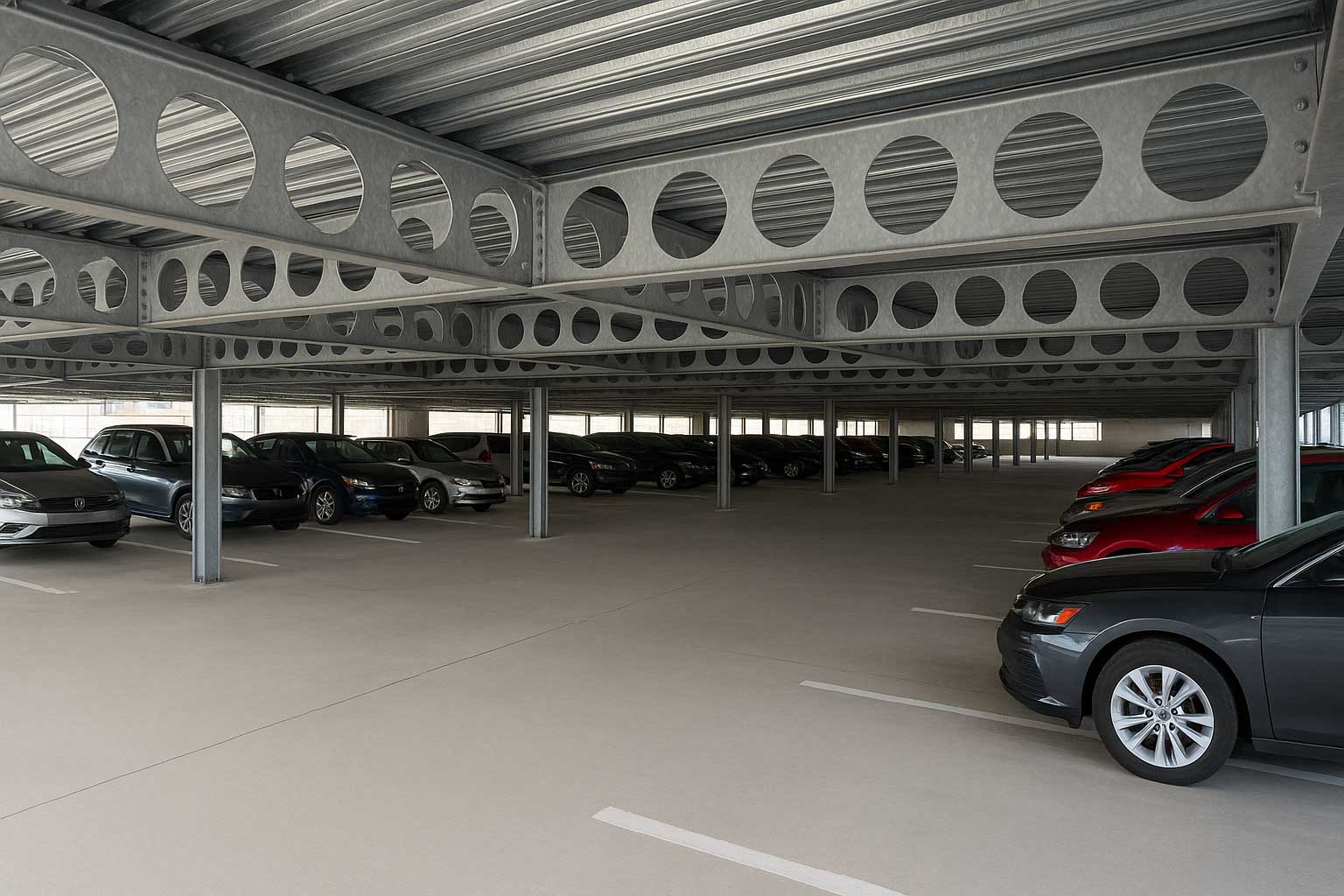

Advancing Parking Structure Design with Cellular Beams
Steel parking structures have gained significant market share in recent decades due to their design flexibility, construction efficiency, and aesthetic advantages. The inherent strength-to-weight characteristics of structural steel enable slender member profiles that maximize usable space, improve lighting conditions, and create more welcoming environments for users compared to concrete alternatives.
Cellular beams represent an evolution in steel parking structure design that extends these benefits even further. By incorporating strategically placed circular openings in beam webs, cellular beams achieve lighter weight than conventional I-beams without compromising structural capacity. When combined with hot-dip galvanizing for corrosion protection, cellular beam parking structures deliver exceptional long-term performance with minimal maintenance requirements.
Cellular Beam Manufacturing and Configuration
Cellular beams are manufactured through a sophisticated cutting and welding process that transforms standard I-beam sections into more efficient structural members. The manufacturing process begins by cutting the beam lengthwise along the web centerline, but rather than straight cutting, the process incorporates half-circle patterns into the cut line. The two resulting pieces are then offset and welded together, aligning the half-circles to create full circular openings spanning the beam's length.
This manufacturing approach increases the beam depth while reducing overall weight compared to the original solid-web section. The resulting member achieves greater moment capacity with less material, delivering both structural and economic benefits. The circular web openings also provide convenient pathways for routing electrical conduit, HVAC ductwork, plumbing lines, and other building services that would otherwise require separate framing or ceiling space.
Cellular vs. Castellated Beam Geometry
While cellular beams feature circular web openings, a related product called castellated beams uses hexagonal opening patterns. Both achieve similar manufacturing efficiency gains, but the geometry difference carries important implications for hot-dip galvanizing applications. The sharp corners inherent in hexagonal openings create stress concentration points that increase risk of liquid metal-assisted cracking (LMAC) during the galvanizing process.
For projects specifying hot-dip galvanizing, cellular beam geometry is strongly preferred. The circular openings eliminate sharp corners and distribute stresses more uniformly, significantly reducing LMAC susceptibility. This makes cellular beams not only structurally efficient but also ideally suited for the hot-dip galvanizing process.
Benefits for Parking Structure Applications
Cellular beams offer multiple advantages specifically relevant to parking structure design and operation. The reduced weight compared to solid-web members of equivalent capacity allows for lighter foundation systems and reduced overall structural cost. The increased depth achieved through the cutting and welding process provides greater moment capacity, enabling longer clear spans that reduce column requirements and maximize parking flexibility.
Space Optimization
The slender profile of cellular beams creates more open, visually appealing parking environments. Reduced member sizes improve sight lines throughout the structure, enhancing both aesthetic quality and user perception of safety. Natural and artificial lighting reaches more areas effectively when obstructions are minimized, creating brighter spaces that feel more secure.
The ability to route building services through web openings eliminates the need for separate ceiling framing or suspended systems that would further reduce clear height. This integration of structure and services maximizes usable vertical space within the building envelope.
Design Flexibility
Cellular beam openings can be positioned and sized to accommodate specific structural loading patterns and service routing requirements. Engineers can optimize opening locations to maintain required shear and moment capacity while providing service penetrations exactly where needed. This customization capability supports efficient coordination between structural and mechanical, electrical, and plumbing (MEP) systems.
Hot-Dip Galvanizing for Parking Structure Corrosion Protection
Parking structures face aggressive corrosion conditions from multiple sources. Vehicle traffic introduces road salts, de-icing chemicals, and moisture. Open or partially enclosed designs expose structural steel to precipitation, temperature cycles, and atmospheric pollutants. Traditional organic coatings require regular maintenance in these harsh environments, with recoating cycles typically needed every 10 to 15 years.
Hot-dip galvanizing provides superior long-term protection in parking structure applications. The metallurgically bonded zinc coating offers both barrier protection and cathodic (sacrificial) protection. When damage exposes small areas of steel, the zinc preferentially corrodes to protect the exposed steel—a self-healing characteristic not available from paint systems.
Maintenance-Free Performance
Well-designed hot-dip galvanized parking structures can provide 50 to 75 years of essentially maintenance-free corrosion protection in typical environments. This dramatically reduces life-cycle costs compared to painted alternatives requiring periodic recoating. Eliminating recoating operations also avoids the disruption, access restrictions, and user inconvenience associated with maintenance activities in operating facilities.
The durability of galvanized steel parking structures has been demonstrated through decades of field experience. Many early galvanized parking facilities remain in excellent condition after 30 to 40 years of service with no coating maintenance required.
Galvanizing Process Considerations for Cellular Beams
Cellular beams are readily hot-dip galvanized when proper design and fabrication practices are followed. The circular web openings actually facilitate galvanizing by improving drainage of both cleaning solutions and molten zinc during processing. Adequate vent and drain holes must be provided according to ASTM A385 requirements, but the web openings themselves assist with process flow.
The key design consideration involves avoiding geometries that create stress concentrations. As noted earlier, circular openings are strongly preferred over hexagonal patterns specifically because they eliminate the sharp corners that increase LMAC risk. The fabrication quality also matters—weld quality must meet standards to avoid creating stress risers during galvanizing thermal cycles.
Beam length must be accommodated by available kettle dimensions, though cellular beams are often designed within standard kettle length ranges. For longer spans, modular design approaches can enable galvanizing of individual segments that are field-bolted into continuous members.
Design Resources and References
The American Institute of Steel Construction (AISC) provides comprehensive guidance on steel parking structure design including cellular beam applications. The publication \"Parking: Conventional Steel Framing Study\" addresses design considerations, cost comparisons, and performance characteristics of various structural systems including cellular beam solutions. \"Steel Parking Structures: A 25-Year Perspective\" offers historical context and lessons learned from completed projects.
The American Galvanizers Association maintains an extensive project gallery featuring completed parking structures that showcase cellular and castellated beam applications with hot-dip galvanized finishes. Notable examples include the Lowes Company Headquarters Parking Deck and Charlotte Douglas International Airport Garage, both demonstrating the aesthetic and functional success of this structural approach.
Cost-Performance Analysis
The combined benefits of cellular beams and hot-dip galvanizing deliver compelling value in parking structure applications. Initial structural costs for cellular beam systems typically compare favorably with conventional framing due to material efficiency and reduced foundation requirements. Hot-dip galvanizing adds moderate initial cost compared to paint systems but delivers dramatically lower life-cycle costs through eliminated maintenance.
Life-cycle cost analysis consistently shows that hot-dip galvanized steel parking structures provide the lowest total cost of ownership when maintenance, operational disruption, and service life are properly accounted for. The durability and maintenance-free performance justify the coating investment many times over during the structure's service life.
Structural Performance and Longevity
Field experience demonstrates excellent long-term performance of cellular beam systems in parking applications. The structural efficiency that enables lighter member weights and longer spans translates directly into functional benefits—more parking spaces per square foot of building area, better traffic flow patterns, and improved user experience. Combined with hot-dip galvanizing's proven corrosion protection, these structures deliver decades of reliable service.
The thermal stress resistance of galvanized coatings suits them well to parking applications where structural steel experiences significant temperature cycles. Daily heating and cooling, seasonal temperature variations, and rapid changes from direct sun exposure to shade do not compromise coating integrity or performance.
Frequently Asked Questions
Are cellular beams more expensive than standard beams?
Material costs are generally competitive, and the increased efficiency often reduces overall structural system cost through lighter foundations and fewer columns. When combined with galvanizing's maintenance savings, total project cost is highly favorable.
Can cellular beams be galvanized after fabrication?
Yes, cellular beams are readily galvanized when proper design practices are followed. The circular openings facilitate process flow, and the geometry minimizes cracking risk.
How long will a galvanized cellular beam parking structure last?
Properly designed and galvanized parking structures routinely achieve 50 to 75 years of service life with minimal maintenance. Many early examples continue performing well after 30 to 40 years.
What maintenance is required for galvanized parking structures?
Galvanized parking structures typically require only routine cleaning to remove debris and salt accumulation. Coating maintenance is not needed during the initial service life in most environments.
Expert Design Support and Galvanizing Services
V&S Galvanizing works collaboratively with structural engineers and fabricators on cellular beam parking structure projects. Our technical team provides design review services to optimize member configuration for galvanizing, ensuring efficient processing and high-quality coating outcomes. With experience galvanizing parking structure components of all types and sizes, we deliver the coating quality and project support that makes these innovative designs successful. Our strategically located facilities serve projects nationwide, providing convenient access to galvanizing services regardless of project location.
