Seeing a bare spot on galvanized steel can raise immediate concern. Since hot dip galvanizing is designed to provide full coverage and long-term corrosion protection, any visible area without coating tends to stand out during inspection.

At V&S Galvanizing, we regularly help customers evaluate these situations and determine whether a bare spot is acceptable, repairable, or requires further attention. The American Galvanizers Association provides technical background on this topic, which we expand on here to help you better understand what causes bare spots and how they should be handled.

What Is a Bare Spot?

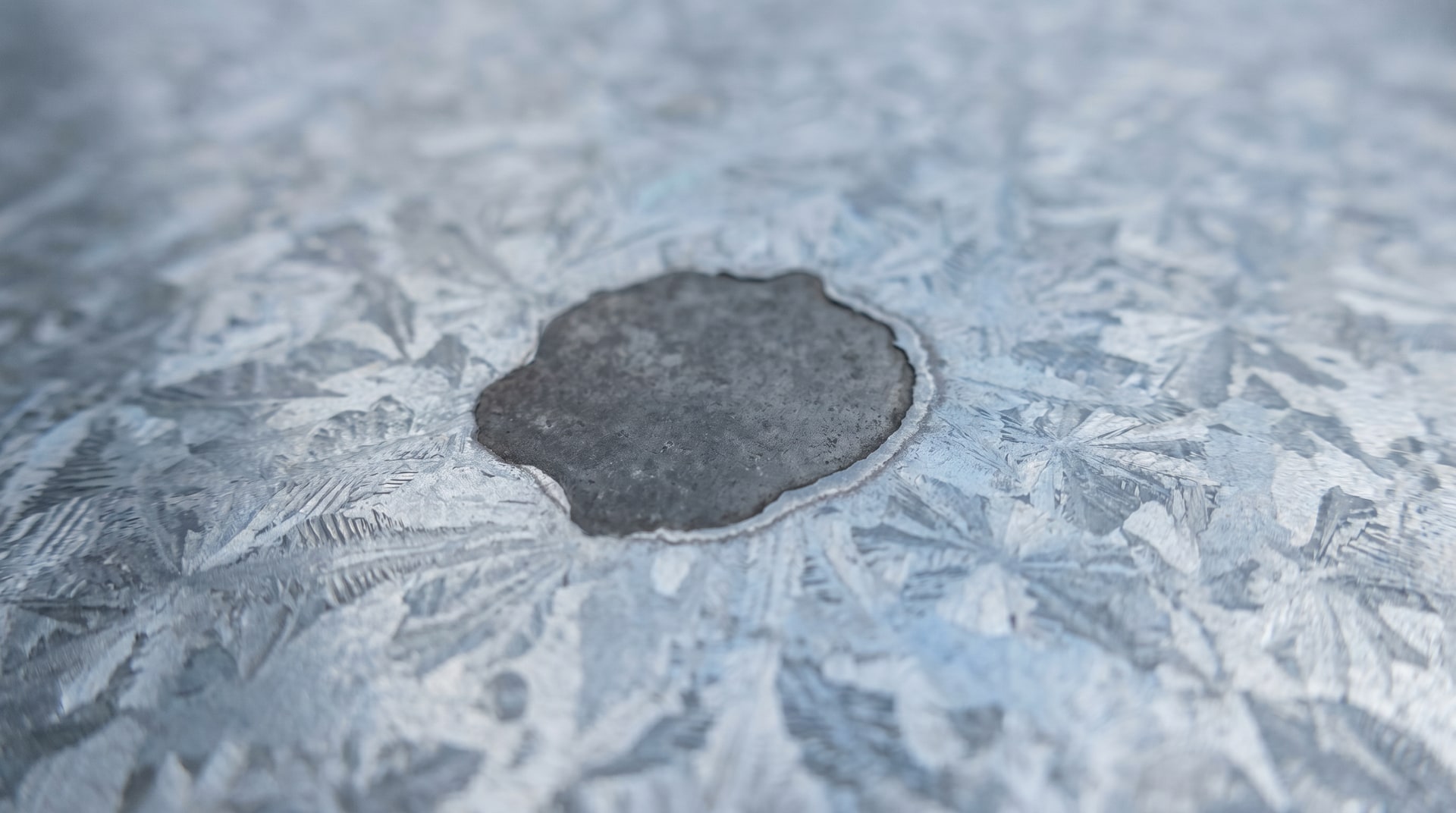

A bare spot is an area on the steel surface where the zinc coating is absent, leaving the base metal exposed.

These areas can range from:

• Very small pin-sized discontinuities
• Localized uncoated patches
• Larger areas caused by fabrication or processing conditions

Not all bare spots are treated the same. Their size, location, and cause all influence how they should be evaluated.

Common Causes of Bare Spots

Bare spots typically result from conditions that prevent proper bonding between zinc and steel.

Common causes include:

Surface Contamination

Oil, grease, paint, or other contaminants can block the galvanizing reaction, preventing zinc from bonding to the steel.

Welding Residue

Weld slag, flux, or spatter left on the surface can interfere with coating formation.

Mill Scale or Rust

Heavy scale or corrosion products that are not fully removed during preparation can create isolated uncoated areas.

Fabrication Details

Tight overlaps or inaccessible areas may prevent proper cleaning or zinc flow.

Handling or Post-Processing Damage

Bare spots can also occur after galvanizing due to abrasion or impact during handling, transport, or installation.

How Bare Spots Are Evaluated

Bare spots are evaluated based on established industry standards, particularly ASTM specifications.

Key evaluation factors include:

• Total area of uncoated surface
• Location on the component
• Whether the spot affects function or structural integrity
• Overall coating coverage and compliance

Small, isolated bare spots are often acceptable within defined limits.

The Role of Cathodic Protection

One important advantage of galvanized coatings is that zinc provides cathodic protection to nearby exposed steel.

For small bare spots:

• Surrounding zinc can help protect the exposed area
• Corrosion of the steel may be delayed or reduced
• Protection depends on spot size and environmental conditions

However, this protection has limits and should not be relied on for larger exposed areas.

When Bare Spots Are Acceptable

In many cases, very small bare spots are acceptable under ASTM standards.

Acceptance typically depends on:

• The size of the bare area
• The percentage of total surface affected
• Whether repair is practical

Small discontinuities that fall within allowable limits may not require repair.

When Repair Is Required

Bare spots should be repaired when they exceed acceptable limits or when project specifications require it.

Repair is commonly needed when:

• The exposed area is too large
• The location is critical to performance
• The environment is aggressive
• The specification requires full coating continuity

Repairs must follow recognized methods to restore corrosion protection.

Common Repair Methods

ASTM A780 outlines accepted methods for repairing galvanized coatings.

These include:

• Zinc-rich paint
• Zinc-based solder
• Thermal spray zinc

Each method has specific application requirements and performance characteristics.

Proper surface preparation is essential before any repair is made.

Preventing Bare Spots

Many bare spots can be avoided through proper fabrication and preparation.

Best practices include:

• Removing contaminants before galvanizing
• Cleaning weld areas thoroughly
• Avoiding designs that trap residues
• Coordinating with the galvanizer during fabrication

Attention to detail before processing leads to more consistent coating coverage.

Work With a Team That Helps You Evaluate Coating Conditions

Bare spots are one of the most common inspection concerns, but they are also one of the most manageable when evaluated correctly. Understanding the difference between acceptable variation and required repair helps keep projects moving forward.

At V&S Galvanizing, we work with customers to review coating conditions, interpret inspection criteria, and determine the appropriate next steps based on standards and real-world conditions.

If you have questions about bare spots, coating coverage, or repair requirements, reach out to our team through our contact page.

Bare spots on galvanized steel can occur due to contamination, fabrication issues, or handling damage. While small, isolated areas may be acceptable and even protected by surrounding zinc, larger or critical areas often require repair. Proper evaluation based on ASTM standards ensures that coating performance and long-term durability are maintained.

Frequently Asked Questions About Bare Spots on Galvanized Steel

What causes bare spots on galvanized steel?

Bare spots are usually caused by surface contamination, weld residue, mill scale, or fabrication issues that prevent zinc from bonding to the steel.

Are bare spots always a defect?

Not always. Small, isolated bare spots may be acceptable under ASTM standards if they fall within defined limits and do not impact performance.

Can galvanized steel still be protected if there are small bare spots?

Yes. Zinc provides cathodic protection, which can help protect small exposed areas, depending on their size and environmental conditions.

When do bare spots need to be repaired?

Repair is required when the area exceeds allowable limits, is located in a critical area, or when specified by project requirements.

What standard governs repair of galvanized coatings?

ASTM A780 provides guidelines for repairing damaged or uncoated areas on galvanized steel.

What are the approved repair methods?

Common methods include zinc-rich paint, zinc solder, and thermal spray zinc, depending on the application.

Can bare spots be prevented?

Many can be prevented through proper surface preparation, clean welding practices, and good fabrication design.

Does a bare spot mean the entire coating is bad?

No. Bare spots are usually localized issues and do not indicate a problem with the entire galvanized coating.

‍
