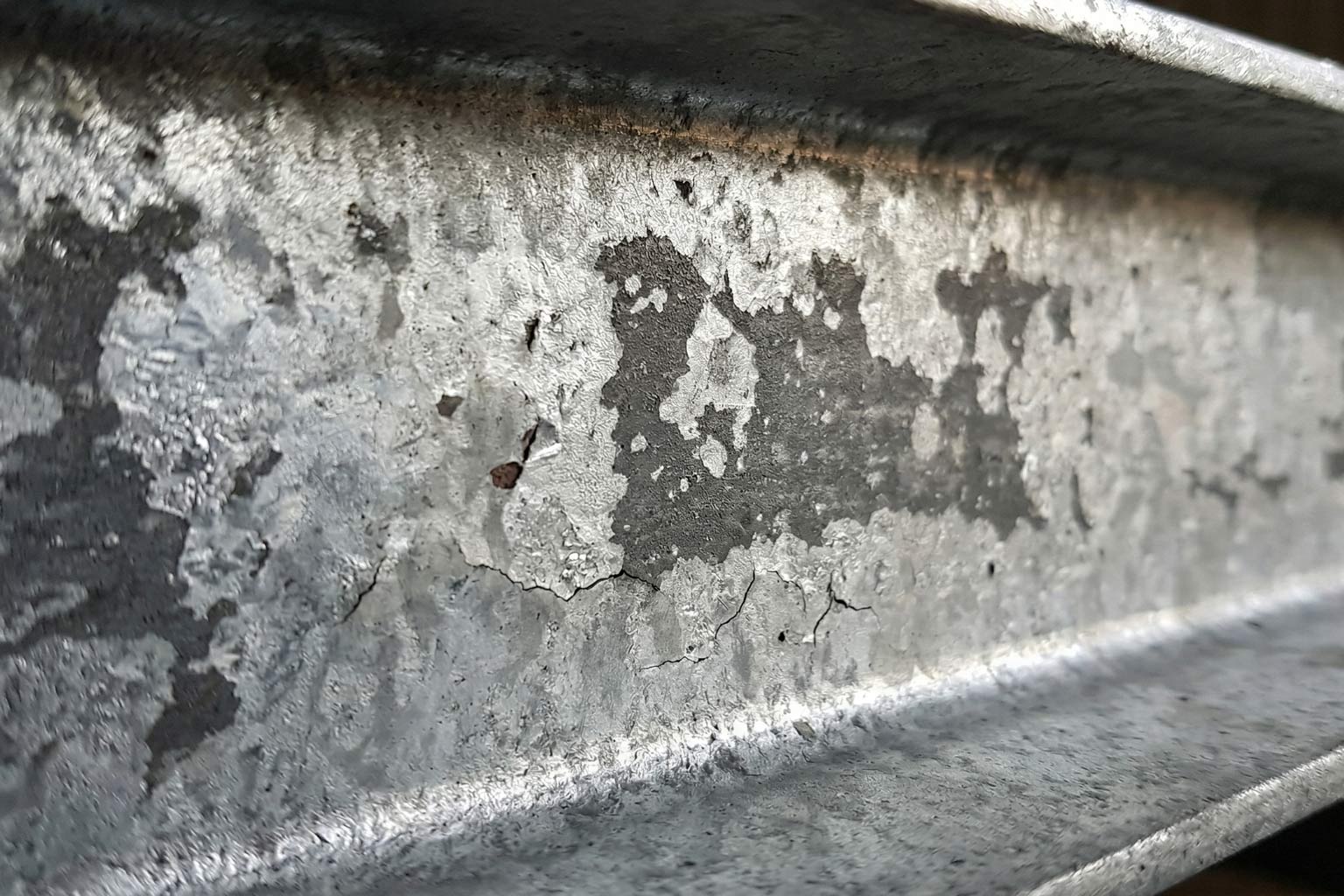

Coating thickness is one of the most important performance characteristics of hot dip galvanized steel. Because the zinc coating provides sacrificial corrosion protection, the amount of zinc present directly influences the expected service life of the galvanized component.

In most cases, galvanized coatings exceed the minimum thickness requirements defined by ASTM standards. However, engineers, inspectors, and fabricators sometimes encounter coatings that appear thinner than expected. Understanding why this occurs requires examining the metallurgical relationship between steel chemistry, steel thickness, and the galvanizing reaction.

The American Galvanizers Association provides technical background on this topic in the following article. Expanding on that guidance, this article explains the factors that influence coating growth and why some galvanized coatings develop at the lower end of the acceptable thickness range.

How Hot Dip Galvanized Coatings Form

Hot dip galvanizing produces a protective coating through a metallurgical reaction between molten zinc and the steel surface.

When steel is immersed in molten zinc, several zinc iron alloy layers form. These layers create the galvanized coating and are metallurgically bonded to the base steel.

The coating typically consists of:

• Gamma layer
• Delta layer
• Zeta layer
• Eta layer

Together these layers form a durable protective system that provides corrosion resistance through sacrificial zinc protection.

The thickness of these layers depends on several material and processing variables.

Influence of Steel Chemistry

One of the most significant factors affecting galvanized coating thickness is the chemical composition of the steel.

Certain elements strongly influence the rate of the zinc iron reaction.

These include:

• Silicon
• Phosphorus
• Carbon
• Manganese

Silicon is particularly important because it can accelerate or suppress coating growth depending on its concentration within the steel.

Some steels produce thicker galvanized coatings due to higher reactivity with zinc, while others react more slowly and develop thinner coatings.

Aluminum Killed Steels

Modern steel manufacturing often uses aluminum during production to control oxygen content in the molten steel.

These steels are commonly referred to as aluminum killed steels.

While aluminum killed steels provide desirable structural properties, they can also reduce the reactivity of the steel surface during galvanizing. As a result, the zinc iron reaction may proceed more slowly, producing thinner coatings compared with highly reactive steels.

Even when thinner coatings occur, they may still meet the minimum thickness requirements specified by galvanizing standards.

Steel Thickness and Coating Growth

The thickness of the steel being galvanized also influences coating thickness.

Heavier steel sections typically develop thicker galvanized coatings because:

• The steel retains heat longer during immersion
• The zinc iron reaction continues for a longer time
• Alloy layer growth increases with exposure time

Thin materials cool more rapidly, limiting the duration of the reaction and potentially producing thinner coatings.

This relationship explains why thicker structural members often exhibit heavier galvanized coatings.

ASTM Minimum Coating Thickness Requirements

Galvanized coatings are evaluated based on minimum thickness requirements defined in standards such as ASTM A123.

These standards establish minimum coating thickness values based on the thickness of the steel being galvanized.

For example, thicker structural members require greater minimum coating thickness than thin sheet materials.

If the coating meets or exceeds the specified minimum thickness, the galvanized component is considered compliant even if the coating appears visually thinner than other components.

Measuring Coating Thickness

Inspectors typically measure galvanized coating thickness using magnetic thickness gauges.

These instruments measure the distance between the probe and the steel substrate through the zinc coating.

Inspection procedures may involve:

• Multiple measurements across the surface
• Averaging readings from different locations
• Comparing results to ASTM requirements

Because coating thickness can vary slightly across a component, several readings are usually taken to obtain an accurate assessment.

Appearance vs Performance

Thin galvanized coatings may sometimes appear different from thicker coatings.

Surface appearance differences may include:

• Smoother texture
• Slightly brighter finish
• Less pronounced zinc crystallization patterns

However, visual appearance does not necessarily indicate reduced performance.

If the coating meets specification thickness requirements, it will provide the corrosion protection expected for galvanized steel.

Engineering Considerations for Coating Thickness

When coating thickness is critical for service life, engineers should consider the factors that influence coating growth during project planning.

Important considerations include:

• Steel chemistry
• Section thickness
• Fabrication design
• Environmental exposure conditions

Coordinating with the galvanizer early in the project can help establish appropriate expectations for coating thickness.

Technical Coordination for Galvanized Projects

Understanding how coating thickness develops during hot dip galvanizing helps engineers and fabricators interpret inspection results and coating appearance.

If you have questions about galvanized coating thickness, steel chemistry, or project specifications, our team can help evaluate your material selection and corrosion protection strategy.

For technical assistance or project consultation, please reach out through our contact page.

Early coordination helps ensure that galvanized coatings meet both specification requirements and long-term performance expectations.

Hot dip galvanized coating thickness is influenced by several factors including steel chemistry, material thickness, and reaction behavior during immersion in molten zinc. While some steels naturally develop thinner coatings, compliance with ASTM minimum thickness requirements ensures that the galvanized coating will still provide reliable corrosion protection for the intended application.
‍

Frequently Asked Questions About Thin Galvanized Coatings

Why are some galvanized coatings thinner than others?

Coating thickness is influenced by steel chemistry, particularly silicon content, as well as the thickness of the steel section and reaction time during galvanizing.

Does a thinner galvanized coating mean poor corrosion protection?

Not necessarily. If the coating meets the minimum thickness requirements defined by ASTM standards, it will provide the expected corrosion protection.

How does steel chemistry affect galvanizing?

Elements such as silicon and phosphorus influence how quickly the zinc iron alloy layers form during galvanizing, affecting final coating thickness.

What are aluminum killed steels?

Aluminum killed steels are produced using aluminum to control oxygen during steelmaking. These steels may produce thinner galvanized coatings due to reduced reactivity.

How is galvanized coating thickness measured?

Magnetic coating thickness gauges are commonly used to measure the zinc coating thickness on galvanized steel.

Do thicker steel sections produce thicker coatings?

Yes. Heavier steel retains heat longer during galvanizing, allowing the zinc iron reaction to continue longer and produce thicker coatings.

Should coating thickness be verified during inspection?

Yes. Multiple thickness measurements are typically taken to confirm compliance with ASTM coating thickness requirements.

Can coating thickness vary across a single component?

Yes. Minor variations in thickness are normal due to differences in cooling rates, steel chemistry, and geometry.

‍
