Metallurgical Defects and Galvanizing Surface Quality

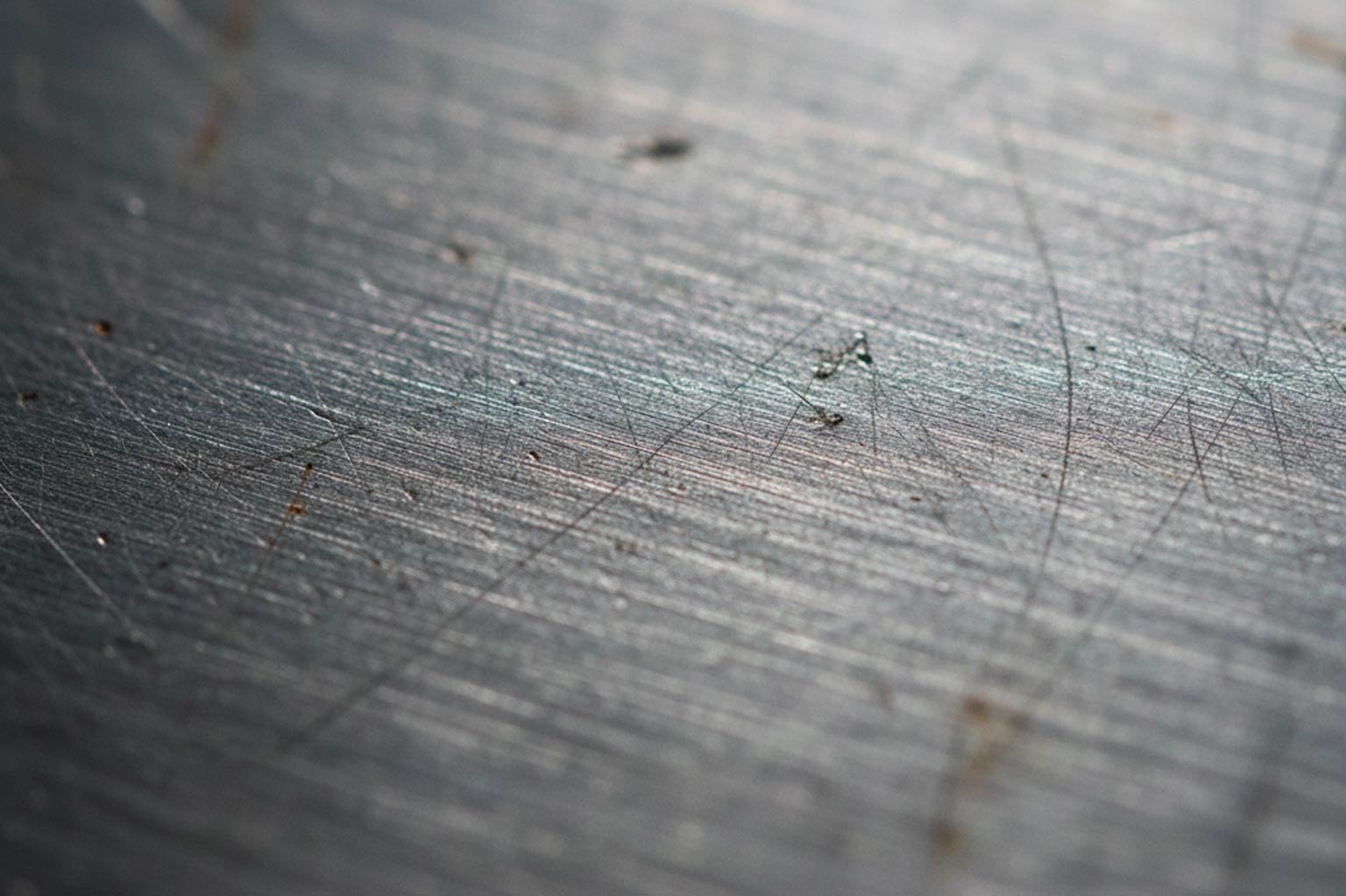

Steel surface quality directly influences the final appearance of hot-dip galvanized coatings. While galvanizing processes can accommodate typical mill scale, surface rust, and minor surface irregularities, certain manufacturing defects present challenges that extend beyond galvanizing process control. Steel laps represent one such condition—a manufacturing defect originating during primary steel production that manifests as unacceptable surface roughness after hot-dip galvanizing despite producing minimal visual impact on ungalvanized steel.
Understanding steel laps, their metallurgical origins, identification challenges, and implications for galvanized product quality enables informed material procurement decisions and establishes realistic expectations regarding surface appearance for affected products.
Defining Steel Laps: A Manufacturing Defect
Steel laps are surface discontinuities formed during hot rolling operations at steel mills. During the rolling process, metal folds over onto itself without fusion, creating a seam or overlap on the finished steel surface. This folded material remains attached to the parent steel but forms a distinct boundary representing the interface between the lapped material and the underlying substrate.
The lap creates a thin layer of steel partially detached from the base metal, often with oxides or scale trapped at the interface. In ungalvanized steel, laps may appear as subtle linear markings, slight surface irregularities, or remain essentially invisible to casual inspection. The defect's low visual prominence on raw steel contributes significantly to detection challenges.
Susceptible Product Forms
Steel laps occur predominantly on hot-formed semi-finished products where extensive plastic deformation during manufacturing creates conditions conducive to surface folding. Product forms exhibiting elevated lap incidence include:
Flat Bar Stock: Rectangular cross-section bars produced through hot rolling processes
Round and Square Bar Stock: Solid sections formed through progressive rolling reduction
Structural Angles: L-shaped sections with particular vulnerability at the heel (inside corner) region where complex metal flow patterns occur during forming
Channel Sections: U-shaped structural members experiencing complex deformation during roll forming
These product categories share common manufacturing characteristics: substantial thickness reduction during hot rolling, multiple rolling passes, and complex cross-sectional geometries requiring sophisticated roll configurations. Each factor increases the probability of surface folding that creates laps.
Regional Incidence Patterns
Steel lap occurrence shows geographic and temporal concentration rather than uniform distribution across all steel sources. Specific steel mills or production campaigns may generate elevated lap rates due to:
- Roll condition and maintenance schedules
- Adjustments to rolling parameters (temperature, reduction ratios, speed)
- Changes in raw material characteristics
- Production equipment modifications or tooling changes
This variability means lap issues may emerge suddenly when steel supply chains shift to new mills or when established suppliers implement process changes. The Pacific Northwest region of North America has experienced concentrated lap incidence, though the issue is not geographically exclusive.
The Galvanizing Transformation: Revealing Hidden Defects
The dramatic visual transformation of steel laps during hot-dip galvanizing stems from the metallurgical reactions occurring at the zinc-steel interface. Understanding this mechanism explains why laps invisible on raw steel become prominent surface defects after coating.
Preferential Zinc-Iron Reaction
Hot-dip galvanizing involves immersing steel in molten zinc at approximately 840°F (450°C). At this temperature, zinc reacts with iron to form a series of zinc-iron intermetallic alloy layers. The reaction rate and resulting coating structure depend on multiple factors including steel chemistry, surface condition, and thermal exposure.
At steel laps, the folded metal creates a partially separated thin layer with a large surface area-to-volume ratio. When immersed in molten zinc, several phenomena occur:
Enhanced Zinc Access: The gap or partial separation at the lap interface allows molten zinc to penetrate beneath the lapped material, coating both the underlying steel surface and the underside of the lap itself.
Differential Thermal Response: The thin lapped material heats rapidly and may experience different galvanizing reactions compared to the bulk steel substrate.
Trapped Material Interaction: Oxides, scale, or contaminants trapped at the lap interface may interact with the molten zinc or undergo thermal decomposition, potentially generating gas pressure that forces the lap away from the substrate.
Coating Buildup: Zinc accumulation within and around the lap region creates thickness variation and surface irregularities.
These combined effects transform the subtle lap marking into a pronounced raised feature—often described as sharp spikes or ridges—protruding from the otherwise relatively smooth galvanized surface.
Characteristic Appearance
Galvanized steel laps exhibit distinctive visual and tactile properties:
- Sharp, raised ridges: Linear features projecting noticeably above the surrounding surface
- Irregular texture: Rough, uneven zinc buildup around the lap zone
- Directional orientation: Laps typically align with the rolling direction from steel manufacturing
- Variable severity: Individual laps range from minor roughness to prominent spikes exceeding 1/16 inch in height
The severity and frequency of visible laps vary considerably among affected steel pieces, even within the same production lot. Some pieces may exhibit numerous prominent laps while adjacent pieces show minimal defects despite originating from the same steel heat.
Pre-Galvanizing Detection Challenges
Identifying steel laps before galvanizing presents significant practical difficulties. Unlike obvious surface defects such as deep pits, heavy rust, or pronounced scratches, laps maintain low visual contrast with surrounding steel surfaces.
Inspection Limitations
Visual Inspection: Laps often appear as faint lines or slight texture variations easily overlooked during routine receiving inspection. Lighting conditions, surface finish, and inspector experience significantly affect detection probability.
Tactile Inspection: Running fingers or cloth across steel surfaces may reveal slight ridges corresponding to laps, but subtle examples escape tactile detection.
Dimensional Impact: Laps typically do not significantly affect product dimensions or cross-sectional properties, preventing identification through standard dimensional verification.
Scale Camouflage: Mill scale or surface rust obscures lap visibility, particularly on as-rolled steel products.
Testing Methods
Advanced non-destructive testing methods offer improved lap detection capability but present implementation challenges:
Magnetic Particle Inspection: Can reveal surface discontinuities including laps but requires surface preparation, specialized equipment, and trained inspectors—impractical for routine material receiving inspection.
Dye Penetrant Testing: Similarly capable but equally impractical for production volume screening.
Ultrasonic Testing: May detect laps in thick sections but requires sophisticated equipment and interpretation expertise.
The cost, time, and technical requirements of these methods preclude their routine application for galvanizing shop material screening, leaving visual inspection as the primary pre-galvanizing detection method despite its limitations.
Pre-Galvanizing Treatment Attempts
Recognition of lap-related surface problems has prompted investigation of various pre-galvanizing treatment methods to eliminate or mitigate the defect before coating. Unfortunately, standard galvanizing surface preparation processes and supplemental mechanical treatments have demonstrated limited effectiveness.
Extended Chemical Cleaning
Increasing acid pickling time or using more aggressive cleaning solutions fails to eliminate laps because the defect is a physical discontinuity in the steel rather than surface contamination. While chemical treatment may remove scale or oxides from the lap interface, it does not cause the folded material to fuse with the substrate or remove the physical gap.
Mechanical Surface Preparation
Abrasive Blasting: Directing high-velocity abrasive media at steel surfaces removes mill scale and can slightly smooth some lap features but generally cannot eliminate the underlying structural defect. Aggressive blasting sufficient to remove laps risks excessive dimensional loss and surface damage.
Wheel Abrading: Rotary abrasive wheels applied to steel surfaces produce similar limitations—surface improvement without complete lap elimination.
Grinding: Localized grinding can remove individual laps but proves economically impractical for parts with numerous defects or large surface areas.
These mechanical methods provide marginal improvement at best while adding significant processing cost and time. No pre-galvanizing treatment reliably eliminates steel laps without unacceptable steel removal or dimensional impact.
Post-Galvanizing Remediation Considerations
The prominent appearance of laps after galvanizing naturally prompts consideration of post-coating surface smoothing or repair. However, several factors complicate remediation efforts.
Structural Characteristics
Galvanized laps consist of steel material (the folded lap itself) coated with zinc. Attempts to grind, file, or otherwise remove the raised spike expose the underlying steel substrate because the defect extends below the original steel surface. This differs from excess zinc buildup (such as dross inclusions) that can be removed without exposing bare steel.
Repair Requirements
Any smoothing operation that exposes bare steel requires subsequent repair to restore corrosion protection:
ASTM A780 Repair Products: Zinc-rich coatings applied to small bare areas provide localized protection. The repair process involves:
- Smoothing the raised lap to an acceptable profile
- Cleaning the exposed steel
- Applying zinc-rich paint or thermal spray zinc
- Allowing adequate cure time before service
Labor Intensity: Parts with numerous laps require extensive hand work, significantly increasing project costs and schedules.
Cathodic Protection Considerations
The galvanic nature of zinc coatings provides some remediation flexibility. Small areas of exposed steel surrounded by zinc coating receive cathodic protection from the adjacent zinc, which acts as a sacrificial anode. This electrochemical protection tolerates small bare spots without immediate corrosion initiation.
However, reliance on cathodic protection involves tradeoffs:
- Reduced coating life: Protecting bare steel accelerates zinc consumption in adjacent areas
- Size limitations: Cathodic protection effectiveness diminishes as bare area size increases
- Aesthetic concerns: Exposed steel presents visual inconsistency with surrounding galvanized surfaces
- Application restrictions: Critical structural components or aggressive environments may not tolerate bare areas regardless of cathodic protection availability
Impact on Duplex Systems
Steel laps present particularly significant challenges when galvanized components will receive subsequent paint or powder coating to create duplex corrosion protection systems. The raised, rough surface profile interferes with topcoat application and performance:
Surface Preparation Difficulties: Sharp spikes and irregular surfaces complicate achieving the uniform surface profile required for optimal paint adhesion.
Coating Application Problems: Uneven surfaces lead to inconsistent topcoat thickness, with inadequate coverage over sharp peaks and excessive buildup in adjacent valleys.
Aesthetic Degradation: Surface irregularities remain visible through the topcoat, particularly with thin or semi-gloss finishes.
Adhesion Concerns: Sharp features create stress concentration points where topcoat adhesion may fail prematurely.
Projects specifying duplex systems require particularly careful attention to steel lap potential and may justify enhanced material screening or alternative steel sourcing to avoid compromised final appearance.
Railing and Architectural Applications
Railings and architectural metalwork frequently involve products susceptible to laps (angles, rectangular tubing, decorative bars) while demanding high aesthetic standards due to prominent visibility and frequent human contact. The combination of susceptible products and strict appearance requirements elevates lap concerns:
Tactile Issues: Sharp raised spikes present comfort and safety concerns for handrails and other frequently touched surfaces.
Visual Prominence: Architectural applications receive critical visual scrutiny where surface irregularities prove unacceptable.
Remediation Economics: Extensive hand finishing required to smooth numerous laps may render projects economically nonviable.
These applications warrant proactive material qualification and possible specification of lap-free steel certifications or upgraded steel grades with superior surface quality control.
Responsibility and Quality Expectations
Establishing appropriate responsibility allocation for lap-related appearance issues requires understanding the defect's origin and control possibilities.
Manufacturing Source
Steel laps originate during primary steel production at the mill, resulting from rolling process conditions beyond galvanizing facility control. Galvanizers receive steel "as rolled" with any manufacturing defects already present.
Detection Limitations
The difficulty of identifying laps before galvanizing, combined with the impracticality of implementing advanced NDT screening for every part, means galvanizers cannot reasonably guarantee lap-free surfaces.
Process Constraints
Standard galvanizing processes—chemical cleaning, galvanizing, and post-galvanizing handling—do not create laps nor can they reliably eliminate existing laps without compromising coating integrity or product dimensions.
These factors establish that galvanizers cannot be held responsible for lap presence or the subsequent appearance of lapped surfaces after coating. Addressing lap issues requires intervention at the steel manufacturing level or careful material selection during procurement.
Procurement Strategies and Material Selection
Minimizing lap-related project risks requires proactive material procurement strategies:
Mill Source Qualification
Performance History: Prioritize steel suppliers with demonstrated low lap incidence based on historical project performance.
Quality Systems: Select mills with robust surface quality control programs and responsive customer service for quality issues.
Geographic Diversity: Maintain multiple qualified sources to enable rapid supply chain adjustment if lap issues emerge from a particular mill.
Material Specifications
Surface Quality Requirements: Where critical, specify steel surface quality standards (such as ASTM A6 supplementary requirements) addressing surface discontinuity limits.
Mill Test Reports: Request certifications confirming compliance with surface quality specifications.
Sample Inspection: Require pre-production samples for surface quality verification on large projects with strict appearance standards.
Product Selection
Cold-Formed Alternatives: Where structurally acceptable, specify cold-formed products (such as cold-rolled flat bar or drawn bar stock) that typically exhibit lower lap incidence than hot-formed equivalents.
Grade Selection: Premium steel grades often receive enhanced surface inspection and processing control, potentially reducing lap probability.
Alternative Cross-Sections: Engineering analysis may identify alternative structural shapes less susceptible to laps while meeting performance requirements.
Industry Investigation and Future Solutions
Addressing steel lap issues requires industry-wide collaboration among steel producers, galvanizers, fabricators, and end users. Ongoing investigation efforts focus on multiple approaches:
Mill Process Optimization: Working with steel producers to identify and eliminate rolling conditions that promote lap formation.
Enhanced Detection Methods: Developing practical, cost-effective lap detection techniques applicable to production environments.
Predictive Analysis: Establishing steel chemistry or processing parameter correlations with lap probability to enable proactive avoidance.
Improved Remediation: Investigating surface treatment methods that effectively eliminate or minimize laps without excessive cost or process complexity.
Until reliable prevention or remediation methods emerge, project teams must account for potential lap-related appearance variability and associated schedule or cost impacts when specifying galvanizing for susceptible product forms.
Communication and Expectations Management
Successful project execution despite lap risks requires transparent communication among stakeholders:
Design Phase: Architects and engineers should understand lap potential when specifying galvanizing for susceptible products, particularly for appearance-critical applications.
Procurement Phase: Fabricators should communicate surface quality expectations to steel suppliers and establish material acceptance criteria addressing laps.
Pre-Galvanizing: Galvanizers should notify customers if visual lap indicators appear during receiving inspection, enabling informed decisions about proceeding with coating.
Post-Galvanizing: If laps become prominent after coating, frank discussion among all parties regarding remediation options, cost responsibility, and acceptance criteria prevents adversarial relationships and supports practical problem resolution.
Steel laps represent manufacturing defects originating during hot rolling operations that manifest as rough, raised surface features after hot-dip galvanizing. The defect's low visibility on ungalvanized steel, resistance to standard surface preparation methods, and metallurgical behavior during galvanizing create unique quality challenges extending beyond galvanizing process control. Post-galvanizing remediation presents practical difficulties due to the steel substrate within raised features, often exposing bare metal during smoothing operations. Applications requiring superior surface appearance—particularly duplex systems and architectural railings—face elevated risk when using hot-formed semi-finished products susceptible to laps. Addressing this issue requires proactive material procurement strategies including careful mill source selection, appropriate material specifications, and realistic appearance expectation setting. While industry investigation continues toward improved detection and prevention methods, current best practice emphasizes material qualification and stakeholder communication to minimize lap-related project impacts. To find more information on rough surface condition due to steel laps, visit the original AGA resource document.
