Understanding SSPC-SP 8: Origin, Intent, and Appropriate Applications
SSPC-SP 8, formally titled "Surface Preparation Standard No. 8 - Pickling," represents one of numerous surface preparation standards developed by SSPC: The Society for Protective Coatings (now part of AMPP - Association for Materials Protection and Performance). This standard establishes requirements for acid pickling as a surface preparation method specifically intended for steel that will receive protective paint coatings. Understanding the standard's original purpose and technical requirements proves essential to recognizing why its application to hot-dip galvanizing pretreatment creates inappropriate expectations and unnecessary complications.
The SSPC organization developed its suite of surface preparation standards primarily to serve the protective coatings industry, where paint and other organic coating systems require carefully prepared steel substrates to achieve proper adhesion and long-term performance. In paint system applications, acid pickling often serves as the primary or sole method for removing mill scale, rust, and contaminants from steel surfaces before coating application. The pickling process etches the steel surface, creating a clean, chemically active substrate that promotes paint adhesion through both mechanical and chemical bonding mechanisms.
SSPC-SP 8 reflects this paint-preparation context through its technical requirements addressing pickling solution chemistry, process parameters, rinse water quality, and acceptance criteria. These provisions make perfect sense when acid pickling represents the final surface preparation step before paint application. However, attempting to impose these paint-oriented requirements onto the fundamentally different hot-dip galvanizing process creates misalignment between standard requirements and actual process needs.

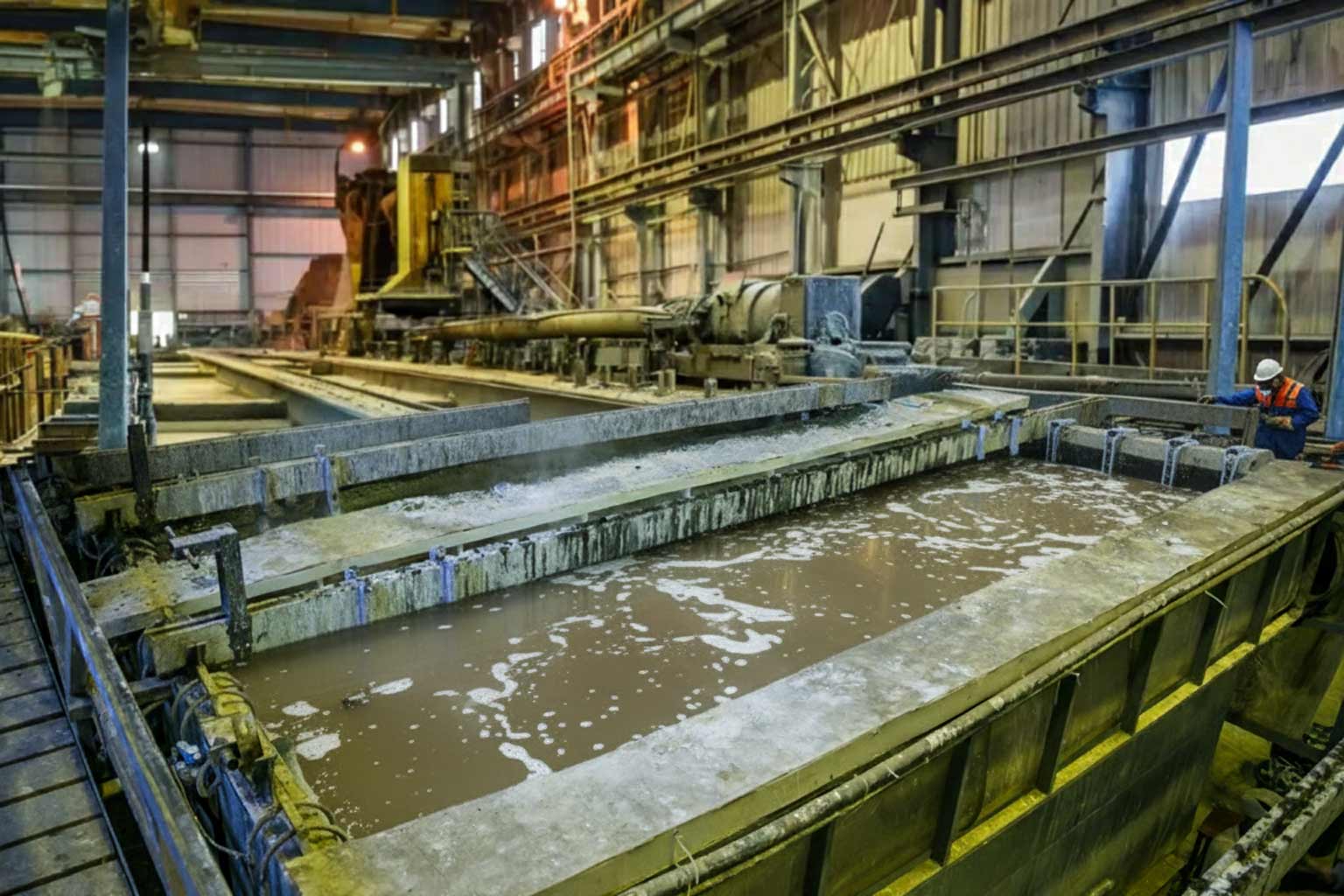

The Hot-Dip Galvanizing Pretreatment Sequence: A Fundamentally Different Process
Hot-dip galvanizing employs a multi-stage pretreatment sequence designed specifically to prepare steel surfaces for metallurgical bonding with molten zinc. This process differs fundamentally from paint surface preparation in both its chemical mechanisms and its process architecture. Recognizing these differences explains why standards developed for paint preparation cannot be directly transferred to galvanizing pretreatment.
Stage 1: Caustic Degreasing
The galvanizing pretreatment sequence typically begins with caustic degreasing using hot alkaline solutions, often based on sodium hydroxide or similar alkaline compounds maintained at temperatures between 150°F and 180°F (65°C to 82°C). This initial cleaning stage removes organic contaminants including oils, greases, drawing compounds, and other hydrocarbon-based materials through saponification reactions that convert these substances into water-soluble soaps.
Caustic degreasing proves highly effective at removing organic contaminants but does not attack iron oxides (rust and mill scale) or the steel substrate itself. Following degreasing, steel moves through water rinse stages to remove residual alkaline solution and dissolved contaminants before proceeding to acid pickling.
Stage 2: Acid Pickling
Acid pickling in galvanizing pretreatment employs either hydrochloric acid or sulfuric acid solutions to remove iron oxide scale and rust from steel surfaces. The pickling stage serves a distinctly different purpose in galvanizing compared to paint preparation. For paint systems, pickling often aims to etch the steel surface, creating microscopic roughness that enhances paint adhesion. For galvanizing, pickling simply removes oxide layers to expose clean metallic iron capable of reacting with molten zinc.
The acid pickling chemistry in galvanizing plants operates within concentration ranges and temperature conditions optimized for iron oxide removal efficiency while minimizing attack on the steel substrate. As pickling baths dissolve iron oxides over time, dissolved iron concentrations increase. Galvanizers monitor and manage these iron concentrations to maintain pickling effectiveness, replacing or regenerating solutions when dissolved iron levels compromise performance.
Following acid pickling, steel passes through additional water rinse stages to remove residual acid and dissolved iron salts before entering the fluxing stage.
Stage 3: Flux Treatment - The Critical Distinction
The flux treatment stage represents the fundamental difference distinguishing galvanizing pretreatment from paint preparation processes. Following acid pickling and rinsing, steel destined for galvanizing receives treatment with zinc-ammonium chloride flux solutions. This flux serves multiple critical functions:
The flux continues removing any residual iron oxides remaining after pickling, providing a secondary cleaning action that ensures completely oxide-free steel surfaces entering the zinc bath.
More importantly, the flux prevents reoxidation of cleaned steel surfaces during the interval between pretreatment completion and zinc bath immersion. Iron surfaces freshly cleaned by acid pickling begin reoxidizing within minutes when exposed to atmospheric oxygen and moisture. This flash rusting would prevent proper zinc-iron metallurgical bonding if not controlled. The flux coating deposited on steel surfaces during flux treatment acts as a protective barrier preventing oxygen access until the steel enters molten zinc.
Additionally, the flux promotes zinc wetting during galvanizing, reducing surface tension effects that might otherwise prevent complete zinc coverage of complex geometries or recessed areas.
Flux application occurs through either wet fluxing (immersion in aqueous flux solution followed by drying) or the Kettle Top Flux process where flux floats as a molten layer on the zinc bath surface. Regardless of application method, the flux stage provides continuing surface preparation activity that extends well beyond what acid pickling alone accomplishes.
This multi-stage process architecture - caustic cleaning, acid pickling, and flux treatment working in concert - achieves surface preparation outcomes that differ fundamentally from single-stage acid pickling for paint preparation. The presence of the flux stage makes many SSPC-SP 8 requirements irrelevant or inappropriate for galvanizing pretreatment.
Specific SSPC-SP 8 Requirements and Their Inapplicability to Galvanizing
Examining the specific technical requirements within SSPC-SP 8 reveals why the standard proves poorly suited to galvanizing pretreatment specification. Each requirement reflects assumptions about process architecture and objectives that do not align with galvanizing chemistry and operational needs.
Acid Inhibitor Requirements
SSPC-SP 8 mandates the use of acid inhibitors during pickling operations using sulfuric, hydrochloric, or phosphoric acid. Acid inhibitors are chemical compounds that adsorb onto steel surfaces, forming molecular films that reduce the rate of acid attack on metallic iron while maintaining acid reactivity toward iron oxides. For paint preparation pickling where the goal involves removing oxides while minimizing substrate etching, inhibitors provide valuable process control.
However, inhibitor requirements create complications in galvanizing pretreatment. Some acid inhibitors leave residual films on steel surfaces that can interfere with subsequent flux treatment or zinc-iron bonding during galvanizing. While modern inhibitor formulations designed specifically for galvanizing applications avoid these issues, mandating inhibitor use without specification flexibility may force use of inappropriate products.
More fundamentally, the flux treatment stage in galvanizing provides protection against excessive substrate attack that eliminates the primary justification for inhibitor requirements. The relatively brief immersion times in galvanizing pickling baths combined with subsequent flux protection mean that substrate attack concerns driving SSPC-SP 8 inhibitor requirements prove less critical in galvanizing applications.
Heated Rinse Requirements
SSPC-SP 8 specifies that pickling operations must be followed by heated rinse water maintained above 140°F (60°C). This requirement addresses concerns about flash rusting on freshly pickled steel destined for paint coating. Warm rinse water promotes rapid evaporation, reducing the time freshly cleaned steel surfaces remain wet and susceptible to oxidation before paint application.
For galvanizing pretreatment, this heated rinse requirement addresses a non-existent problem. Steel exiting the galvanizing pickling stage proceeds directly to flux treatment, where the flux coating prevents reoxidation regardless of rinse water temperature. The flux stage eliminates the flash rusting concerns that justify heated rinse requirements in paint preparation.
Mandating heated rinse water for galvanizing pretreatment provides no technical benefit while imposing energy costs and operational complexity without corresponding quality improvement. Many galvanizing facilities operate ambient-temperature rinse systems with excellent results because the subsequent flux treatment provides the necessary oxidation protection.
Dissolved Iron Content Limits
SSPC-SP 8 establishes maximum dissolved iron concentration limits for pickling solutions: 6% for sulfuric acid baths and 10% for hydrochloric acid baths. These limits recognize that excessive dissolved iron reduces pickling efficiency and can cause iron salt precipitation onto pickled steel surfaces, potentially interfering with paint adhesion.
Galvanizers similarly monitor and control dissolved iron concentrations in pickling baths to maintain pickling effectiveness. However, the specific concentration limits in SSPC-SP 8 may not align with optimal operating parameters for galvanizing pickling. Different acid concentrations, temperatures, and immersion times used in galvanizing compared to paint preparation pickling mean that dissolved iron tolerance varies between applications.
Performance-based galvanizing specifications allow galvanizers to establish and maintain pickling bath chemistry based on actual process performance and coating quality results rather than imposing arbitrary concentration limits developed for different process objectives.
Rinse Water Purity Requirements
SSPC-SP 8 mandates that rinse water consist continuously of only clean water or steam condensate, with total acid or dissolved salt carryover not exceeding two grams per liter (0.2% by weight). These stringent requirements aim to prevent contamination of steel surfaces that might interfere with paint adhesion.
While galvanizers maintain rinse water quality through periodic replacement and overflow systems, the extreme purity levels specified in SSPC-SP 8 prove unnecessary for galvanizing. The subsequent flux treatment stage provides a final cleaning action that tolerates modest levels of residual contamination in rinse water. Additionally, the molten zinc bath itself acts as a final purification stage, with zinc's high temperature and reactive chemistry providing a forgiving final environment that tolerates minor surface contamination levels that would prove problematic for paint systems.
Imposing SSPC-SP 8 rinse water purity requirements on galvanizing operations creates monitoring and documentation burdens without corresponding quality benefits, potentially requiring water treatment infrastructure investments that provide no return in coating performance.
Visual and Etching Acceptance Standards
SSPC-SP 8 requires that the galvanizer and customer agree on visual and/or etching standards to evaluate pickling acceptability. For paint preparation, where surface roughness directly impacts paint adhesion, surface appearance and etching depth represent relevant quality parameters requiring specification.
For galvanizing, surface appearance after pickling holds limited relevance to final coating quality. The flux treatment and subsequent reaction with molten zinc create entirely new surface conditions that bear no relationship to post-pickling appearance. A steel surface appearing slightly oxidized or unevenly etched after pickling may produce perfectly uniform, high-quality galvanized coating after flux treatment and galvanizing.
Attempting to establish meaningful visual acceptance criteria for intermediate stages in the galvanizing pretreatment sequence proves impractical and irrelevant to actual coating quality. The only meaningful acceptance criteria for galvanizing involve the finished galvanized coating characteristics—thickness, coverage, adhesion, and appearance—as specified in performance-based galvanizing standards.
Performance-Based Galvanizing Specifications: The Appropriate Alternative
Rather than attempting to specify galvanizing pretreatment through process-prescriptive standards like SSPC-SP 8, industry best practice employs performance-based specifications that define required coating outcomes while leaving pretreatment methods and parameters to galvanizer expertise and process optimization. This approach recognizes that galvanizers possess specialized knowledge about the complex interactions among steel chemistry, pretreatment chemistry, and galvanizing conditions necessary to achieve quality coatings.
ASTM A123/A123M: Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products
ASTM A123/A123M represents the primary specification for batch hot-dip galvanizing of fabricated iron and steel products. This comprehensive performance-based standard establishes requirements for coating thickness, coverage, finish, adhesion, and uniformity without prescribing specific pretreatment procedures.
The specification establishes minimum coating thickness requirements based on material thickness categories, recognizing that different steel section sizes develop different coating thicknesses under standard galvanizing conditions. Coating thickness requirements range from 1.4 mils (35 micrometers) for thin material to 3.9 mils (100 micrometers) for thick sections.
Coverage requirements mandate that all surfaces be completely coated with adherent zinc, with bare spots constituting grounds for rejection. The specification defines acceptable surface conditions and appearance characteristics while acknowledging that galvanized coating appearance varies based on steel chemistry and processing conditions.
Adhesion requirements specify that coatings shall be adherent to the basis metal such that when the galvanized article is subject to reasonable handling and use, no flaking or separation occurs. The specification prescribes testing procedures for adhesion verification when questions arise.
Critically, ASTM A123/A123M does not specify pretreatment procedures, chemical concentrations, or process parameters. The specification holds galvanizers accountable for achieving defined coating outcomes through whatever pretreatment approaches prove effective for their specific equipment, steel chemistries, and operating conditions. This performance-based philosophy recognizes that numerous pretreatment variations can produce equivalent coating quality.
ASTM A153/A153M: Zinc Coating (Hot-Dip) on Iron and Steel Hardware
ASTM A153/A153M provides similar performance-based requirements for hot-dip galvanizing of iron and steel hardware items including bolts, nuts, washers, rivets, and similar components. Like A123/A123M, this specification establishes coating thickness requirements, coverage standards, and finish characteristics without prescribing pretreatment methods.
The specification recognizes the unique challenges of galvanizing small hardware items, including potential for hydrogen embrittlement in high-strength fasteners and the need for coating thickness control to maintain dimensional tolerances. Performance requirements address these hardware-specific concerns while maintaining the performance-based approach to pretreatment.
ASTM A767/A767M: Zinc-Coated (Galvanized) Steel Bars for Concrete Reinforcement
ASTM A767/A767M establishes requirements specifically for galvanized reinforcing steel intended for concrete reinforcement applications. This specification recognizes the unique service environment for galvanized reinforcing steel embedded in concrete and establishes appropriate coating thickness and quality requirements.
The specification defines two coating thickness classes—Class I requiring heavier coatings for severe exposure and Class II providing standard protection—while maintaining the performance-based approach to pretreatment specification. Adhesion and formability requirements address the specific needs of reinforcing steel that may undergo post-galvanizing fabrication.
Why Performance-Based Specifications Serve Galvanizing Better Than Process Prescriptions
The performance-based philosophy embodied in ASTM galvanizing specifications offers multiple advantages over process-prescriptive approaches:
Process Optimization Flexibility
Performance-based specifications enable galvanizers to optimize pretreatment parameters for their specific equipment configurations, water chemistry, steel types, and production mixes. Variables including acid type and concentration, temperature, immersion time, rinse stages, and flux formulation can be adjusted to achieve optimal results for local conditions without requiring specification deviations or exemptions.
This flexibility proves particularly valuable as steel chemistries evolve, with increasing use of advanced high-strength steels, weathering steels, and other specialty grades requiring pretreatment parameter adjustments to achieve quality coatings.
Accountability for Results
Performance-based specifications place clear accountability on galvanizers for achieving defined coating quality rather than simply following prescribed procedures. A galvanizer cannot defend substandard coating quality by claiming compliance with specified pretreatment procedures; the coating itself must meet performance requirements.
This accountability structure motivates continuous process improvement and problem-solving when coating quality issues arise, as galvanizers bear responsibility for identifying and implementing corrective actions regardless of their pretreatment approach.
Technological Innovation
Performance-based specifications accommodate technological innovations in pretreatment chemistry and equipment without requiring specification revisions. New flux formulations, alternative cleaning chemistries, or novel rinse systems can be adopted when they demonstrate ability to produce coatings meeting performance requirements.
Process-prescriptive specifications, in contrast, can inadvertently prevent adoption of improved technologies that differ from prescribed procedures even when superior results would follow.
Simplified Specification Development
For engineers and architects specifying galvanized coatings, performance-based specifications simplify specification writing. Simply referencing ASTM A123/A123M or other appropriate performance standards provides complete and appropriate requirements without need to understand or specify pretreatment details.
Attempting to specify pretreatment procedures requires expertise in galvanizing chemistry and process control that most specifiers lack, creating potential for inappropriate requirements that complicate production without improving quality.
Addressing AASHTO M111 SSPC-SP 8 Reference
Some specifiers have encountered references to SSPC-SP 8 in AASHTO M111M/M111, "Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products," which is based on ASTM A123 but includes the added requirement for SSPC-SP 8 pickling standard compliance. This requirement was added without full appreciation of its implications for galvanizing operations and has created confusion and operational challenges for both galvanizers and project owners.
Industry consensus among galvanizing professionals holds that the SSPC-SP 8 requirement in AASHTO M111 should be waived for galvanizing applications. The American Galvanizers Association has provided technical guidance explaining why this requirement proves inappropriate for galvanizing pretreatment. Many state departments of transportation have recognized this issue and routinely waive the SSPC-SP 8 requirement when specifying galvanizing under M111.
When encountering project specifications requiring compliance with AASHTO M111 including SSPC-SP 8, galvanizers and contractors should proactively engage with project engineers and owners to request waiver of the pickling standard requirement. Providing technical rationale for the waiver request, including reference to standard galvanizing practice under ASTM A123/A123M, typically results in specification modification recognizing the inappropriateness of paint-preparation standards for galvanizing processes.
Best Practices for Specifying Galvanizing Pretreatment
To avoid complications associated with inappropriate pretreatment specifications, engineers and architects should follow these best practices:
Reference Performance-Based ASTM Standards
Specify galvanizing using appropriate ASTM performance-based standards—A123/A123M for fabricated products, A153/A153M for hardware, or A767/A767M for reinforcing steel—without adding prescriptive pretreatment requirements.
Avoid Paint-Preparation Standards
Do not reference SSPC surface preparation standards developed for paint systems when specifying galvanizing. These standards address different process objectives and create inappropriate expectations.
Communicate Special Concerns Directly
If specific concerns exist regarding steel cleanliness or surface condition, communicate these directly with the galvanizer rather than attempting to address them through inappropriate specification references. Galvanizers can provide guidance on achievable outcomes and any special pretreatment approaches that might be warranted.
Trust Galvanizer Expertise
Recognize that galvanizers possess specialized expertise in pretreatment chemistry and process control developed through years of production experience. Performance-based specifications leverage this expertise while maintaining appropriate accountability for coating quality.
Focus Inspection on Coating Performance
Direct quality assurance and inspection efforts toward the finished galvanized coating characteristics—thickness, coverage, appearance, and adhesion—rather than attempting to inspect or control pretreatment procedures. The coating quality represents the only meaningful measure of pretreatment adequacy.
SSPC-SP 8 represents a well-developed surface preparation standard serving important functions in the protective coatings industry for paint system surface preparation. However, this standard's technical requirements reflect paint-preparation objectives and process architecture that differ fundamentally from hot-dip galvanizing pretreatment needs.
The multi-stage galvanizing pretreatment sequence—incorporating caustic degreasing, acid pickling, and critical flux treatment—achieves surface preparation outcomes through mechanisms that make SSPC-SP 8 requirements irrelevant or inappropriate. The flux treatment stage, in particular, provides continuing surface preparation and oxidation protection functions that have no equivalent in paint-preparation processes.
Performance-based ASTM galvanizing specifications—including A123/A123M, A153/A153M, and A767/A767M—provide appropriate standards for specifying hot-dip galvanizing by defining required coating outcomes while enabling galvanizers to optimize pretreatment approaches for their specific conditions. This performance-based philosophy offers advantages including process optimization flexibility, clear accountability for results, accommodation of technological innovation, and simplified specification development.
Engineers, architects, and project owners should resist the temptation to impose paint-preparation standards like SSPC-SP 8 on galvanizing operations, recognizing that these standards address different process objectives and create complications without improving coating quality. When encountering specifications that inappropriately reference SSPC-SP 8 for galvanizing applications, proactive engagement to remove or waive such requirements serves the best interests of all project stakeholders in achieving quality galvanized coatings through appropriate specification approaches. The original AGA resource on the SSPC-SP 8 Pickling Standard contains more information.
