Shear Stud Installation Timing: Navigating Safety Requirements and Technical Constraints
The timing of shear stud installation relative to hot-dip galvanizing presents project stakeholders with a decision that balances worker safety regulations, coating quality, structural performance, and construction efficiency. Understanding the regulatory framework, technical challenges, and available solutions enables engineers and contractors to make informed decisions appropriate to specific project requirements.
Regulatory Context: OSHA Safety Standards for Steel Erection

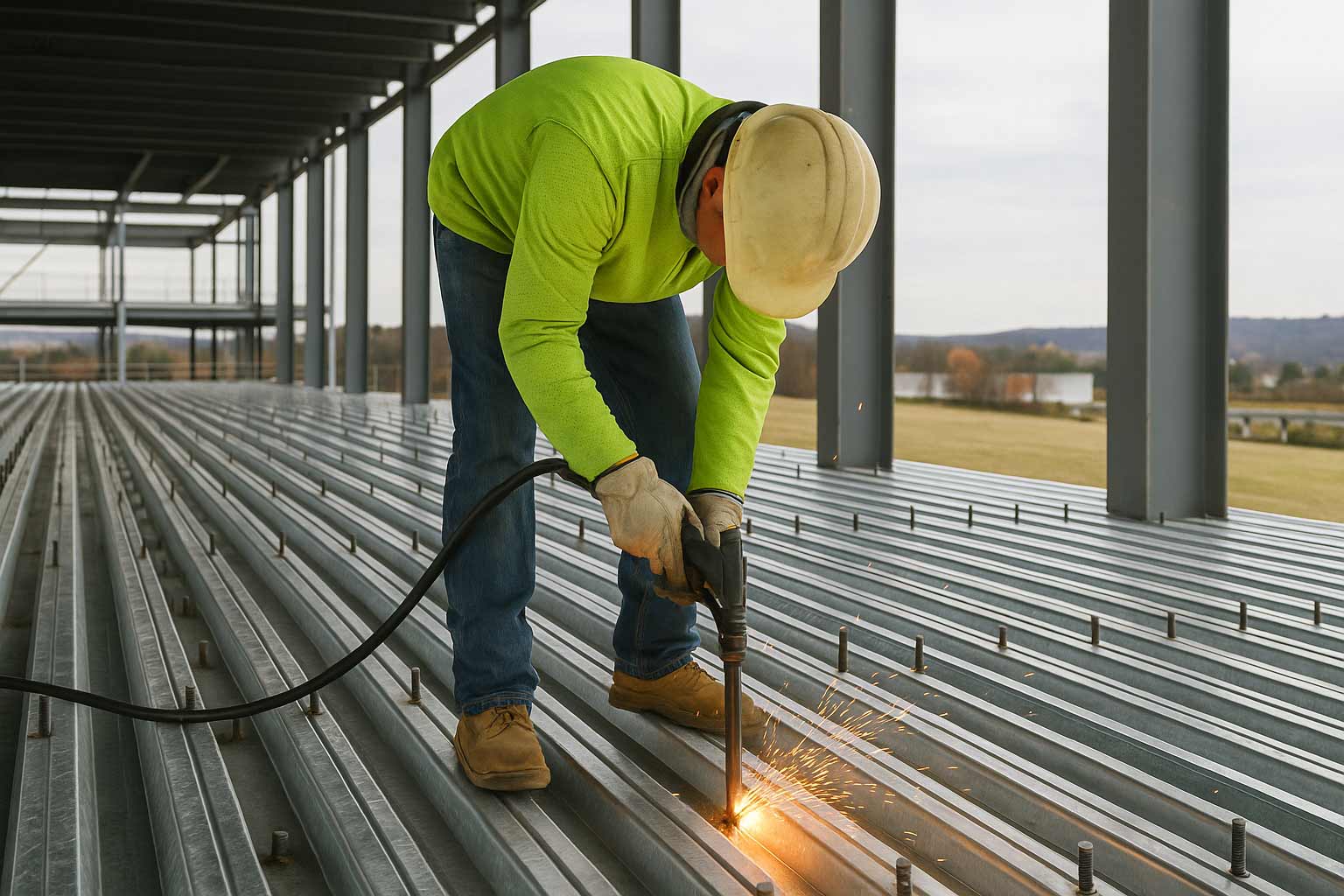

The Occupational Safety and Health Administration's final rule on Safety Standards for Steel Erection established requirements that significantly impact shear stud installation timing. These regulations mandate that shear connectors—commonly called shear studs or Nelson studs—be field-installed after steel erection to minimize tripping hazards during construction activities. The intent is to prevent workers from encountering protruding studs while walking on steel beams during the erection phase, reducing fall and trip-related injuries.
However, OSHA and the Federal Highway Administration (FHWA) have established exemption procedures to this general requirement. The application of these exemptions varies by state and project, with individual authorities having jurisdiction making determinations based on project-specific safety considerations and alternative protective measures. Designers and contractors must verify exemption availability and requirements early in the project planning phase.
Technical Challenges: Welding Shear Studs to Galvanized Surfaces
When shear studs must be installed after hot-dip galvanizing, welding directly to the zinc-coated surface introduces significant metallurgical challenges that affect weld quality and structural performance.
Zinc Contamination in the Weld Pool
The electric arc stud welding process creates a molten pool at the interface between the stud and the base metal. When performed on galvanized steel, zinc from the coating vaporizes in the arc and becomes entrapped in the weld pool. This zinc contamination fundamentally alters weld metallurgy, producing several detrimental effects:
- Porosity formation: Zinc vapor creates voids within the solidified weld metal
- Reduced fusion: Zinc interferes with metallurgical bonding between the stud and substrate
- Embrittlement: Zinc-contaminated welds exhibit reduced ductility and impact resistance
- Premature failure: Contaminated welds may not achieve required shear strength
Hot-dip galvanized coatings typically range from 3.5 to 5.0 mils (85 to 125 microns) in thickness, containing substantially more zinc than the thin galvanized coatings found on steel decking. This greater zinc mass exacerbates contamination issues when welding studs to galvanized structural beams.
Current Field Practices and Limitations
When field installation of shear studs to galvanized beams is required, two primary approaches are employed:
- Zinc removal by grinding: The galvanized coating is mechanically removed from each stud location prior to welding, exposing bare steel. This labor-intensive process increases installation time and cost, and the exposed steel requires post-welding touch-up to restore corrosion protection.
- Modified welding parameters: Some practitioners increase welding current and arc duration attempting to fully vaporize zinc before the stud is plunged into the molten pool. While this approach eliminates grinding, it produces inferior welds compared to those made on uncoated steel and generates substantial zinc fume exposure requiring enhanced worker protection.
Neither approach produces weld quality equivalent to installation on uncoated steel, though welds meeting minimum design requirements can be achieved with proper procedures and quality control.
Pre-Galvanizing Installation: Technical Advantages and Considerations
Installing shear studs before hot-dip galvanizing avoids the technical challenges associated with welding to zinc-coated surfaces and provides several advantages:
Complete Corrosion Protection
When shear studs are welded to bare steel prior to galvanizing, the entire assembly—including the studs, welds, and base metal—receives uniform zinc coating coverage during the galvanizing process. This eliminates uncoated areas that would otherwise require field touch-up and ensures continuous corrosion protection across all surfaces, including the critical weld zone.
Superior Weld Quality
Stud welding to clean, uncoated steel produces optimal metallurgical bonding without zinc contamination. The resulting welds exhibit:
- Full fusion to the base metal
- Uniform, dense weld structure free from porosity
- Predictable mechanical properties
- Reliable performance under design loads
Process Considerations
Concerns are sometimes raised regarding potential stud damage during the hot-dip galvanizing process. However, properly welded studs possess sufficient strength to withstand normal galvanizing handling without damage. The studs and their welds experience the same thermal cycle as the parent steel, with the zinc coating forming uniformly over all surfaces including the weld interface.
The galvanized coating on shear studs does not impair structural performance at serviceability limit states or ultimate limit states. Research has confirmed that the presence of the zinc coating on shear stud connectors does not significantly affect their load-transfer capacity or composite action in steel-concrete composite construction.
Masking as an Alternative Strategy
When pre-galvanizing stud installation is not feasible but post-galvanizing installation on uncoated steel is desired, masking stud locations before galvanizing provides an effective solution. This approach involves applying protective masking materials to designated stud locations that prevent zinc deposition during the galvanizing process, leaving these areas uncoated.
Masking Materials and Application
Successful masking requires materials that:
- Withstand the complete galvanizing process (caustic cleaning, acid pickling, fluxing, and molten zinc immersion at 840°F/449°C)
- Adhere tightly to prevent flux or zinc infiltration beneath the mask
- Remove cleanly after galvanizing without residue
Multiple layers of duct tape secured with spray adhesive have demonstrated effectiveness, though specialized high-temperature masking products designed for galvanizing applications may offer improved reliability. Tight, wrinkle-free application is essential—any gaps allow process solutions to penetrate beneath the mask, compromising its effectiveness.
Post-Galvanizing Installation on Masked Areas
After galvanizing and mask removal, the exposed steel areas can be cleaned with a wire brush and are immediately suitable for stud welding using standard parameters. This approach produces high-quality welds on clean steel while the surrounding structure benefits from hot-dip galvanized protection. The uncoated stud locations are subsequently covered by the concrete deck, providing protection from environmental exposure.
Current Research and Emerging Solutions
Recent updates to welding codes and ongoing research are investigating new approaches to address the technical challenges of field welding to coated steel.
Code Developments
The 2022 revision of the AASHTO/AWS D1.5M/D1.5 Bridge Welding Code introduced provisions allowing welders to perform field welding through protective coatings if they demonstrate qualification through appropriate testing. This code change reflects industry recognition that properly qualified procedures can produce acceptable welds through coatings in certain applications.
Research on Welding Through Coatings
Current research projects, including studies on the "Weldability of Bridge Steel with Protective Coatings," are investigating field welding procedures for shear studs that eliminate the need to remove hot-dip galvanizing or metallizing prior to welding. This research specifically examines:
- Flux-cored arc welding (FCAW) through zinc coatings on ASTM A709 Grade 50 bridge steel
- Arc stud welding (SW) through protective coatings
- Qualification procedures for welders performing through-coating welds
- Quality assurance methods for field-installed connections
If successful, these procedures could significantly reduce field labor requirements and minimize the extent of coating repair needed after stud installation.
Specifications and Industry Guidance
Multiple industry documents provide guidance on shear stud installation relative to hot-dip galvanizing:
- AASHTO/NSBA S8.3: The Hot-Dip Galvanizing Specification addresses field-applied shear stud considerations in Section 6.5
- Steel Construction Institute (SCI): Technical publications document the history and technical challenges of welding shear studs to galvanized beams
- American Galvanizers Association (AGA): Provides recommendations for stud welding on galvanized steel
Project specifications should clearly identify the required approach and any specific procedures, qualifications, or testing requirements applicable to the project.
Decision Framework for Project Teams
Selection of the optimal shear stud installation timing requires consideration of multiple factors:
Safety Considerations
- OSHA exemption availability in the project jurisdiction
- Alternative fall protection measures during steel erection
- Contractor safety program capabilities
Technical Requirements
- Weld quality requirements and acceptance criteria
- Availability of qualified welding procedures for coated steel
- Quality assurance and testing protocols
Cost and Schedule Implications
- Labor costs for masking, grinding, or field touch-up
- Schedule impacts of field installation versus shop installation
- Long-term maintenance considerations
The decision to install shear studs before or after hot-dip galvanizing involves balancing safety regulations, technical performance requirements, and project economics. Pre-galvanizing installation offers superior weld quality and complete corrosion protection but may require regulatory exemptions. Post-galvanizing field installation complies with OSHA requirements but introduces technical challenges requiring grinding, masking, or modified welding procedures. Ongoing research into through-coating welding procedures may provide improved options for future projects.
Project teams should engage early with galvanizers, steel fabricators, and erectors to establish the approach best suited to specific project requirements, ensuring coordination between design intent, regulatory compliance, and field execution capabilities. For more information refer to the original AGA resource on shear stud welding.
