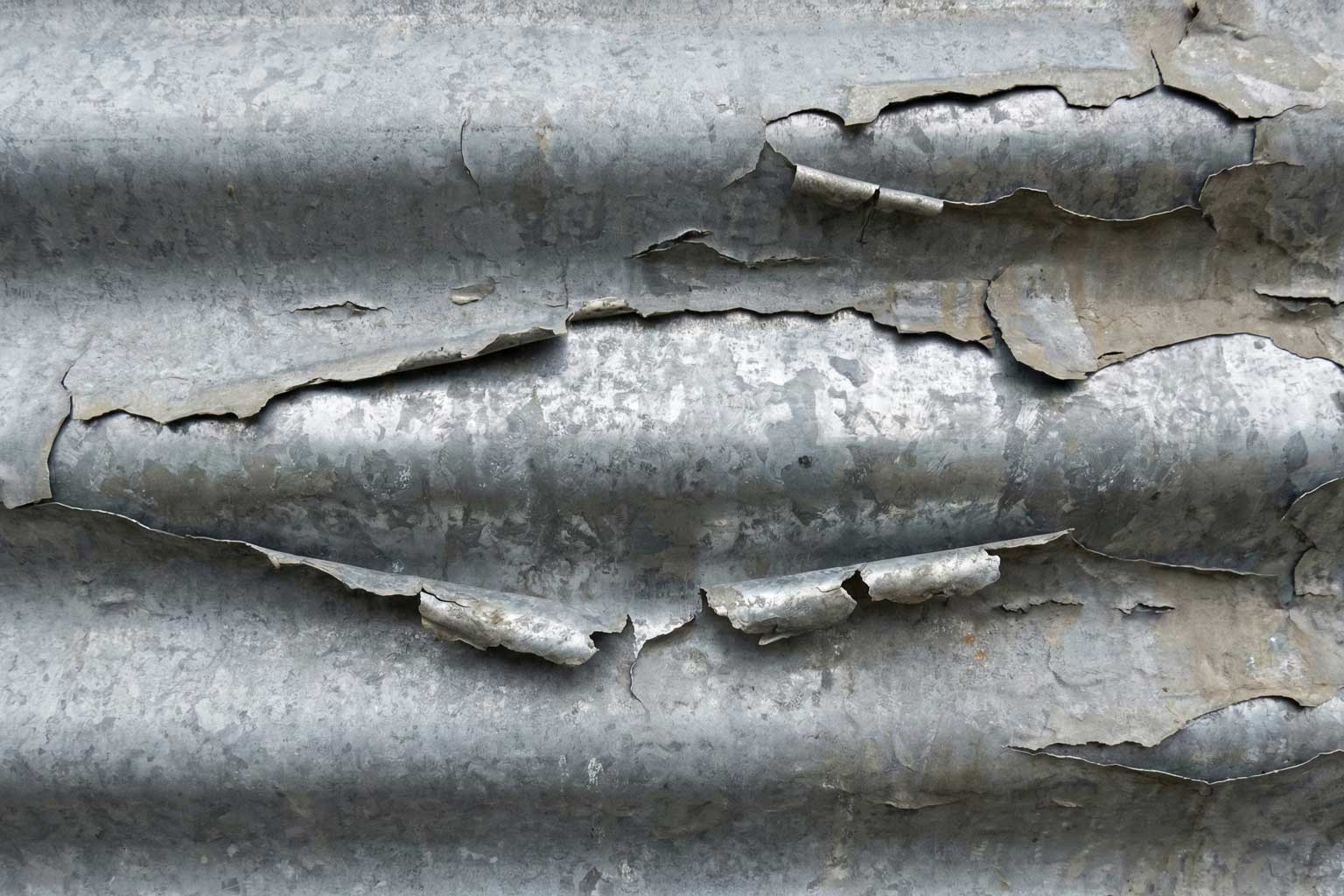

The Challenge of Thermally Cut Edges in Galvanizing
Steel fabrication involves numerous cutting operations to achieve required dimensions and configurations. While cutting method selection typically depends on material type, thickness, and dimensional tolerance requirements, the chosen technique significantly impacts subsequent hot-dip galvanizing performance—particularly at cut edge locations.
Thermal cutting methods—flame cutting, plasma cutting, and laser cutting—introduce substantial thermal energy into the steel substrate, fundamentally altering the microstructure and metallurgical properties within the heat-affected zone (HAZ) adjacent to cut edges. These microstructural changes modify the steel's diffusion characteristics during galvanizing, frequently resulting in thin, poorly adherent coatings at thermally cut edges that may flake during handling or service.
Understanding thermal cutting's metallurgical effects enables fabricators, galvanizers, and specifying engineers to implement preventive strategies that eliminate edge coating defects before they occur.
Thermal Cutting Processes and Their Metallurgical Impacts
Three thermal cutting technologies dominate modern steel fabrication, each producing distinct heat-affected zone characteristics that influence galvanizing performance.
Flame Cutting (Oxy-Fuel Cutting)
Flame cutting represents the most widely used thermal cutting method, offering versatility and economy for carbon steel applications.
Process mechanism: An oxygen-fuel gas mixture (typically oxygen-acetylene or oxygen-propane) preheats the steel to ignition temperature, then a high-pressure oxygen jet reacts exothermically with the iron, generating temperatures from 3,600°F to 6,000°F (1,982°C to 3,316°C). This exothermic reaction provides the cutting energy while the oxygen jet expels molten metal and oxides from the kerf.
Material limitations: Flame cutting functions only on materials whose oxides melt at lower temperatures than the base metal. This restricts application to carbon and low-alloy steels, excluding stainless steels and aluminum alloys.
Heat-affected zone dimensions: HAZ width varies with steel composition, thickness, and cutting speed:
- Typical range: 1/32 to 1/8 inch (0.8 to 3.2 mm) from the cut edge
- Thickness relationship: Thicker plates develop wider HAZs due to extended heating time and greater thermal mass
- Speed correlation: Slower cutting speeds increase HAZ width through prolonged thermal exposure
- Composition effects: Higher carbon content steels exhibit wider HAZs due to elevated thermal conductivity
Microstructural alterations: The HAZ experiences rapid heating followed by air cooling, creating:
- Grain coarsening in the near-edge region
- Formation of harder microstructural constituents (bainite, martensite in higher carbon grades)
- Surface decarburization from oxygen interaction
- Oxide scale formation requiring removal during galvanizing pre-treatment
These microstructural changes increase local hardness significantly—often 200 to 400% relative to base metal—fundamentally altering iron-zinc diffusion kinetics during galvanizing.
Laser Cutting
Laser cutting employs focused optical energy for precision cutting with minimal thermal disturbance.
Process mechanism: Computer-controlled laser optics direct a high-power laser beam (typically CO₂ or fiber laser) that rapidly heats and melts the steel. A pressurized gas jet (oxygen, nitrogen, or compressed air) expels molten material from the kerf, producing narrow cutting gaps with precise dimensional control.
Material versatility: Laser cutting accommodates diverse materials including carbon steel, stainless steel, aluminum, and non-metallic substrates.
Heat-affected zone dimensions:
- Typical range: 130 microns (0.005 inch or 5.2 mils) from the cut edge
- Narrowest HAZ: Among thermal cutting methods due to concentrated energy input and rapid heating/cooling cycles
- Microhardness increase: Approximately 200 to 250% of base metal hardness in the HAZ
Dimensional precision: Laser cutting delivers the tightest tolerances (±0.005 to ±0.010 inch or ±0.13 to ±0.25 mm) and cleanest cut surfaces, minimizing secondary finishing requirements.
Galvanizing implications: The minimal HAZ width limits the affected edge area, though microstructural hardening remains significant. Laser-cut edges typically present fewer coating formation challenges compared to flame or plasma cutting.
Plasma Cutting
Plasma cutting balances cutting speed, quality, and equipment cost between flame and laser technologies.
Process mechanism: An electrical arc ionizes gas (typically compressed air, nitrogen, or oxygen-nitrogen mixtures) flowing through a constricted nozzle, creating plasma at temperatures exceeding 45,000°F (25,000°C). This superheated plasma melts the steel while high-velocity gas flow removes molten metal from the kerf.
Material versatility: Plasma cutting processes any electrically conductive material regardless of surface condition—including rusted, painted, or scaled surfaces—without pre-cleaning requirements.
Heat-affected zone dimensions:
- Typical range: 380 microns (0.015 inch or 15.2 mils) from the cut edge
- Intermediate HAZ width: Wider than laser cutting but narrower than conventional flame cutting
- Microhardness increase: Approximately 200 to 250% of base metal hardness
Quality variations: Conventional plasma cutting produces HAZ characteristics similar to flame cutting. High-definition plasma cutting systems—employing refined torch designs, optimized gas mixtures, and enhanced electrical controls—achieve results approaching laser cutting quality with significantly narrower HAZs and reduced microstructural alteration.
Economic positioning: Plasma cutting offers faster cutting speeds than flame cutting for thin to medium-thickness materials (up to 1.5 inches or 38 mm) with superior edge quality, while maintaining lower capital and operating costs than laser systems.
Metallurgical Mechanisms Affecting Coating Formation
Thermal cutting's impact on galvanizing performance stems from interconnected metallurgical phenomena occurring in the heat-affected zone.
Microstructural Hardening and Reduced Diffusivity
Rapid thermal cycling during cutting transforms the near-edge microstructure:
Phase transformation: The steel austenitizes (transforms to face-centered cubic crystal structure) at cutting temperatures, then undergoes rapid cooling creating harder phases:
- Bainite: Intermediate hardness structure in low-carbon steels
- Martensite: High hardness structure in medium to high-carbon steels
- Fine pearlite: In slower-cooling regions of the HAZ
Diffusion impediment: These harder phases exhibit reduced atomic mobility compared to the ferritic base metal microstructure. During hot-dip galvanizing, iron atoms must diffuse from the steel substrate into the molten zinc to form iron-zinc intermetallic layers. Hardened HAZ microstructures impede this diffusion, resulting in:
- Thinner coating formation at thermally cut edges
- Incomplete iron-zinc alloy layer development
- Predominantly eta (η) layer coatings lacking the zeta (ζ) and delta (δ) intermetallic phases that provide optimal adhesion
Surface Oxidation and Decarburization
Thermal cutting occurs in atmospheric conditions where oxygen interaction alters edge surface chemistry:
Oxide formation: Heavy scale (iron oxide) develops on cut surfaces, particularly from flame cutting. While galvanizing pre-treatment (acid pickling or abrasive blasting) removes this scale, the oxidation process itself consumes carbon at the surface.
Decarburization effects: Carbon depletion in the outermost steel surface layer reduces hardenability but may paradoxically create a very thin surface layer with different diffusion characteristics than the immediately subsurface hardened zone.
Residual Stress Concentration
Thermal gradients during cutting generate residual tensile stresses near cut edges. These stresses superimpose with coating formation stresses during galvanizing, potentially exceeding the coating's mechanical strength and causing cracking or spalling at edges.
The Reactive Steel Amplification Effect
Thermal cutting edge defects intensify dramatically when combined with reactive steel chemistry—the synergistic worst-case scenario for edge coating quality.
Reactive Steel Characteristics
Steels containing silicon content from 0.04% to 0.15% (Sandelin range) or exceeding 0.22%, or those with phosphorus content above 0.04%, develop thick galvanized coatings (4 to 10+ mils or 100 to 250+ μm) through accelerated iron-zinc reaction kinetics.
Interaction at Thermally Cut Edges
When reactive steel undergoes thermal cutting:
Differential coating development: The body of the part develops thick, well-adhered coating through normal reactive steel mechanisms, while thermally cut edges develop thin, poorly adherent coatings due to HAZ diffusion impediments.
Stress intensification: Thick coatings generate substantial internal stresses during cooling from galvanizing temperature (approximately 840°F to 860°F or 449°C to 460°C) to ambient temperature due to differential thermal contraction between the zinc coating layers and the steel substrate. These stresses concentrate at the thin-thick coating transition zone at thermally cut edges.
Mechanical strength mismatch: The thick coating possesses greater brittleness than thinner coatings due to its composition (higher proportion of brittle gamma (Γ) and delta (δ) intermetallic phases). This brittle thick coating adjacent to weak thin edge coating creates an ideal configuration for mechanical failure.
Spalling initiation: Material handling during inspection, packaging, and shipment—particularly edge contact with forklifts, pavement, or other galvanized parts—applies mechanical stress to the already weak edge zone, initiating coating fracture that propagates inward from edges.
Prevention Strategy 1: Edge Preparation Before Galvanizing
Post-cutting edge treatment removes or mitigates the heat-affected zone before galvanizing.
Mechanical Grinding
Depth requirements: Remove 1/16 inch (1.6 mm) minimum from thermally cut edge faces to eliminate the majority of the HAZ. For flame-cut thick plates with wider HAZs, grinding depths up to 1/8 inch (3.2 mm) may prove necessary.
Equipment selection:
- Angle grinders with coarse abrasive discs (36 to 60 grit) for manual operations
- Belt sanders or disc grinders for production environments
- Automated grinding systems for high-volume repetitive parts
Quality verification: Ground edges should exhibit uniform bright metal appearance without heat tint discoloration, indicating complete HAZ removal. Magnetic particle inspection or hardness testing can verify effective HAZ elimination for critical applications.
Implementation considerations:
Isolated defects: When thermally cut edge coating issues appear sporadically during galvanizing plant inspection, the galvanizer may perform localized grinding as a corrective measure before re-immersion or as a post-galvanizing repair.
Pattern defects: When systematic edge coating problems occur across multiple pieces or orders, the root cause lies in the fabrication process. Documenting the pattern and communicating with the fabricator justifies implementing grinding as a standard fabrication operation before shipment to the galvanizer.
Economic justification: Edge grinding at the fabrication shop proves more cost-effective than galvanizing plant grinding or field repair because:
- Fabricators maintain appropriate grinding equipment and trained personnel
- Integration into fabrication workflow avoids double-handling
- Batch processing of similar parts optimizes labor efficiency
- Avoids galvanizing process delays and potential rejection costs
Prevention Strategy 2: Alternative Cutting Methods
Non-thermal cutting processes eliminate heat-affected zones entirely, preventing the root cause of edge coating defects.
Mechanical Cutting Technologies
Shearing: Large hydraulic or mechanical shears cut steel through applied force without thermal input. Suitable for:
- Plate and sheet materials up to approximately 1 inch (25 mm) thickness
- Materials without critical edge straightness or perpendicularity requirements
- Low to medium-strength steels (shearing high-strength steels may work-harden edges)
Sawing: Rotary, band, or reciprocating saws cut through abrasive action:
- Band saws: Optimal for structural shapes, bar stock, and tube cutting
- Cold saws: Precision cutting with excellent edge quality for smaller components
- Abrasive saws: High-speed cutting for harder materials
Sawing produces minimal edge hardening (typically <50 HV increase versus 150+ HV for thermal methods) and no microstructural phase transformation.
Waterjet cutting: High-pressure water (40,000 to 90,000 psi) mixed with abrasive particles cuts through erosive action. Benefits include:
- Zero heat input—no HAZ formation
- Cuts any material thickness and hardness
- Excellent dimensional precision
- Relatively slow cutting speeds and higher operating costs
Nibbling and punching: Mechanical force applied through hardened tools. Limited to thinner materials (typically <1/4 inch or 6 mm) and applications where edge distortion is acceptable.
Cutting Method Selection Framework
Specification guidance: Engineers can influence cutting method selection by:
- Specifying edge quality requirements incompatible with thermal cutting
- Noting "no thermal cutting" restrictions for critical edges
- Requiring edge grinding as a deliverable if thermal cutting is employed
- Providing edge quality acceptance criteria during design
Prevention Strategy 3: Steel Chemistry Optimization
When thermally cut edges cannot be avoided through alternative methods or post-cutting grinding, steel chemistry selection minimizes coating thickness variations and associated edge defect risks.
Specify low-reactive steel grades: Request steel mill certifications confirming:
- Silicon content <0.03% or within the controlled range of 0.15% to 0.22%
- Phosphorus content <0.04%
- Silicon equivalent <0.04% or 0.15% to 0.22%
Advantages:
- Thinner coatings (2.0 to 3.5 mils or 51 to 89 μm) throughout the part
- Reduced coating stress during thermal contraction
- Lower propensity for edge flaking even when edge coating adhesion is compromised
Limitations:
- Steel mill minimum order quantities may preclude custom chemistry for small projects
- Premium pricing for chemistry-controlled grades
- Risk of not achieving ASTM A123 minimum thickness requirements on very thin sections
Prevention Strategy 4: Proactive Communication and Process Control
The most effective prevention combines technical solutions with systematic communication among stakeholders.
Pre-Fabrication Coordination
Steel supplier engagement:
- Provide mill test reports before fabrication begins
- Request alternative heats if silicon/phosphorus levels indicate reactive steel
- Establish long-term supply agreements for chemistry-controlled steel grades
Fabricator involvement:
- Share galvanizing technical requirements during bid evaluation
- Discuss cutting method options and their galvanizing implications
- Review fabrication drawings to identify high-risk thermally cut edges (reactive steel, thick plates, visible locations)
- Establish acceptance criteria for edge quality
Galvanizer consultation:
- Submit representative samples for trial galvanizing when unfamiliar steel grades or cutting methods are employed
- Review fabrication methods and material specifications before production commitment
- Discuss potential process modifications (bath temperature, immersion time, withdrawal techniques) that may mitigate edge coating issues
In-Process Quality Control
Fabrication inspection:
- Verify edge condition after thermal cutting—excessive oxidation, slag residue, or surface cracking indicates cutting parameters requiring adjustment
- Measure HAZ hardness for critical applications using portable hardness testers
- Perform grinding where specified or where edge quality appears questionable
Pre-galvanizing inspection:
- Galvanizers should examine thermally cut edges during receiving inspection
- Identify systematic edge quality issues and communicate with fabricator before processing
- Consider rejection of articles with excessively poor edge quality that will predictably result in coating defects
Post-galvanizing inspection:
- Examine thermally cut edges for coating adhesion, thickness, and flaking
- Document edge defects with photographs showing location, extent, and severity
- Assess whether edge conditions meet applicable specifications (ASTM A123 allows more latitude for edges than for general surfaces)
Repair of Edge Coating Defects
When edge flaking occurs despite preventive measures, ASTM A780 provides repair procedures:
Repair material selection: Organic zinc-rich coatings meeting ASTM A780 requirements provide sacrificial protection comparable to galvanized coating.
Surface preparation: Remove loose flaked coating through wire brushing, grinding, or light abrasive blasting to expose sound substrate. Prepare per SSPC-SP2 (hand tool) or SSPC-SP11 (power tool) standards.
Application: Apply repair material per manufacturer instructions, typically achieving 2 to 4 mils (51 to 102 μm) dry film thickness.
Performance expectations: Properly executed repairs provide corrosion protection approaching that of the original galvanized coating, though appearance differences remain visible.
Economic reality: Field repair costs substantially exceed preventive grinding or alternative cutting method costs, reinforcing the value of upstream process control.
Integrated Quality Management Approach
Eliminating thermally cut edge coating defects requires coordinated action across the fabrication-galvanizing supply chain:
Design phase: Engineers specify edge quality requirements, cutting method restrictions, or mandatory edge preparation.
Procurement phase: Purchasing agents communicate galvanizing requirements to fabricators and verify capability before contract award.
Fabrication phase: Fabricators employ appropriate cutting methods, perform specified edge preparation, and implement quality control for edge condition.
Galvanizing phase: Galvanizers inspect received materials, communicate edge quality concerns, and optimize process parameters for edge coating formation.
Inspection phase: Final inspectors apply appropriate acceptance criteria recognizing that edge coating characteristics may differ from general surface properties while still meeting specification requirements.
This systematic approach transforms thermally cut edge coating quality from an unpredictable defect source to a controlled process parameter, delivering consistent galvanizing performance regardless of fabrication cutting methods. Learn more about this topic at the original AGA resource article at this link.
