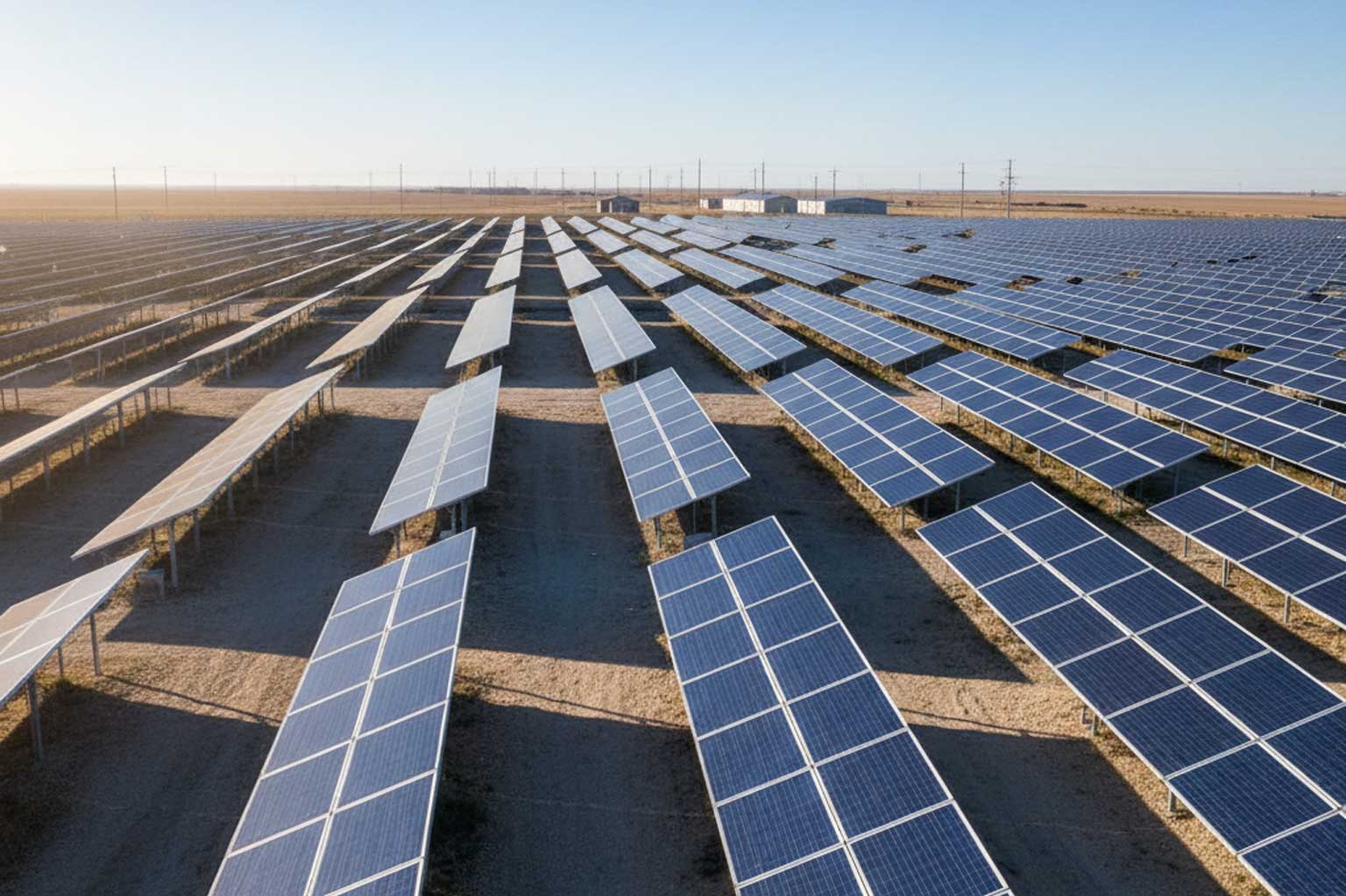

The rapid expansion of utility-scale photovoltaic installations demands support structures capable of withstanding decades of environmental exposure while minimizing maintenance intervention. With typical design lives spanning 25-50 years, solar farm infrastructure requires corrosion protection systems that balance initial capital investment against long-term performance reliability. While hot-dip galvanizing (HDG) demonstrates clear advantages for above-ground solar components, engineers frequently question whether coating protection remains cost-effective for buried foundation posts—particularly in arid or rural locations with presumably benign soil conditions.
Above-Ground Performance: Established HDG Advantage
Hot-dip galvanized steel's immunity to ultraviolet radiation makes it ideal for solar applications where components experience continuous sun exposure. Unlike organic coatings that degrade under UV bombardment, the metallurgically-bonded zinc coating maintains integrity indefinitely under solar radiation.
Atmospheric service life for galvanized solar components:
- Rural/suburban environments: 72-100+ years
- Industrial environments: 50-75 years
- Moderate marine environments: 40-60 years
These performance ranges substantially exceed typical 25-50 year solar array design lives, providing significant safety margins for frames, mounting hardware, racking systems, and exposed structural steel. The maintenance-free nature of galvanized coatings eliminates lifecycle painting costs while ensuring structural integrity throughout the facility's operational period.
Soil Corrosion: Variable and Difficult to Predict
Below-ground corrosion behavior differs fundamentally from atmospheric exposure due to continuous moisture contact, varying soil chemistry, and lack of protective patina formation comparable to atmospheric zinc carbonate layers. Three primary factors govern corrosion rates in buried environments:
1. Soil Moisture Content
Moisture acts as the electrolyte enabling electrochemical corrosion. Soil types vary dramatically in water retention characteristics:
Favorable conditions (low corrosivity):
- Sandy, coarse-textured soils
- Well-drained soils with low clay content
- Arid climate soils with minimal precipitation
Aggressive conditions (high corrosivity):
- Dense clay soils with high moisture retention
- Poorly drained soils with water table proximity
- Swampy or wetland soils with continuous saturation
2. Soil pH
Zinc exhibits amphoteric behavior, corroding in both acidic and highly alkaline conditions, with optimal stability in the pH 6-12.5 range.
Corrosion acceleration occurs when:
- pH < 6.0 (acidic soils from organic decomposition or acid rain infiltration)
- pH > 12.5 (alkaline soils from industrial contamination or certain geological formations)
- pH 6-12: Generally favorable for zinc, with minimal corrosion
3. Chloride Content
Dissolved chlorides disrupt passive film formation and accelerate localized corrosion. Sources include:
- Coastal soil salt infiltration
- Roadside deicing salt runoff
- Industrial contamination
- Certain mineral deposits
Published Soil Performance Data
The American Galvanizers Association maintains field exposure data documenting hot-dip galvanized steel performance across diverse soil conditions. Analysis of real-world installations demonstrates:
Typical galvanized steel service life in soil: 75+ years in most North American soil conditions, easily satisfying solar infrastructure design requirements.
Best-case scenarios (sandy, well-drained, near-neutral pH): 100+ years Worst-case scenarios (acidic swamp soils, high chlorides): 25-50 years
This performance spectrum contrasts sharply with bare steel behavior, where soil-side corrosion proceeds at significantly accelerated rates.
The False Economy of Bare Steel in "Favorable" Soils
Cost-conscious solar developers occasionally consider eliminating hot-dip galvanizing for buried posts when projects are sited in arid or rural regions with presumably low soil corrosivity. This approach introduces multiple technical and economic risks:
Soil Variability and Prediction Uncertainty
North America contains over 200 classified soil types with highly variable corrosion characteristics. Even within a single solar farm site, soil conditions vary spatially due to:
- Historical land use and contamination
- Localized drainage patterns
- Buried debris or fill material
- Microbiological activity variations
Corrosion models extrapolated from limited soil testing cannot predict long-term performance with the certainty required for 25-50 year design lives. Field studies by Corrpro Companies (1991) demonstrate that actual in-service corrosion rates frequently deviate substantially from laboratory predictions due to factors inadequately captured in accelerated testing.
Steel Thickness Does Not Control Corrosion Rate
Specifying heavier gauge bare steel provides limited corrosion mitigation. While increased wall thickness extends time-to-perforation, corrosion rate (metal loss per year) remains unchanged. A thicker post fails later but corrodes at the same rate as thinner material in identical soil conditions.
Conversely, hot-dip galvanizing fundamentally alters corrosion kinetics through barrier protection and sacrificial action, reducing corrosion rates by 3-6 times compared to bare steel in identical environments.
Atmospheric vs. Soil Exposure Mismatch
Above-ground portions of buried posts experience atmospheric exposure, while below-ground sections experience soil-side corrosion. The transition zone—where posts penetrate the soil surface—represents the most aggressive microenvironment due to:
- Moisture concentration from runoff
- Oxygen concentration cell formation
- Soil-atmosphere interface chemistry
- Cyclic wetting and drying
Bare steel posts exhibit accelerated attack at grade level, often failing at the transition zone before substantial below-ground corrosion occurs. Hot-dip galvanizing provides uniform protection across all exposure zones.
Airborne Contamination in "Clean" Environments
Rural and desert solar installations may be distant from industrial centers, suggesting benign atmospheric conditions. However, buried steel remains vulnerable to:
- Downwind deposition from distant pollution sources
- Agricultural chemical drift
- Wildfire ash and combustion products
- Dust containing corrosive salts or industrial particles
Solar facilities located downwind from chemical plants, refineries, or agricultural operations experience atmospheric contamination affecting above-ground components and potentially altering soil chemistry through deposition and infiltration.
Quantified Advantages of Hot-Dip Galvanizing for Solar Posts
Beyond general corrosion protection, galvanized solar support structures deliver specific performance benefits:
Superior Pitting Resistance
Research by Zhang (1996) demonstrates that while area-averaged corrosion rates of galvanized steel are 3-6 times lower than bare steel in buried environments, pitting corrosion rates show even more dramatic improvement: galvanized steel experiences pitting 4-20 times slower than bare steel in identical soil conditions.
This distinction is critical because structural failure often results from localized pitting penetration rather than uniform metal loss. A post may retain adequate cross-sectional area for load-bearing yet fail due to a single perforation compromising structural integrity.
Enhanced Abrasion Resistance
Desert solar installations experience continuous wind-blown particle bombardment. Hot-dip galvanizing provides superior abrasion resistance through:
Increased effective thickness: Zinc coating adds 3.9+ mils of protective material Superior surface hardness: Three of the four zinc-iron alloy layers (zeta, delta, and gamma phases) exhibit greater hardness than the underlying steel substrate
This metallurgical characteristic makes galvanized posts exceptionally resistant to handling damage during shipping, installation, and post-driving operations. The coating withstands pile-driving impact and soil friction during burial without significant damage.
Simplified Inspection and Quality Verification
Visual distinction between zinc coating and red rust formation enables rapid inspection:
- Gray zinc patina indicates intact protection
- Red rust signals coating penetration and steel exposure
- Clear differentiation eliminates uncertainty in condition assessment
For bare steel posts, subsurface corrosion remains invisible until structural compromise occurs, eliminating early intervention opportunities.
Extreme Temperature Performance
Hot-dip galvanized coatings maintain structural integrity and corrosion protection across the full temperature range encountered in solar applications:
Functional temperature range: -40°F to 392°F (-40°C to 200°C)
This thermal stability accommodates:
- Arctic installations in northern latitudes
- Desert environments with extreme diurnal temperature swings
- Thermal expansion/contraction cycling without coating delamination
Lifecycle and Sustainability Considerations
Asset Reusability
Solar technology evolves continuously, with panel efficiency improvements and system design advancements potentially requiring infrastructure upgrades within 25-year timeframes. When technology replacement occurs:
Galvanized posts removed from service after 25-30 years typically retain:
- 60-80% of original coating thickness (depending on soil corrosivity)
- Full structural capacity with minimal corrosion loss
- Suitability for reinstallation or relocation to less corrosive sites
Bare steel posts exhibit:
- Significant section loss from general corrosion
- Reduced structural capacity requiring verification
- Localized pitting reducing reuse potential
Well-maintained galvanized posts can be cleaned, inspected, and reused for subsequent solar generation installations—or re-galvanized if coating consumption warrants. This lifecycle extension reduces embodied carbon and material costs for future projects.
Material Recyclability
Both galvanized and bare steel maintain full recyclability at end-of-life. However, galvanized posts reaching end-of-service with intact coatings deliver:
- Higher scrap value due to zinc content recovery
- Reduced environmental remediation needs (no corrosion product cleanup)
- Cleaner recycling stream with less iron oxide contamination
Economic Analysis Framework
Evaluating coating economics requires lifecycle cost assessment rather than initial capital comparison:
Initial cost differential: Hot-dip galvanizing typically adds 40-80% to post material cost (varying by market conditions, post size, and coating thickness)
Lifecycle benefits:
- Zero maintenance cost for 25-50 year design life
- Eliminated inspection costs for buried components
- No mid-life coating repair or replacement
- Reduced structural redundancy requirements due to predictable performance
- Asset reusability for technology upgrades
- Avoided early failure costs and production interruption
For utility-scale solar facilities with thousands of support posts, the aggregate cost of premature structural failure—including equipment downtime, panel removal for access, post replacement labor, and lost electricity production—far exceeds initial galvanizing investment.
Specification Recommendations
For solar support structures with 25-50 year design lives:
Recommended approach: Specify hot-dip galvanizing per ASTM A123/A123M for all buried posts regardless of apparent soil favorability.
Site-specific considerations warranting galvanizing:
- Any coastal location (within 10 miles of saltwater)
- Sites with confirmed soil chloride content >100 ppm
- Locations with seasonal water table elevation above post base
- Agricultural areas with irrigation or chemical application
- Any site lacking comprehensive geotechnical investigation documenting favorable soil chemistry
- Projects requiring maximum asset reusability
- Installations in extreme climates (desert or arctic)
Alternative approaches requiring rigorous justification: Bare steel may be considered ONLY when:
- Comprehensive soil survey confirms uniformly favorable conditions (pH 6-12, low chlorides, well-drained sandy soils)
- Design life does not exceed 25 years
- Posts are oversized with corrosion allowance factored into structural calculations
- Owner accepts risk of localized premature failures
- Lifecycle cost analysis demonstrates bare steel economic advantage accounting for all failure scenarios
Proven Performance: Case Studies
Multiple utility-scale solar installations demonstrate hot-dip galvanizing's field performance:
Nevada Solar One (Solargenix Energy): 64-megawatt concentrating solar power facility utilizing extensive hot-dip galvanized structural steel for tracking systems and support structures in extreme desert conditions.
Johnson & Johnson Solar Roof Panel: Large-scale rooftop photovoltaic installation with galvanized mounting systems providing maintenance-free performance in industrial atmospheric exposure.
South San Joaquin Irrigation District Solar Farm: Agricultural setting demonstrating galvanized post performance in irrigation-influenced soil conditions with periodic moisture exposure.
While superficial analysis might suggest bare steel suffices for solar posts buried in "favorable" soil conditions, comprehensive technical evaluation reveals hot-dip galvanizing as the superior specification for long-term reliability. The inherent variability of soil corrosion, the catastrophic consequences of localized pitting, the inability to predict performance from limited testing, and the atmospheric exposure of transition zones collectively argue for proven protection systems. Hot-dip galvanized posts deliver predictable 75+ year soil-side performance while simultaneously protecting above-ground and transition zone exposure—eliminating the single-point vulnerabilities that compromise bare steel installations. For solar infrastructure representing multi-decade capital investments supporting critical renewable energy generation, the marginal incremental cost of hot-dip galvanizing provides essential insurance against premature structural failure while enabling asset reusability as photovoltaic technology continues to evolve.
Learn more at the original AGA resource on HDG steel for buried solar support structures.
