The Zinc-Concrete Interface Challenge
Hot-dip galvanized reinforcing steel provides exceptional corrosion protection in concrete structures through both barrier protection and cathodic mechanisms. However, the initial interaction between freshly galvanized zinc surfaces and wet concrete creates a chemical reaction that, if uncontrolled, can compromise concrete quality and rebar-concrete bond strength. Understanding the reaction chemistry, potential consequences, and effective mitigation through chromate passivation treatment enables proper specification and application of galvanized reinforcement in concrete construction.
Reinforced Concrete System Fundamentals
Reinforced concrete combines two materials with complementary structural properties:
Concrete's Role
Portland cement concrete provides exceptional compressive strength, weather resistance, and durability. However, plain concrete exhibits limited tensile strength and brittle failure characteristics under tension or bending loads.
Reinforcement's Role
Steel reinforcing bars embedded within concrete carry tensile forces, resist bending moments, and control crack propagation. The steel's high tensile strength compensates for concrete's tensile weakness, creating a composite material system exploiting each component's advantages.
Bond Strength Criticality
The reinforced concrete system's structural performance depends fundamentally on bond strength between steel and concrete. This interfacial bond enables stress transfer from concrete to steel, allowing the composite to function as a unified structural element rather than two independent materials.
Bond Mechanisms:
Adhesion: Chemical bonding and mechanical interlocking between cement paste and steel surface
Friction: Resistance to sliding at the steel-concrete interface
Mechanical Interlock: Concrete bearing against rebar deformations (ribs) preventing longitudinal displacement
Any condition degrading interfacial bond—including voids, contamination, or weak interface zones—compromises structural integrity by reducing stress transfer efficiency.
Concrete Chemistry and Alkalinity
Understanding the zinc-concrete reaction requires knowledge of concrete's chemical environment:
Cement Hydration Reactions
When portland cement mixes with water, complex hydration reactions produce calcium silicate hydrates (C-S-H gel) providing strength and various byproducts including calcium hydroxide:
Simplified Hydration: 2(3CaO·SiO₂) + 6H₂O → 3CaO·2SiO₂·3H₂O + 3Ca(OH)₂
(Tricalcium silicate + Water → Calcium silicate hydrate + Calcium hydroxide)
Calcium Hydroxide Concentration
Calcium hydroxide (Ca(OH)₂), also termed portlandite, crystallizes throughout the cement paste matrix, establishing a saturated alkaline pore solution. Fresh concrete contains substantial dissolved calcium hydroxide concentrations, creating pH values typically ranging from 12.5 to 13.5.
This extreme alkalinity serves beneficial functions:
- Passivates embedded steel, preventing corrosion
- Contributes to cement strength development
- Provides alkaline reserve buffering capacity
However, the same high pH and calcium hydroxide concentration that passivates black steel initiates problematic reactions with zinc-coated surfaces.
The Zinc-Concrete Reaction
When galvanized reinforcing steel contacts fresh concrete, the zinc coating undergoes chemical reaction with calcium hydroxide in the alkaline pore solution:
Reaction Chemistry
Primary Reaction: Zn + Ca(OH)₂ + 2H₂O → Ca[Zn(OH)₃]₂·2H₂O + H₂↑
(Zinc + Calcium hydroxide + Water → Calcium hydroxyzincate + Hydrogen gas)
The reaction produces calcium hydroxyzincate—a zinc-containing compound that precipitates at the zinc-concrete interface—while liberating hydrogen gas.
Reaction Kinetics and Duration
The zinc-concrete reaction proceeds most vigorously during the first hours after concrete placement when:
Maximum Alkalinity: Fresh concrete exhibits peak pH and dissolved calcium hydroxide concentration
Maximum Moisture: Free water facilitates ionic transport and chemical reactions
Accessible Zinc Surface: The reactive pure zinc eta layer at the galvanized coating surface remains exposed
As concrete sets and hardens, the reaction progressively slows due to:
- Declining free moisture as cement hydration consumes water
- Reduced ionic mobility in stiffening concrete
- Calcium hydroxyzincate layer formation partially passivating the zinc surface
- pH reduction as calcium hydroxide consumption occurs
Early research suggested the reaction continued for many hours or even days. However, more recent studies demonstrate that vigorous hydrogen evolution occurs primarily during the first 24-48 hours, with reaction rates declining substantially as concrete transitions from plastic to hardened state.
Concerns from Uncontrolled Zinc-Concrete Reactions
The chemical reaction between galvanized steel and fresh concrete creates several potential issues:
Hydrogen Evolution and Concrete Porosity
The liberated hydrogen gas must escape from the setting concrete. Under ideal conditions with proper concrete placement and consolidation, hydrogen bubbles migrate upward through plastic concrete, escaping at the surface without issue.
However, several conditions can trap hydrogen at the steel-concrete interface:
Dense Concrete: Low water-cement ratio concrete with minimal permeability may impede hydrogen gas migration
Rebar Orientation: Horizontal rebar, particularly near forms or at considerable depth, provide locations where gas can accumulate on the underside of bars
Rapid Setting: Fast-setting concrete formulations or accelerated curing conditions may solidify before hydrogen fully escapes
Poor Consolidation: Inadequate vibration or consolidation leaves voids where hydrogen can accumulate
Trapped hydrogen creates voids and porous zones at the steel-concrete interface. These defects compromise:
Bond Strength: Voids reduce contact area between steel and concrete, decreasing achievable bond strength through loss of adhesion and mechanical interlock
Structural Performance: Reduced bond strength affects stress transfer efficiency, potentially compromising member capacity
Durability: Interface voids provide pathways for moisture and chloride ingress if they extend to external surfaces, potentially accelerating corrosion even with galvanized protection
Calcium Hydroxyzincate Formation
The calcium hydroxyzincate reaction product precipitates at the zinc-concrete interface. While not inherently harmful in moderate amounts, excessive calcium hydroxyzincate formation can:
Alter Interface Chemistry: Modify the chemical environment at the bond interface
Create Weak Layers: In extreme cases, thick calcium hydroxyzincate deposits may form weak interface zones
Surface Modification: Change the zinc surface characteristics affecting bond development
The practical significance of calcium hydroxyzincate in normal applications remains subject to debate. Many successful galvanized rebar installations show calcium hydroxyzincate presence without performance issues, suggesting moderate reaction product accumulation is tolerable.
Historical Context and Evolving Understanding
Early investigations of galvanized rebar in concrete, conducted in the 1960s-1970s, identified hydrogen evolution and bond strength concerns, leading to recommendations for chromate treatment as standard practice. These studies informed ASTM A767 specification requirements.
More recent research employing modern analytical techniques and long-term field performance evaluation suggests the practical impact may be less severe than initially feared:
Limited Reaction Duration: Hydrogen evolution occurs primarily during early concrete hardening, limiting total gas volume
Field Performance Success: Decades of successful galvanized rebar performance in actual structures, including many without chromate treatment, demonstrate practical adequacy
Bond Strength Adequacy: Properly placed galvanized rebar, even without chromate treatment, typically achieves bond strengths meeting structural requirements
These findings suggest chromate treatment represents conservative practice providing margin of safety rather than absolute necessity for all applications. However, chromate treatment remains standard specification for galvanized rebar to ensure optimal performance across all concrete mixtures, placement conditions, and structural requirements.
Chromate Passivation Mechanism
Chromate treatment effectively prevents or dramatically reduces the zinc-concrete reaction through formation of a stable passivating layer:
Chromate Chemistry on Zinc
When freshly galvanized steel is immersed in or sprayed with dilute chromate solutions, chromate ions react with the zinc surface, forming zinc chromate and related chromium-zinc compounds:
Simplified Reaction: Zn + CrO₄²⁻ → ZnCrO₄ (Zinc chromate formation)
The resulting chromate conversion coating—typically only a few micrometers thick—creates a stable barrier layer between zinc and the concrete environment.
Passivation Effects
The chromate conversion coating prevents zinc-concrete reaction through multiple mechanisms:
Barrier Function: The chromate layer physically separates reactive zinc metal from alkaline pore solution, preventing direct contact between zinc and calcium hydroxide
Electrochemical Passivation: Chromate compounds modify the zinc surface electrochemical properties, dramatically reducing reactivity in alkaline environments
Self-Healing Properties: Hexavalent chromium species in the coating demonstrate some self-healing capability—if the coating experiences minor damage, dissolved chromate can migrate to exposed areas and reform protective films
pH Resistance: Chromate conversion coatings maintain stability in the high-pH concrete environment that would otherwise react vigorously with bare zinc
Chromate Treatment Application Methods
Several approaches deliver chromate passivation to galvanized reinforcing steel:
Post-Galvanizing Quench Bath
The most common application method involves immersing hot galvanized rebar immediately after withdrawal from the zinc bath into a chromate quench solution:
Process Sequence:
- Rebar exits the molten zinc bath at approximately 840°F
- Excess zinc drains during initial cooling
- While still hot (typically 400-600°F), rebar is immersed in or sprayed with chromate solution
- The hot metal accelerates chromate reaction, forming conversion coating
- Water evaporation and continued cooling complete the process
Advantages:
- Integrated into galvanizing production flow
- Uniform coating application across entire rebar length
- Efficient use of residual heat accelerating chromate reaction
- Quality control under galvanizer supervision
Chromate Solution Specifications:
ASTM A767, "Standard Specification for Zinc-Coated (Galvanized) Steel Bars for Concrete Reinforcement," establishes chromate treatment requirements:
Chromate Concentration: Solutions containing 100-200 ppm chromate ions (equivalent to 50-100 ppm hexavalent chromium) provide adequate passivation
Solution Maintenance: Bath chemistry requires monitoring and adjustment to maintain effective chromate concentration as rebar processing consumes chromate through conversion coating formation
Ambient Temperature Application
Alternative application methods employ chromate solutions at ambient temperature:
Spray Application: Chromate solutions sprayed on cooled galvanized rebar after galvanizing completion
Dip Tank: Room-temperature immersion in chromate baths
These methods offer flexibility for field application or supplemental treatment but require longer contact time to achieve equivalent passivation compared to hot quenching methods.
Chromate-Containing Cements
Some portland cement formulations naturally contain chromium as a minor constituent from raw material sources:
Natural Chromium Content: Certain clinker sources yield cements with 30-100+ ppm chromium
Passivation Effect: Sufficient chromium content in cement provides similar passivation to external chromate treatment
Limitations:
- Chromium content varies by cement source and cannot be assumed
- Requires verification through cement chemical analysis
- May not be available in all geographic markets
When using chromate-containing cements, external rebar chromate treatment may be unnecessary, though verification of adequate chromium levels is advisable.
Chromate Admixtures for Concrete
Chromate or chromium compounds can be added directly to concrete mixtures:
Admixture Addition: Water-soluble chromate salts dosed into concrete mixing water at rates providing 50-100 ppm chromium in the final concrete
Distribution: Chromate disperses throughout concrete, passivating galvanized rebar surfaces during initial contact
Advantages:
- Eliminates need for rebar pretreatment
- Ensures chromate presence throughout rebar-concrete interface
- Applicable to any galvanized rebar source
Limitations:
- Requires careful dosing and mixing to ensure uniform distribution
- May affect concrete setting time or strength development
- Regulatory considerations regarding chromium in construction materials
- Not commonly specified in standard practice
Hexavalent Chromium Regulatory Considerations
Chromate passivation treatments traditionally employ hexavalent chromium (chromium VI, CrVI) compounds—the most effective form for zinc passivation. However, hexavalent chromium faces increasing regulatory scrutiny due to health and environmental concerns:
Health and Safety Issues
Hexavalent chromium demonstrates:
- Respiratory irritation and sensitization
- Carcinogenicity through inhalation exposure (IARC Group 1 carcinogen)
- Skin sensitization and irritation potential
- Environmental toxicity requiring wastewater treatment
These properties prompt strict occupational exposure limits and environmental discharge regulations.
Regulatory Trends
Various jurisdictions have implemented or proposed restrictions on hexavalent chromium use:
Occupational Standards: OSHA and other agencies maintain stringent workplace exposure limits requiring engineering controls and monitoring
Environmental Regulations: Wastewater discharge permits limit chromium concentrations, necessitating treatment systems
Product Restrictions: Some regions restrict or prohibit hexavalent chromium in consumer products or specific applications
Alternative Chemistries
The regulatory environment has driven development of chromate alternatives:
Trivalent Chromium Passivation: Chromium III-based treatments offer reduced toxicity while maintaining some passivation effectiveness, though generally inferior to hexavalent chromium performance
Chromium-Free Passivation: Non-chromium conversion coatings based on titanium, zirconium, or proprietary chemistries provide passivation without chromium
Performance Tradeoffs: Alternative chemistries typically demonstrate reduced passivation effectiveness compared to hexavalent chromate, requiring evaluation of suitability for concrete applications
For galvanized rebar applications where chromate treatment remains standard practice, facilities maintain appropriate environmental controls and worker protection measures to safely employ hexavalent chromium passivation while complying with regulations.
Specification Requirements
ASTM A767 addresses chromate treatment for galvanized reinforcing steel:
Optional Chromate Treatment
The specification treats chromate passivation as optional rather than mandatory:
Standard Practice: Chromate treatment is common industry practice and typically included unless specifically prohibited
Specification Clarity: Project specifications should explicitly state whether chromate treatment is required, optional, or prohibited to prevent ambiguity
Chromate-Free Requirements
Some projects prohibit chromate treatment due to:
- Environmental policies restricting hexavalent chromium
- Compatibility concerns with specific concrete admixtures
- Jurisdictional regulations limiting chromium in construction materials
When chromate treatment is prohibited, specifications should acknowledge increased hydrogen evolution potential and may require:
- Special attention to concrete placement and consolidation
- Use of chromate-containing cements if available
- Chromate concrete admixtures as alternative passivation
- Enhanced quality control during construction
Practical Implications for Construction
Understanding zinc-concrete reactions informs construction best practices:

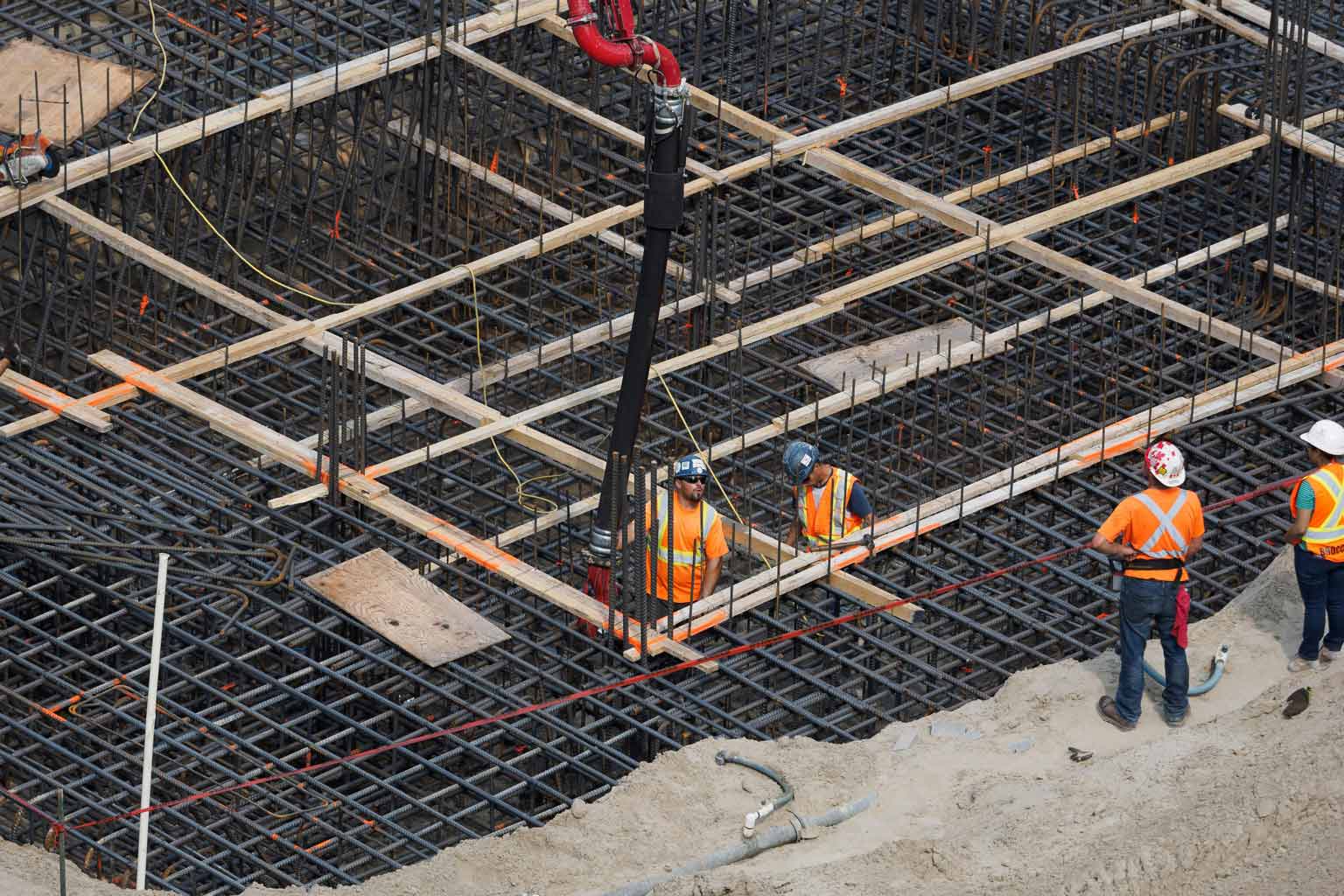

Concrete Placement Procedures
Thorough Consolidation: Vibration and consolidation become particularly important for galvanized rebar, ensuring concrete fully surrounds bars and hydrogen can escape
Placement Rate: Avoid excessively rapid concrete placement that might trap gas before escape occurs
Ambient Conditions: Hot weather accelerates concrete setting, potentially reducing time for hydrogen escape—increased consolidation attention warranted
Rebar Configuration: Dense rebar arrangements or congested reinforcement may impede concrete flow and gas escape, requiring careful placement procedures
Concrete Mix Design Considerations
Workability: Adequate concrete workability facilitates complete consolidation around rebar
Setting Time: Moderate setting times allow hydrogen evolution and escape before concrete hardens
Water-Cement Ratio: Balance between adequate workability for consolidation and minimizing excess water that could slow setting
Quality Assurance
Visual Inspection: After formwork removal, inspect concrete surfaces for unusual voiding or honeycombing adjacent to galvanized rebar locations
Bond Testing: For critical applications, consider pull-out or development length testing verifying adequate bond strength
Long-Term Monitoring: Document rebar performance in initial projects to build confidence and experience with galvanized reinforcement
Field Performance Experience
Decades of galvanized rebar installations provide practical performance data:
Successful Installations
Thousands of structures worldwide employ galvanized reinforcement successfully:
- Bridge decks in chloride-exposed environments
- Parking structures with deicing salt exposure
- Marine structures in coastal zones
- Industrial facilities with aggressive atmospheres
Many of these installations—particularly older projects—were constructed before chromate treatment became standard practice, yet demonstrate excellent performance.
Bond Strength Adequacy
Field studies and laboratory testing consistently show galvanized rebar, both with and without chromate treatment, achieves bond strengths meeting structural design requirements. While small bond strength reductions compared to black rebar sometimes occur, the differences rarely affect structural adequacy.
Hydrogen Evolution Limited Impact
Long-term field performance suggests hydrogen evolution during concrete curing has minimal practical impact on most structures when proper construction practices are followed. The limited duration of vigorous hydrogen generation (24-48 hours) and concrete's ability to accommodate and release gas through its pore structure prevent problematic voiding in well-constructed concrete.
Best Practices and Recommendations
Optimizing galvanized rebar performance in concrete involves:
Specification Development
Chromate Treatment Clarity: Explicitly specify whether chromate treatment is required, optional, or prohibited
Alternative Passivation: If chromate is prohibited, specify alternative approaches (chromate cement, concrete admixtures, or acceptance of untreated galvanizing with appropriate construction practices)
Performance Requirements: Establish bond strength requirements verified through testing when necessary
Material Procurement
ASTM A767 Compliance: Specify galvanized rebar meeting ASTM A767 requirements
Chromate Verification: When chromate treatment is required, confirm galvanizer capability and request process documentation
Mill Certifications: Obtain and review material certifications verifying coating thickness, chemistry, and treatment
Construction Phase
Contractor Education: Ensure concrete placement crews understand the importance of thorough consolidation for galvanized rebar
Quality Control: Implement inspection procedures verifying proper concrete placement and consolidation
Documentation: Maintain records of concrete mixture designs, placement conditions, and any observed issues
Ongoing Research Participation
The galvanizing and concrete industries continue investigating optimal practices through:
- Long-term field monitoring of galvanized rebar performance
- Laboratory studies of hydrogen evolution kinetics
- Bond strength testing across varying conditions
- Alternative passivation chemistry development
Contributing data from projects to industry research efforts advances collective understanding.
The chemical reaction between galvanized zinc coatings and fresh concrete's alkaline calcium hydroxide environment produces calcium hydroxyzincate and hydrogen gas, potentially creating interfacial voids and affecting bond strength if uncontrolled. Chromate passivation treatment applied through post-galvanizing quench baths containing 100-200 ppm chromate (50-100 ppm hexavalent chromium) effectively prevents this reaction by forming stable zinc chromate conversion coatings that passivate the zinc surface and block contact with concrete alkalinity. While chromate treatment remains standard industry practice specified in ASTM A767 and recommended for optimal performance, evolving research demonstrates the zinc-concrete reaction's practical impact may be less severe than initially understood, with hydrogen evolution occurring primarily during the first 24-48 hours and many successful installations performing well without chromate treatment. Alternative passivation delivery methods including chromate-containing cements and chromate concrete admixtures provide options when post-galvanizing treatment is impractical, while increasing hexavalent chromium regulations are driving development of trivalent chromium and chromium-free alternatives with somewhat reduced effectiveness. Regardless of passivation approach, proper concrete placement with thorough consolidation, appropriate mix design, and quality construction practices ensure successful galvanized rebar performance in reinforced concrete structures. The combination of galvanized corrosion protection and prudent chromate passivation delivers reinforced concrete systems achieving extended service life exceeding 100 years in aggressive chloride environments, validating galvanized reinforcement as a proven solution for critical infrastructure applications. See the original AGA resource on this topic for more information.
