The Inevitability of Coating Damage
Hot-dip galvanized coatings provide exceptional abrasion resistance and mechanical durability compared to organic coating systems. The metallurgically bonded zinc and zinc-iron alloy layers resist damage from normal handling, transportation, and installation activities that would compromise paint films. However, no coating system proves completely immune to damage under extreme conditions. Rough handling during fabrication, aggressive installation techniques, field welding operations after galvanizing, and occasional in-service impact or abrasion can compromise coating integrity, exposing underlying steel substrate.
Uncoated steel areas, regardless of size, require timely repair to maintain corrosion protection continuity and preserve the galvanized system's protective capacity. Understanding available repair materials, their application characteristics, performance attributes, and appearance compatibility with the base galvanized coating enables informed repair material selection balancing functional requirements with aesthetic considerations.
Sources of Coating Damage
Several mechanisms produce coating damage requiring repair:
Handling and Transportation
Impact Damage: Articles dropped or struck during lifting, transport, or storage operations may experience coating cracking, spalling, or complete loss at impact points
Abrasion: Dragging articles across rough surfaces or contact with other steel during transportation can abrade coating away through mechanical wear
Improper Rigging: Chain or cable rigging concentrated at small contact areas generates high bearing stresses potentially exceeding coating fracture strength
Installation Activities
Construction Equipment Contact: Cranes, loaders, and other equipment operating near installed galvanized members may inadvertently strike components, damaging coatings
Bolted Connections: Tightening high-strength bolts can locally crush galvanized coating at bearing surfaces
Threading and Modifications: Field-cutting threads or drilling holes exposes fresh steel requiring protection
Field Welding After Galvanizing
Field welding represents a particularly common coating damage source:
Weld Zone Damage: Welding heat burns away galvanized coating in the immediate weld area and heat-affected zones
Arc Strikes: Accidental arc initiation on galvanized surfaces removes coating at arc contact points
Spatter Damage: Welding spatter adhering to galvanized surfaces may be removed during cleanup, taking coating with it
In-Service Damage
Mechanical Impact: Service loads, dropped objects, or vehicular contact during structure use
Maintenance Activities: Coating damage during painting, cleaning, or repair of adjacent building systems
Vandalism: Intentional coating damage through scratching, gouging, or other destructive actions
ASTM A780: Standard Practice for Coating Repair
ASTM A780, "Standard Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings," establishes industry-consensus guidance for repairing coating damage. The standard recognizes three primary repair material categories, each with distinct application methods, performance characteristics, and appearance properties.
Repair Material Categories
Category 1: Zinc-Rich Paints
Zinc-rich paints consist of high concentrations of metallic zinc particles (typically 65-95% zinc by weight) suspended in organic or inorganic binders:
Organic Zinc-Rich Paints:
- Zinc particles in organic resin binders (epoxy, urethane, acrylic)
- Application by brush, roller, or spray
- Air-dry or catalyzed curing
- Easier application than inorganic types
- Slightly reduced corrosion protection compared to inorganics
Inorganic Zinc-Rich Paints:
- Zinc particles in silicate binders (ethyl silicate or water-based silicates)
- Chemical cure through silicate polymerization
- Superior corrosion protection approaching metallic zinc performance
- More demanding application requirements
- Sensitive to application conditions (temperature, humidity, substrate preparation)
Protection Mechanism:
Zinc-rich paints provide galvanic (cathodic) protection similar to hot-dip galvanizing. The high zinc content enables metallic zinc particles to provide sacrificial anodic protection to exposed steel at coating defects or damage sites. As zinc corrodes preferentially, it protects adjacent steel through electrochemical action.
Advantages:
- Readily available from multiple suppliers
- Simple application requiring minimal specialized equipment
- Suitable for field application in diverse environments
- Effective for small to moderate damage areas
- Lower material and application costs compared to alternatives
Limitations:
- Appearance differences from hot-dip galvanizing
- Thinner protection compared to metallizing or solders
- Organic-based formulations may have limited high-temperature resistance
- Multiple coats often required for adequate thickness
- Surface preparation critical for adhesion
Category 2: Zinc-Based Solders
Zinc solders are metallic zinc alloy sticks applied molten to damaged areas:
Composition: Typically zinc alloyed with small amounts of aluminum, tin, or other elements to modify melting point and flow characteristics
Application Method:

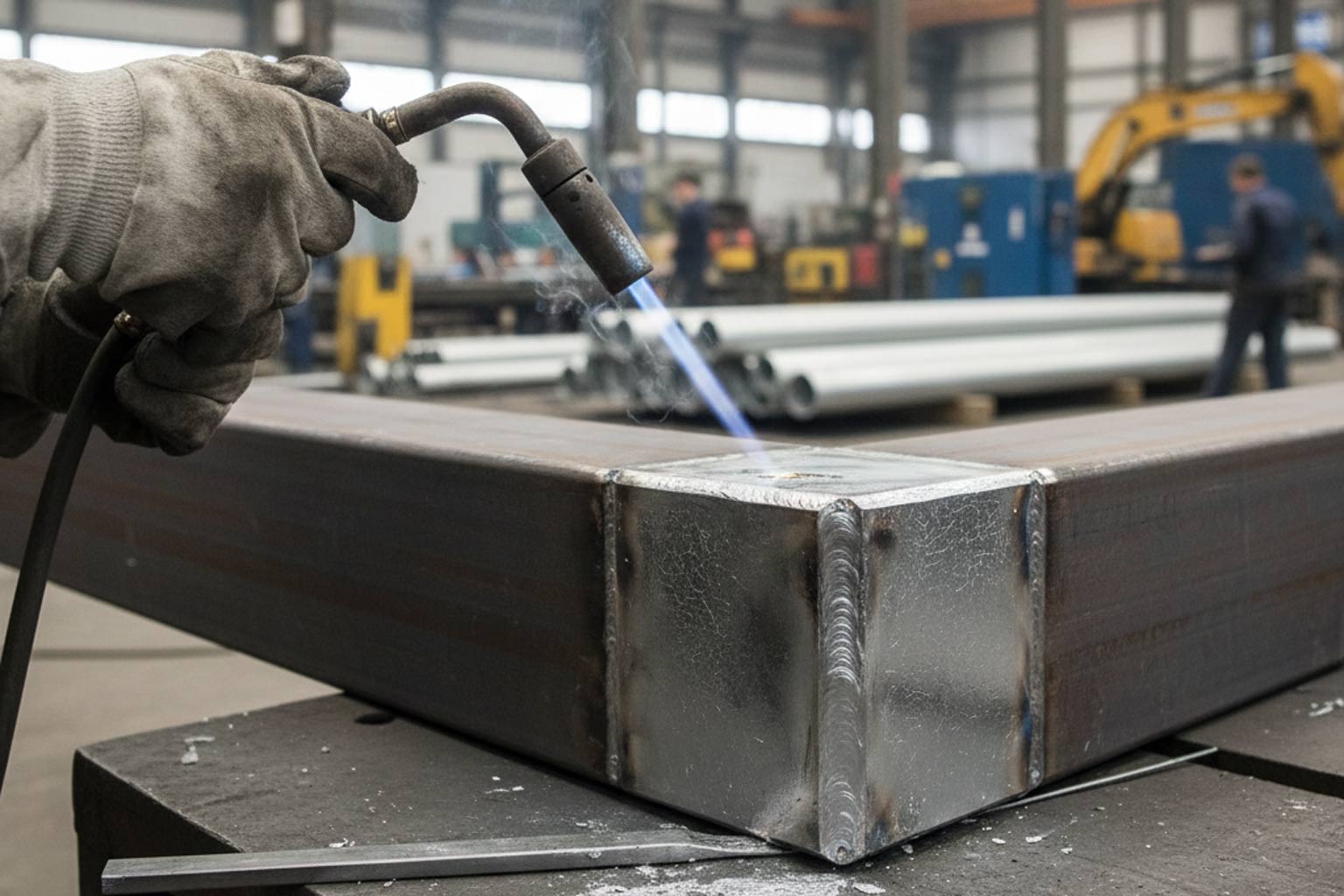

- Heat damage area with propane or oxy-fuel torch
- Apply solid zinc solder stick to heated steel
- Solder melts and flows onto steel surface
- Solidification forms metallic zinc layer
Protection Mechanism:
Solders create essentially pure metallic zinc repair coating providing galvanic protection identical to hot-dip galvanizing. The metallurgically bonded zinc maintains intimate contact with steel substrate.
Advantages:
- Excellent appearance match to hot-dip galvanizing
- Metallic zinc provides authentic galvanic protection
- Durable, abrasion-resistant repair
- Single application achieves adequate thickness
- Weathers naturally matching base galvanizing
Limitations:
- Requires heat application (torch)
- Skill-dependent application technique
- Safety concerns from open flame use
- Difficult application on complex geometries or overhead work
- Limited practical size for repair areas (small to moderate damage)
- Higher material cost than zinc-rich paints
Category 3: Zinc-Spray Metallizing (Thermal Spray Zinc)
Thermal spray processes deposit molten or semi-molten zinc particles onto prepared surfaces:
Arc-Spray Process:
- Two zinc wires fed through electric arc
- Arc melts wire tips
- Compressed air atomizes and propels molten zinc droplets
Flame-Spray Process:
- Zinc wire or powder fed through oxy-fuel flame
- Combustion heat melts zinc
- Compressed air propels molten particles
Application Characteristics:
Metallizing produces coating thicknesses of 4-12+ mils in single pass, substantially thicker than achievable with zinc-rich paints. The deposited zinc forms mechanically interlocked coating with some metallurgical bonding at contact points.
Advantages:
- Excellent appearance match to galvanizing
- Thick, durable metallic zinc coating
- Authentic galvanic protection mechanism
- Suitable for large damage areas
- Weathers naturally identical to base galvanizing
- Can achieve coating thickness exceeding original galvanizing
Limitations:
- Requires specialized equipment (arc-spray or flame-spray gun, power supply, air compressor)
- Equipment cost limits accessibility for small repair volumes
- Skilled operator requirement
- Surface preparation critical (typically blast cleaning required)
- Overspray control and containment necessary
- Higher application cost than simpler methods
Natural Weathering of Galvanized Coatings
Understanding how galvanized coatings weather naturally informs repair material selection for appearance-critical applications:
Initial Galvanizing Appearance
Freshly galvanized steel exhibits bright, metallic appearance with characteristic features:
Spangled Finish: Zinc crystallization patterns creating visible zinc crystal boundaries in distinctive geometric patterns
Non-Spangled Finish: Uniform bright metallic gray appearance without visible crystallization pattern (achieved through specific cooling techniques or zinc alloy additions)
Bright Metallic Reflectivity: Fresh zinc surfaces show substantial light reflection creating shiny appearance
Atmospheric Weathering Process
Exposure to atmospheric conditions initiates progressive surface weathering:
Initial Oxidation (Hours to Days): Free zinc eta layer at coating surface oxidizes rapidly forming thin zinc oxide film. This initial oxidation slightly dulls surface reflectivity while maintaining generally bright appearance.
Zinc Hydroxide and Carbonate Formation (Weeks to Months): Zinc oxide reacts with atmospheric moisture and carbon dioxide forming zinc hydroxide [Zn(OH)₂] and zinc carbonate [ZnCO₃]. These stable corrosion products build progressively thicker patina layers.
Mature Patina Development (6 Months to 2 Years): Continued atmospheric exposure produces characteristic matte gray patina—a stable, protective layer of zinc corrosion products. Surface reflectivity decreases substantially as the textured, non-crystalline patina layer scatters light rather than reflecting specularly.
Patina Coloration Factors:
Final patina color varies with environmental conditions:
- Rural/Suburban: Light gray to medium gray
- Industrial/Urban: Darker gray from incorporated soot and particulates
- Marine/Coastal: Light to medium gray, sometimes with brownish tones from incorporated iron compounds
Weathering Timeline:
Environmental aggressivity affects weathering rate:
- Dry, low-pollution environments: 12-24 months to mature patina
- Moderate humidity, urban: 6-12 months to mature patina
- High humidity, industrial/marine: 3-8 months to mature patina
Repair Material Appearance Considerations
Appearance compatibility between repair materials and base galvanizing depends on product selection and weathering timeframe:
Zinc-Based Solders and Metallizing: Natural Match
Both zinc solders and thermal spray zinc produce essentially pure metallic zinc repairs exhibiting appearance virtually identical to fresh hot-dip galvanizing:
Initial Appearance: Bright metallic zinc matching newly galvanized finish
Weathering Behavior: Repair areas weather through identical chemical processes as the base galvanizing, developing matching patina coloration and texture
Long-Term Appearance: After complete weathering (6-24 months depending on environment), repaired areas become essentially indistinguishable from surrounding galvanizing
Visual Integration: The natural appearance match makes zinc solders and metallizing optimal choices when aesthetic uniformity is prioritized, particularly for architectural applications or visible structural elements
Zinc-Rich Paints: Appearance Variables
Zinc-rich paints exhibit more variable appearance behavior depending on formulation:
Shiny/Bright Zinc-Rich Paints:
Some zinc-rich paint formulations incorporate metallic flake pigments or bright zinc powder producing initially shiny, metallic appearance approximating fresh galvanizing.
Weathering Behavior:
- Organic binders in paint do not weather identically to metallic zinc
- Paint film maintains relatively bright appearance indefinitely
- As base galvanizing weathers to matte gray, bright paint repairs become increasingly conspicuous
- Long-term appearance: Permanent visual contrast between bright paint and weathered gray galvanizing
Application Scenarios: Bright zinc-rich paints suit situations where repair occurs on newly galvanized structures that will remain indoors or otherwise protected from significant weathering. The bright appearance matches fresh galvanizing initially, and both surfaces age together in benign environments.
Matte/Weathered Gray Zinc-Rich Paints:
Specialty zinc-rich paint formulations intentionally incorporate matte pigments and binders producing gray, non-reflective finish approximating weathered galvanizing appearance.
Weathering Behavior:
- Initial application creates gray appearance contrasting with bright fresh galvanizing
- As base galvanizing weathers over 6-24 months, it transitions toward gray patina color
- Paint repairs maintain similar gray tone throughout
- Long-term appearance: Increasing appearance uniformity as galvanizing weathers to match initially gray paint
Application Scenarios: Weathered-appearance zinc-rich paints are optimal for outdoor structures exposed to normal atmospheric weathering. Initial appearance disparity (gray paint on bright galvanizing) gradually resolves as weathering progresses, achieving acceptable long-term visual uniformity.
Repair Material Selection Decision Framework
Selecting appropriate repair materials requires evaluating multiple factors:
Damage Size and Quantity
Small, Isolated Damage (<1 square inch per location, few locations):
- Zinc-rich paint optimal: Simple application, adequate protection, economical
- Zinc solder acceptable: Good appearance match if operator skill available
Moderate Damage (1-10 square inches per location, multiple locations):
- Zinc-rich paint practical for most applications
- Zinc solder suitable for visible locations prioritizing appearance
- Metallizing warranted if appearance-critical and damage is extensive enough to justify equipment mobilization
Large Damage Areas (>10 square inches, numerous locations):
- Metallizing becomes economically competitive due to efficiency
- Zinc-rich paint remains viable but requires substantial labor
- Consider whether damage extent warrants investigating root cause
Aesthetic Importance
High Visibility, Appearance-Critical Applications:
- Architectural metalwork
- Building facades
- Interior installations
- Equipment with prominent visibility
Preferred Repair Materials:
- Zinc metallizing (immediate appearance match, permanent)
- Zinc solders (good appearance match, economical)
- Weathered gray zinc-rich paint (acceptable after base galvanizing weathers)
Functional Priority, Appearance Secondary:
- Infrastructure components
- Industrial equipment
- Concealed structural members
- Utility installations
Acceptable Repair Materials:
- Any ASTM A780-compliant zinc-rich paint
- Material selection based on cost, availability, and application convenience
Application Conditions and Constraints
Field Application Environment:
Favorable Conditions (Dry, Moderate Temperature, Good Access): All repair material types suitable with appropriate applicator expertise
Challenging Conditions (Cold, Humid, Limited Access, Overhead Work):
- Zinc-rich paints offer greatest application flexibility
- Solders and metallizing face increased application difficulty
Site Restrictions:
Open Flame Prohibited (Refineries, Chemical Plants): Eliminates zinc solders; forces choice between zinc-rich paints or cold-process metallizing systems
Confined Spaces: Overspray from metallizing may be impractical; zinc-rich paints or solders preferred
Applicator Skill and Equipment Availability
Zinc-Rich Paints:
- Minimal specialized skill required
- Equipment readily available (brushes, rollers, spray equipment common to painting)
- Training needs minimal
Zinc Solders:
- Moderate skill requirement (torch handling, molten metal application technique)
- Equipment moderately specialized (torch, solder sticks)
- Training beneficial but achievable through brief instruction
Zinc Metallizing:
- High skill requirement (surface preparation, spray technique, equipment operation)
- Specialized equipment (arc-spray or flame-spray system: $5,000-$30,000 investment)
- Formal training essential for quality results
Equipment availability and applicator expertise often dictate practical material selection regardless of other preferences.
Surface Preparation Requirements
All repair materials require appropriate surface preparation for effective adhesion and performance:
General Preparation
Cleaning: Remove oil, grease, dirt, and loose corrosion products from repair area and surrounding coating
Profile Development:
- Zinc-rich paints: Light abrading or sweep blasting to roughen surface
- Zinc solders: Clean bare steel or lightly roughened zinc
- Metallizing: White metal blast cleaning to SSPC-SP 5 or near-white SSPC-SP 10
Preparation Extent
Extend surface preparation beyond the actual damage area to ensure repair material "feathers" onto sound surrounding coating rather than creating sharp boundaries.
Application Best Practices
Timing
Execute repairs promptly after damage identification. Exposed steel begins corroding within hours in humid environments. Red rust formation before repair complicates surface preparation and may require more aggressive cleaning.
Environmental Conditions
Temperature: Follow manufacturer specifications (typically 40-100°F for paints, wider range for solders/metallizing)
Humidity: Limit paint application during high humidity or precipitation
Wind: Control overspray and ensure adequate film build despite wind effects
Quality Verification
Visual Inspection: Confirm complete coverage of damaged areas with no holidays or thin spots
Adhesion: Verify repair material bonds adequately to substrate (scrape test for initial assessment)
Thickness: Check coating thickness with magnetic gauge when practical, ensuring adequate build for protection
Long-Term Performance Expectations
Properly applied ASTM A780-compliant repairs provide corrosion protection approaching hot-dip galvanizing performance:
Zinc-Rich Paints: Typical 10-20+ year protection in moderate environments with 3-6 mils dry film thickness
Zinc Solders: Performance essentially equivalent to hot-dip galvanizing for repair area
Zinc Metallizing: Performance matching or exceeding hot-dip galvanizing when 4-8+ mils thickness achieved
Cost Considerations
Repair material economics vary substantially:
Zinc-Rich Paints:
- Material cost: $30-80 per gallon (covers 100-400 square feet depending on surface and thickness)
- Application cost: Labor-intensive for small areas; economical for widespread light damage
- Total cost: $0.50-5.00 per square inch typical
Zinc Solders:
- Material cost: $15-30 per pound of solder
- Application cost: Moderate (requires skilled operator, torch fuel)
- Total cost: $2-10 per square inch typical
Zinc Metallizing:
- Equipment cost: $5,000-30,000 (amortized across many projects)
- Material cost: $3-8 per pound of zinc wire
- Application cost: High for small quantities; becomes economical at scale
- Total cost: $5-20 per square inch for small areas; $1-5 per square inch at production scale
Specification Language Recommendations
Project specifications should clearly address repair materials and procedures:
Functional Approach: "Damaged or uncoated areas shall be repaired per ASTM A780 using zinc-rich paint, zinc-based solder, or zinc-spray metallizing as appropriate for damage size and location. Repair material selection shall be approved by Engineer."
Appearance-Specific Approach: "For visible architectural elements, coating repairs shall use zinc-spray metallizing or weathered-appearance zinc-rich paint to ensure long-term appearance compatibility with base galvanizing."
Performance Approach: "Repair materials shall provide galvanic protection to exposed steel. Zinc-rich paints shall contain minimum 65% zinc by weight. Minimum repair coating thickness: 3.0 mils for paints, 4.0 mils for metallizing."
Damaged hot-dip galvanized coatings require timely repair using ASTM A780-compliant materials including zinc-rich paints, zinc-based solders, or zinc-spray metallizing to maintain corrosion protection continuity. For appearance-critical applications, zinc-based solders and thermal spray zinc metallizing provide optimal appearance compatibility by creating metallic zinc repairs that weather naturally through identical atmospheric reactions as the base galvanizing, achieving virtually indistinguishable appearance after 6-24 months of environmental exposure. Zinc-rich paints offer more variable appearance outcomes depending on formulation, with bright metallic paints maintaining permanent visual contrast against weathered galvanizing while matte weathered-gray formulations progressively blend as fresh galvanizing develops natural gray patina. Material selection requires balancing damage size and quantity, aesthetic importance, application environment constraints, available applicator expertise and equipment, and economic considerations. Zinc-rich paints provide greatest application flexibility and economy for routine small-area repairs regardless of appearance requirements, while zinc solders suit moderate damage on visible components where appearance matters, and thermal spray metallizing becomes practical for extensive damage on appearance-critical applications where equipment investment and specialized operator expertise are justified. Proper surface preparation, adherence to manufacturer application specifications, and quality verification ensure repair durability approaching hot-dip galvanizing performance, protecting exposed steel and preserving the galvanized system's long-term protective capacity while achieving acceptable visual integration through natural weathering or deliberate appearance-compatible material selection. See the original AGA resource on Natural Weathering and Zinc Repairs for additional context.
